Multi-duty channel system (MT)

More flexible, easier-to-use strut channel and girder system for installing virtually all pipe supports, ventilation ducts and cable trays in mildly corrosive environments

MT-10 L-profile Ultra-light-duty, L-profile channel

MT-15 L-profile Ultra-light-duty, L-profile channel, for indoor use

MT-20 Profile Light-duty profile channel for trapezes, for indoor use

MT-30 Strut channel Strut channel, for indoor use

MT-40 T Strut channel Strut channel for trapezes, for indoor use

MT-40 Strut channel Strut channel, for indoor use

MT-50 Strut channel Strut channel, for indoor use

MT-60 Strut channel Strut channel, for indoor use

MT-40D Double strut channel Back-to-back double strut channel

MT-BR-30 Cantilever arm Cantilever arm with MT-30 strut channel

MT-BR-40 Cantilever arm Cantilever arm with MT-40 strut channel

MT-BR-40D Cantilever arm Cantilever arm with back-to-back MT-40 strut channels

MT-C-L1 Corner angle Angle bracket for assembling light-duty strut channel structures

MT-C-L2 Corner angle Elongated angle bracket for assembling strut channel structures

MT-C-T/1 Transverse connector Wing fitting for assembling strut channel structures

MT-C-LL1 Angle connector Right-angle connector for assembling strut channel structures

MT-C-LL2 Angle connector Right-angle, elongated connector for assembling strut channel structures

MT-C-T/2 Tee splice connector Node for assembling strut channels in a T shape

MT-C-T A Corner bracket Adjustable angle bracket for assembling strut channels in a T shape

MT-C-T 3D/2 Wing fitting Double wing fitting for connecting three strut channels in a 3D structure

MT-C-T 3D/3 Wing fitting Triple wing fitting for connecting four strut channels in a 3D structure

MT-ES-40 Splice clevis Splice connector for coupling MT strut channels end-to-end (MT-40, 50, 60, 40D)

MT-B-L Light-duty baseplate for strut channels Base connector for anchoring light-duty strut channel structures to concrete or steel

MT-B-T Light-duty baseplate Base connector for anchoring light-duty strut channel structures to concrete or steel

MT-B-O2 Baseplate for strut channels Base connector for anchoring strut channel structures to concrete or steel

MT-B-O2B 3D-load baseplate Base connector for anchoring strut channel structures under 3D loading to concrete or steel

MT-B-O4 3D-load baseplate Base connector for anchoring strut channel structures under 3D loading to concrete and steel or steel

MT-AB A Adjustable brace fitting Adjustable brace for anchoring bracing of MT-40 and MT-50 strut channel structures to concrete

MT-AB-L 45 Angle brace 45-degree angle brace for anchoring bracing of MT-40 and MT-50 strut channel structures to concrete

MT-AB-LL2 45 45-degree angle bracket 45-degree angle bracket for bracing MT-40 and MT-50 strut channel structures

MT-AB-G T OC Adjustable brace fitting Adjustable brace fitting for assembling MT girder structures, for outdoor use with low pollution

MT-TLB Twist-Lock bolt Hexagon bolt for use with Twist-Locks when assembling strut channel structures

MT-EC-20 Strut end cap Channel end cap for MT-20 strut channels

MT-EC-30 Strut end cap Channel end cap for MT-30 strut channels

MT-EC-40/50 Strut end cap Channel end cap for MT-40 and MT-50 strut channels

MT-EC-60 Strut end cap Channel end cap for MT-60 strut channels

MT-EC-70 Girder end cap Channel end cap for MT-70 girders

MT-EC-80 Girder end cap Channel end cap for MT-80 girders

MT-EC-90 Girder end cap Channel end cap for MT-90 girders

MT-EC-100 Girder end cap Channel end cap for MT-100 girders

MT-TL Twist-Lock channel nut Nut for attaching media to MT strut channels

MT-FP Threaded strut plate Fixation plate with threaded hole for attaching media to strut channels

MT-FA-C Strut fixation angle Fixation angle for attaching media to strut channels

MT-ZW OC Flat washer Flat washer for fastening pipe rings to strut trapeze, for outdoor use with low pollution

MT-FPT Threaded strut plate Fixation plate with threaded hole for attaching media to strut channels

MT-TL Twist-Lock channel nut Nut for attaching media to MT strut channels

MT-ES-60 Splice clevis Splice connector for coupling MT-60 strut channels end-to-end

MT-CT-H4 Strut splice plate Flat channel connector used as a longitudinal extender for MT channels

MT-CT-T Strut tee plate Flat T channel connector for fastening two MT strut channels together

MT-CT-H5 Strut cross plate Flat cross channel connector for fastening three MT channels together

MT-CT-H2 Flat strut fitting Flat T channel connector for fastening two MT channels together

MT-CC-40/50 U-Fitting Clamp for channel-to-channel or channel-to-girder cross-connections with MT strut channel

MT-CC-60 U-Fitting Clamp for channel-to-channel or channel-to-girder cross-connections with MT strut channel

MT-CC-40D U-Fitting Clamp for channel-to-channel or channel-to-girder cross-connections with MT strut channel

MT-CC-BC 40/50 U-Fitting Clamp for cross-connection of one MT strut channel to concrete

MT-CC-BS 40/50 U-Fitting Clamp for cross-connection of one MT strut channel to steel

MT-FTR-GS End plate Plate end cap for longitudinal suspension of MT-70 girders using threaded rod

MT-FTR-GSW Washer Serrated washer

MT-C-LS Long span connector Strut channel connector for assembling and bracing modular support structures with longer spans

MT-AB-LS Long span angular bracing Angle brace for modular support structures with longer spans

MT-FTR-LS Long span threaded rod connector Strut channel connector for bracing modular support structures with longer spans

Back to products ()

Compare

Products ()

Get the support you need with MT

A single seamless solution for your installation requirements

Easy to design and simple to assemble, Hilti’s MT system is the only answer you’ll ever need for virtually all your installation support structures. Whether you are planning MEP installations such as pipe and cable tray supports, or access platforms and integrated floors for energy and industry projects, you’ll need just the one versatile, lightweight, and highly efficient system.

Shop now

Do more with less

A cost-optimized solution for the full range of supports

With Hilti’s seamless MT system, we’ve got almost all your loading scenarios covered. This solution, which comes with corrosion resistance including zinc magnesium coating, is ideal for light utilities such as air ducts and communication cables as well as for cable trays and heavier cable ladders, and even for larger non-critical piping or heavier mechanical equipment. As a result, planning, managing and assembling your metal framing and support structures is easier than ever. In addition, by choosing MT, you can seamlessly and simply combine all your MEP utilities in a single support structure that has been engineered for optimal efficiency.

Making design simpler

Take the headache out of your planning

To help streamline design of your supports, Hilti has developed a powerful new range of dedicated software solutions. With PROFIS Modular Supports Engineering, you can create models of your supports, calculate them and export the final solution to 2D and 3D design platforms. Hilti also offers plug-ins for standard structural engineering tools (STAAD.Pro), and plant design modelling tools (Smart 3D). You’ll also have access to BIM/CAD library content and Revit families thus enabling the integration of the MT system design into your current workflows. Meanwhile, Hilti engineers are on hand to provide expert assistance at any time — helping simplify even larger and more complex projects.

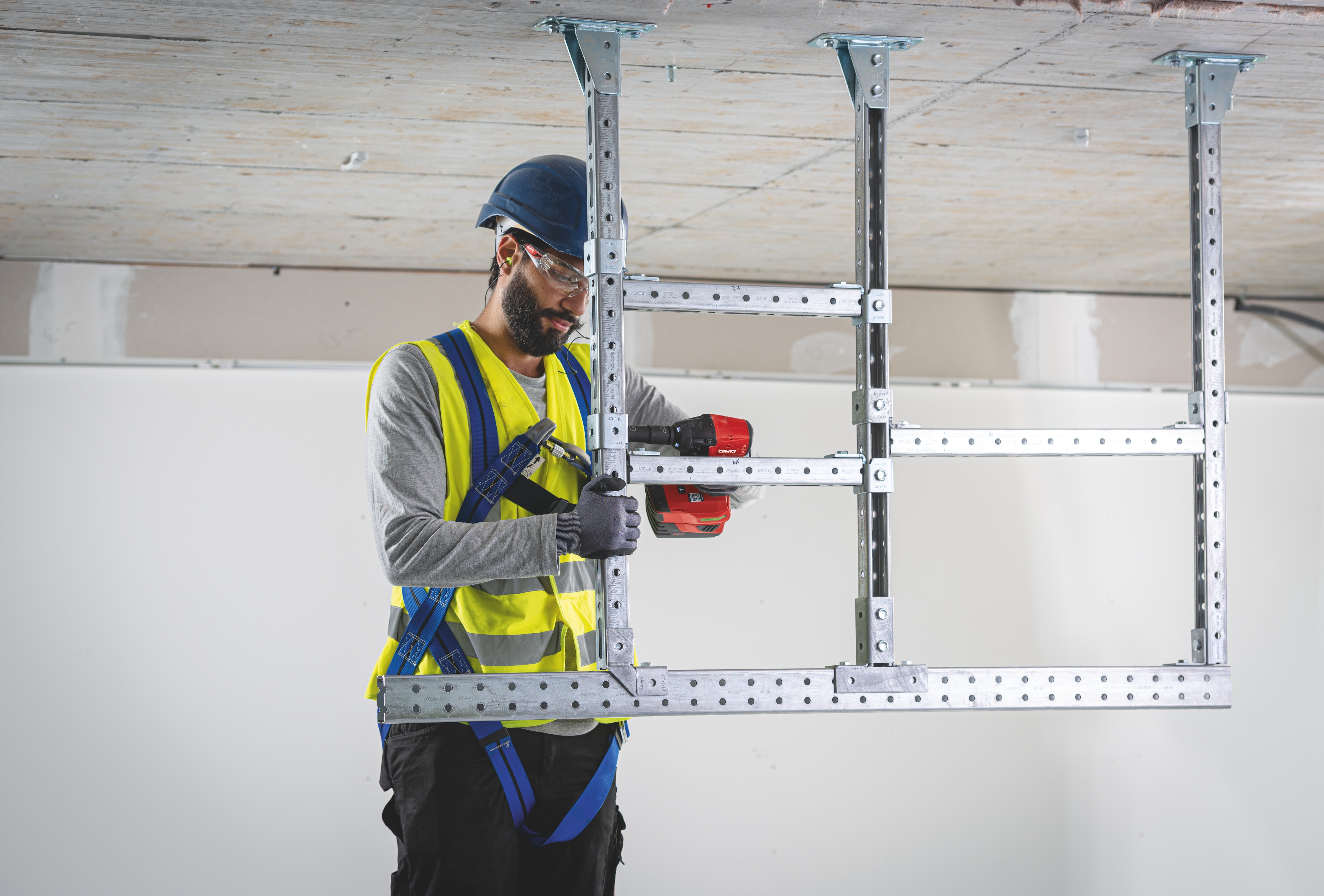

MT system components can be connected with one hand thanks to thread-forming bolts..

Seamless assembly

For faster, safer and easier installation

Installation of MT girders, strut channels and other components is intuitive and seamless. Connect channels to girders with one hand thanks to thread forming bolts that eliminate the need for nuts and washers. To simplify installation, Hilti has also developed innovative Twist-Lock connectors that are inserted into the strut channel with a one-handed “push and twist” motion. When installed, they cut a groove into the channel allowing for rapid and highly accurate placement of components. The Twist-Locks do not slip before final torquing and can be repositioned later. What’s more, in some cases you won’t need connectors at all thanks to direct girder-on-girder or strut-on-girder connectivity. Even when utilizing the full range of MT components, you’ll enjoy a streamlined, system designed to be as multipurpose as possible.

Customized solutions

Cutting, kitting and pre-assembly services

Hilti’s MT system can be cut and assembled on the jobsite with ease. It is completely flexible so that you can make adjustments in the field and save on costly rework — and of course it eliminates the need for welding. Alternately, Hilti can support your project with cutting, kitting and pre-assembly services. Contact us today to find out more.

Designed to last

Cutting-edge corrosion resistance

The MT system is designed to provide optimal corrosion resistance for both indoor and outdoor exposure. For indoor exposure, you’ll benefit from Hilti’s established high-quality solution where profiles are Sendzimir galvanized and connectors and baseplates are electro-galvanized. The outdoor solution combines hot-dip galvanized zinc (for components such as connectors and baseplates) and zinc magnesium (ZM technology) for profiles. ZM profiles conform to the ASTM A1046 and EN 10346 standards. With ZM technology, you’ll enjoy benefits including robustness and longevity, increased environmental friendliness and greater cost optimization. Since most of the steel in modular support structures is within the profiles, leveraging the benefits of ZM in this manner makes sense.
