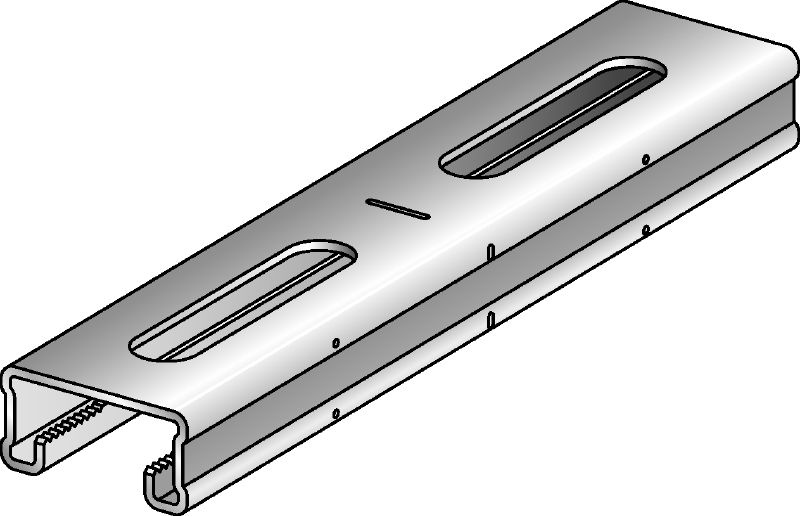

MQ-21-R C-Channel profile

Stainless steel (A4) C-Channel profile for light-duty applications

Height: 20.6 mm
Material thickness: 2 mm
Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L

Customers also searched for pipe supports, cable tray supports, ventilation duct supports, fastening supports or installation channel.

Technical Data

Height

20.6 mm

Material thickness

2 mm

Material composition

Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L

Surface finish

Outdoor Plus - Stainless Steel

Environmental conditions

Outdoor high pollution (C4 – high / C5)

Documents

Features & Applications

Features

C-profile with serrated edges – for higher pull-out and shear capacity
Optimised hole pattern – for more flexible attachment options
Pre-marked dimensions – for rapid installation, assembly and cutting
Versatile and flexible due to modular channel system
Sound insulation elements available for all MQ installation channels

Applications

Recommended for installation in industrial atmospheres or areas with heavy condensation
Modular support systems for piping
Modular support systems for air ducts and cable trays
Modular support systems for 3D structures
Wall-mounted installation

For approval or certificate information, please see individual items.
