MT-70 OC Box profile

LCG003283_v1 (217079)

LCG003483_v1_cropped (224146)

10_IS_MT-70_0001 (218619)

LCG003283_v1 (217079)

LCG003483_v1_cropped (224146)

10_IS_MT-70_0001 (218619)

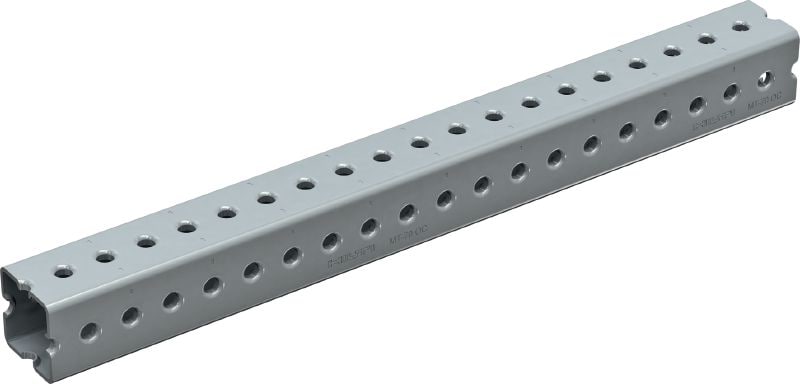

heavy-duty box profile for use with MT-TFB components in outdoor environments

Material composition: S350 or better steel
Surface finish: Outdoor Coated - ZM
Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Technical Data

10_IS_MT-70_0001 (218619)

Material composition

S350 or better steel

Surface finish

Outdoor Coated - ZM

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

Economical – high load/weight ratio make MT girders an efficient alternative to welding for virtually any heavy-duty MEP supports and modular structures
Complexity kept to the minimum – optimising logistical and on-site operations, as well as providing simplicity in installation
Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
Simpler to instal – compatible with the innovative MT thread-forming bolt, enabling the use of a wide range of MT connectors and baseplates and avoiding the need for nuts
Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

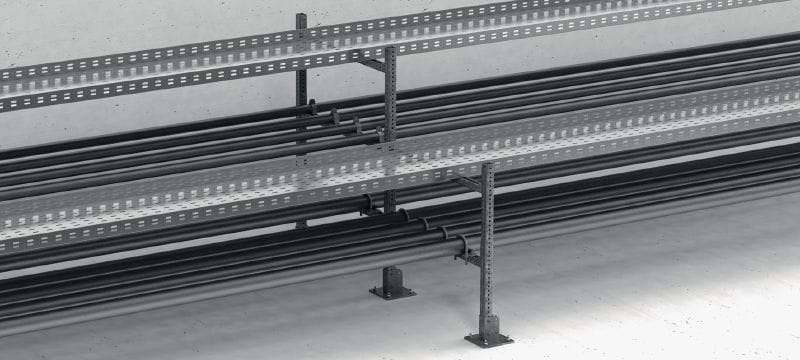

Floor-mounted MEP support structures, such as goal post-type strut framing
Ceiling-mounted MEP support structures, such as suspended strut trapeze frames
Wall-mounted cantilever brackets for heavier pipes
Modular 3D framing to support pipes, ducts and cable trays
Suitable for use in moderately corrosive environments

For approval or certificate information, please see individual items.
