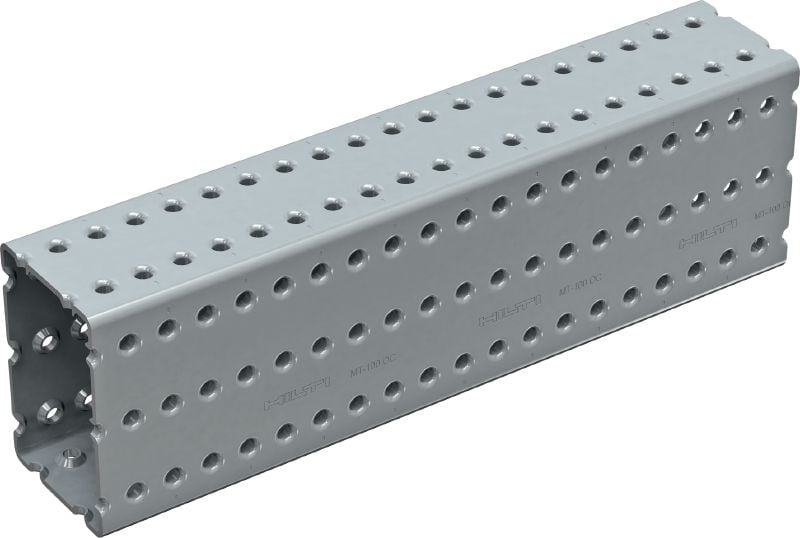

MT-100 OC Box profile

Box profile MT-100 OC #2268491

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003286_v1 (217076)
13_IS_MT-100_0001 (218622)

heavy-duty box profile for use with MT-TFB components in outdoor environments

  • Material composition: S350 or better steel
  • Surface finish: Zinc-Magnesium - for outdoor use
  • Material thickness: 4 mm

Choose options

Pack size
  • 6 m
 Product options
Quantity
Packs
Total Pieces
6
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
AED 11,308.57
AED 1,884.76 / 1 m

Technical Data

Details
Technical illustrations
Material composition
S350 or better steel
Surface finish
Zinc-Magnesium - for outdoor use
Material thickness
4 mm
Weight
90.58 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Approval document
Certificate
Documentation
Sustainability Documentation
pdf ETA-23-0105 Static Fire MT Channels, English, French [ 4.4 MB ]

Features & Applications

Features

  • Economical – high load/weight ratio make MT girders an efficient alternative to welding for virtually any heavy-duty MEP supports and modular structures
  • Complexity kept to the minimum – optimising logistical and on-site operations, as well as providing simplicity in installation
  • Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
  • Simpler to instal – compatible with the innovative MT thread-forming bolt, enabling the use of a wide range of MT connectors and baseplates and avoiding the need for nuts
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

  • Floor-mounted MEP support structures for heavy loads and long spans
  • Ceiling-mounted MEP support structures for heavy loads and long spans
  • Wall-mounted cantilever brackets for ultra heavy-duty industrial pipes
  • Modular 3D framing to support ultra heavy-duty building services and pipework
  • Suitable for use in moderately corrosive environments
