TE 60-AVR Rotary hammer

TE 60 AVR (83901)
TE 60 AVR (4th Generation) (86105)
TE 60 AVR (4th Generation) (86112)
TE 60 AVR (4th Generation) (86108)
TE 60 AVR (4th Generation) (86013)
TE 60 AVR (4th Generation) (86103)

Versatile and powerful SDS Max (TE-Y) rotary hammer for concrete drilling and chiselling, with Active Vibration Reduction (AVR)

  • Weight according to EPTA Procedure 01/2003: 6.8 kg
  • Single impact energy: 7.8 J
  • Hammer drilling diameter range: 12 - 100 mm

Choose options

Product options
Quantity
Total Pieces
NaN
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
Price loading error occured

Please contact us

Technical Data

Weight according to EPTA Procedure 01/2003
6.8 kg
Single impact energy
7.8 J
Hammer drilling diameter range
12 - 100 mm
Optimum hammer drilling range
18 - 40 mm
Hammer drilling RPM
340 rpm
Full hammering frequency
3300 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiselling, Hammer drilling
Triaxial vibration value for hammer drilling into concrete (ah,HD)
10.5 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D, TE DRS-BK
Triaxial vibration for chiselling in concrete
9.1 m/s² 2
Dimensions (LxWxH)
486 x 115 x 273 mm
A-weighted emission sound power level
107 dB (A) 3
A-weighted emission sound pressure level
99 dB (A) 4
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)
  4. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • High versatility for a wide range of drilling and chiselling applications
  • Exceptionally high performance-to-weight-ratio
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

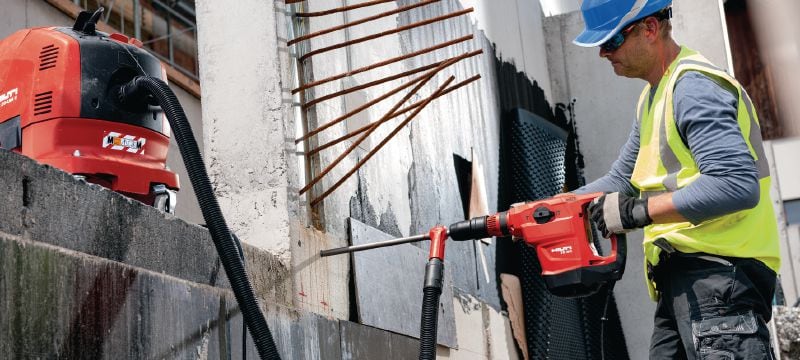

  • Optional DRS-Y dust removal system collects up to 95% of dust
  • Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite

Applications

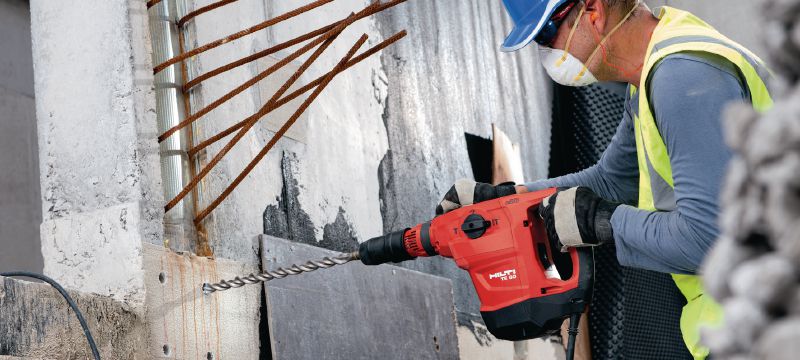

  • Drilling anchor and through-holes in concrete and masonry (recommended diameter range 18-80 mm)
  • Coring in masonry and concrete with TE-Y BK core bits up to 122 mm diameter
  • Coring in masonry with optional DD-TE-Y-DR adapter and DD-Y PCM core bits up to 122 mm diameter
  • Drilling anchor and through-holes in concrete and masonry (recommended diameter range 5/8" - 3 1/8")
  • Coring in masonry and concrete with TE-Y BK core bits up to 4-15/16" diameter

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
  • 3-month no-cost period after each paid repair
More information about Tool Services

Fleet Management

  • Individual labels and online visibility provide tool fleet transparency
  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
More information about Fleet Management

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 1-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
