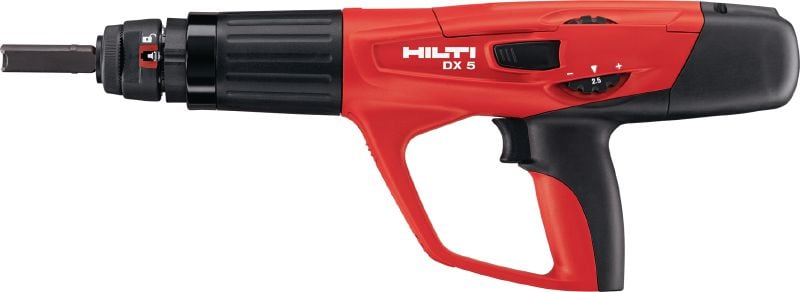

DX 5-GR Powder-actuated tool

Digitally enabled, fully automatic and high-productivity powder actuated tool for fastening gratings

  • Dimensions (LxWxH): 495 x 72 x 180 mm
  • Weight: 3.42 kg
  • Fastener intake: Threaded stud

Customers also searched for Grating installation.

Technical Data

Dimensions (LxWxH)
495 x 72 x 180 mm
Weight
3.42 kg
Fastener intake
Threaded stud
Fastener length range
25 - 40 mm
Cartridge type
.27 calibre short, 6.8/11 M10
Automatic piston return
Yes
Bluetooth
Yes
Hilti Connect
Yes
Power (max.)
325 J
Power regulation
Yes
Piston type
X-6-5-PGR

Documents

Features & Applications

Features

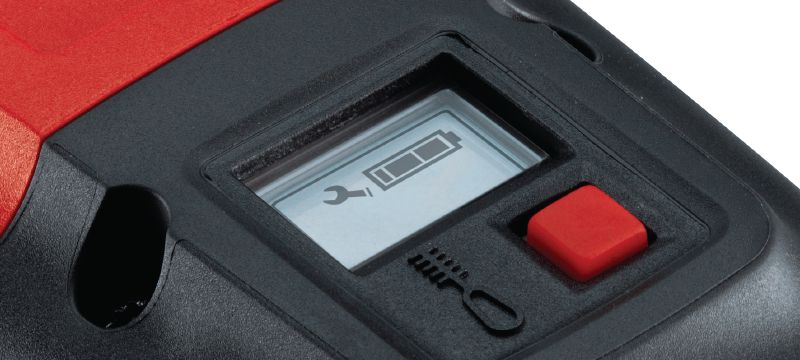

  • Smart tool that tells you when it needs cleaning or maintenance
  • Built-in connectivity with the Hilti Connect app – putting key tool data, how-to videos and technical support at the operator's fingertips
  • High productivity – fully automatic piston return and cartridge transport
  • Superb ergonomics and design with reduced recoil
  • Fast – up to 120 grating fastenings per hour by one user

Applications

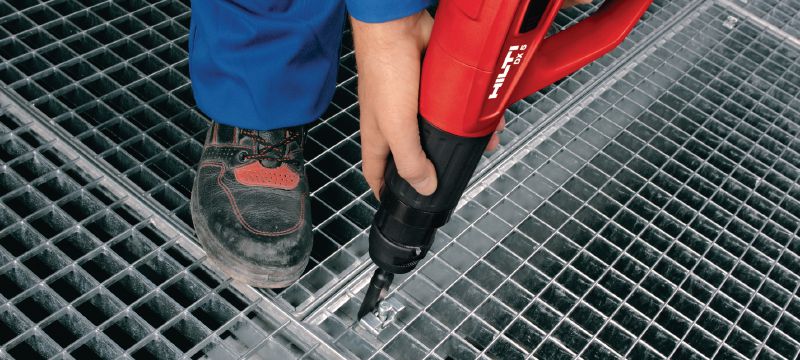

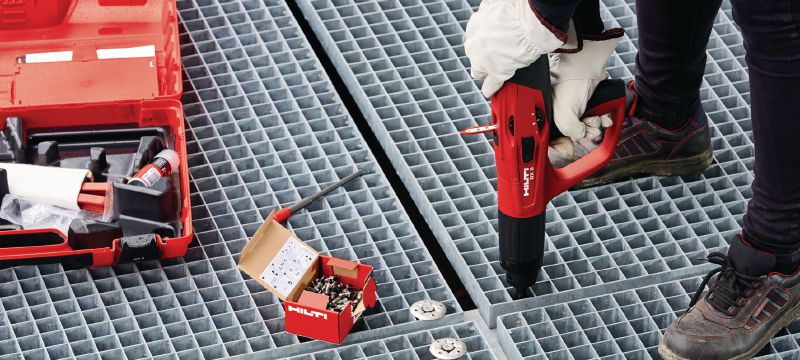

  • Fastening gratings to steel structures
  • Fastening diamond plates to steel structures

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 1-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
