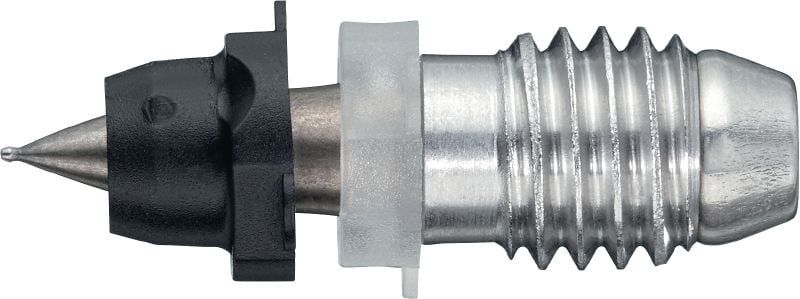

X-ST-GR M8 Threaded studs

Threaded stud X-ST-GR M8/5 P8 #2122209

Configurator
Technical Data
Documents
Features & Applications
Related Products
X-ST-GR M8/5 P8 (78038)
Grating

Threaded stud for grating and multi-purpose fastenings on steel in mildly corrosive environments

  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
  • Corrosion protection: Stainless steel A4(316) or equivalent
premium

Choose options

Thread size
  • M8
Thread length
  • 9 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
AED 4,884.94
AED 48.85
/
1 Piece

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Stainless steel A4(316) or equivalent
Environmental conditions
Outdoor with moderate concentration of pollution, Outdoor with low pollution, Indoor with temporary condensation, Dry indoor, Outdoor temporary applications
Material
Stainless steel A4 (or equivalent)
Thread diameter
8 mm
Length
25 mm
Point type
Ballistic point
Approvals
ABS, ICC-ES
Product class
Premium

Documents

Technical information
Approval document
Reference document
Documentation
Certificate
Operating Instruction
pdf X-ST-GR Data Sheet, English [ 1.6 MB ]
pdf Fastening on Steel - Installation Typicals, English [ 14.6 MB ]

Features & Applications

Features

  • Corrosion-resistant fastener, ideal for direct fastening on steel
  • Suitable for mildly corrosive environments
  • Part of a convenient powder-actuated fastening system that provides total mobility and independence from electric power supplies
  • No need to pre-drill
  • The fully-automatic DX 460 nailer drives up to 240 fasteners per hour

Applications

  • Fastening grating and checker plates in corrosive environments such as onshore installations, petrochemical facilities, power plants, etc.
  • Fastening light-duty electrical and mechanical components
  • Fastening cable trays and cable runs using channels or conduit clips
  • Fastening junction boxes, switchgear and instrumentation panels directly or using channels
