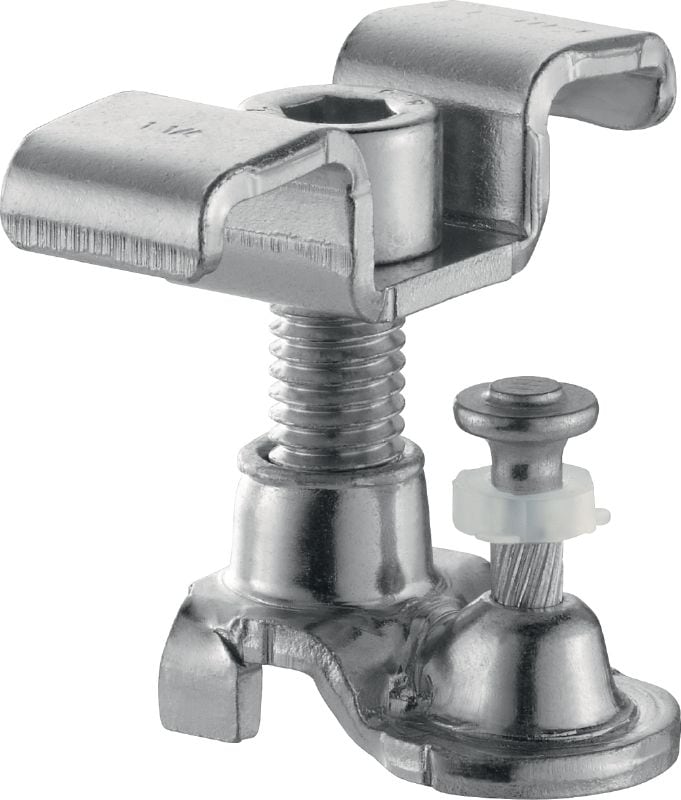

X-GR Grating clip with nail

Directly fastened grating fastener

  • Application: Grating
  • Approvals: ITB
  • For use with (tools): DX 460, DX 5, DX 6
premium

Customers also searched for Gratingsfastening gratingfastening grating corrosive environmentsindustrial fastening or direct fastening.

Choose options

Grating height
  • 25 - 30 mm
  • 27 - 32 mm
Grating width range
  • 23 - 38 mm
Corrosion protection
  • Duplex coating, equivalent to 45 µm hot-dip galvanised
Pack size
  • 100 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

From AED 4,849.92

Technical Data

Application
Grating
Approvals
ITB
For use with (tools)
DX 460, DX 5, DX 6
Corrosion protection
Duplex coating, equivalent to 45 µm hot-dip galvanised
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor temporary applications, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Minimum thickness of base material (steel)
4 mm
Product class
Premium

Documents

Features & Applications

Features

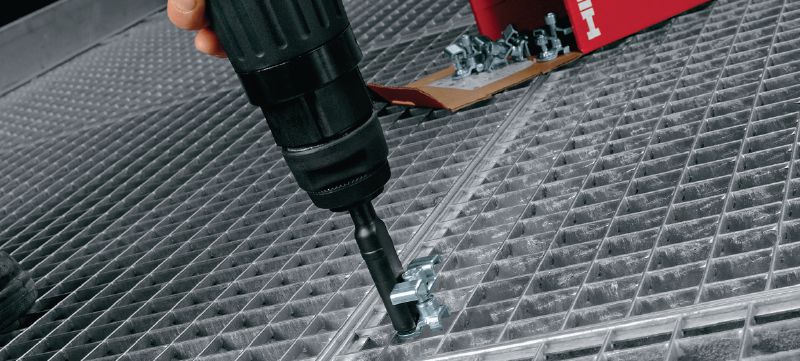

  • Preassembled saddle for increased productivity – up to 120 fasteners per hour by one user with the fully automatic DX 460-GR nailer
  • Two support legs provide 90° fastening for high application limit
  • High productivity – can help to significantly reduce time and costs overall
  • Duplex coating for greater corrosion protection
  • Removable fastener suitable for various grating heights

Applications

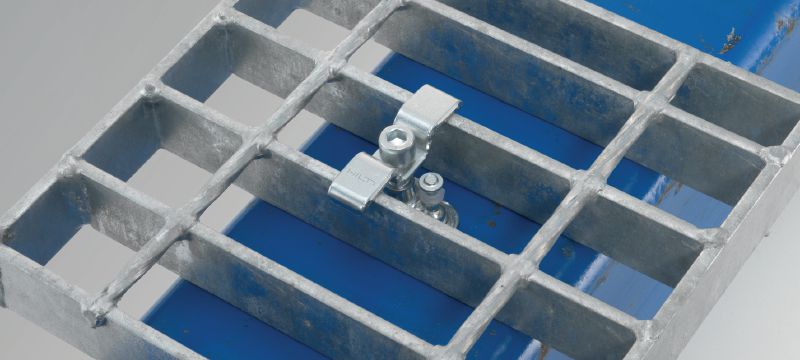

  • Fastening grating to steel structures in mildly corrosive environments

For approval or certificate information, please see individual items.
