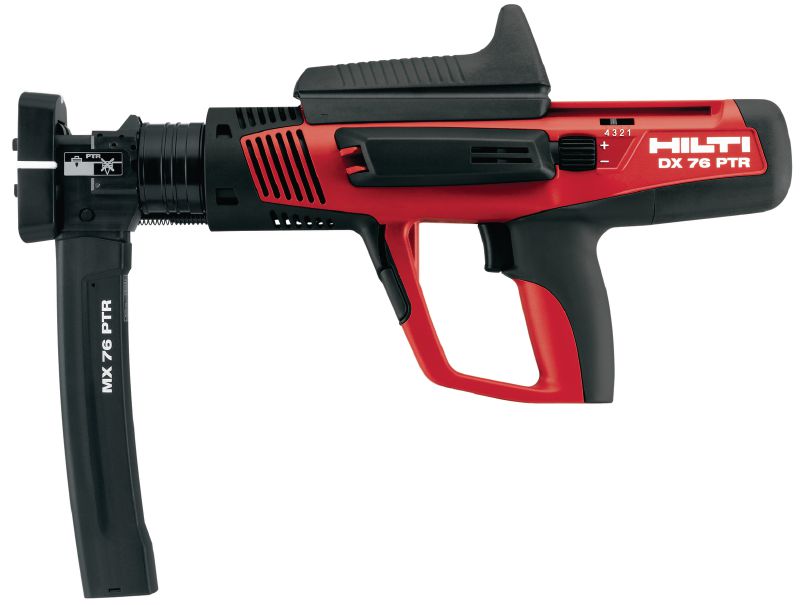

DX 76 PTR Powder-actuated tool

Semi-automatic, high-productivity, powder-actuated nailer for fastening metal decks

  • Dimensions (LxWxH): 464 x 104 x 352 mm
  • Weight: 4.37 kg
  • Fastener intake: Collated

Customers also searched for Heavy duty nailgunRoofing sheet nailerDecking nail toolNailgun or Steel nail tool.

Technical Data

Dimensions (LxWxH)
464 x 104 x 352 mm
Weight
4.37 kg
Fastener intake
Collated
Fastener length range
19 - 21 mm
Automatic piston return
No
Bluetooth
No
Hilti Connect
No
Power (max.)
563 J
Power regulation
Yes
Piston type
X-76-P-ENP-PTR

Documents

Features & Applications

Features

  • PTR also helps to deliver excellent fastening quality even on thin materials with a thickness of 3 mm or greater

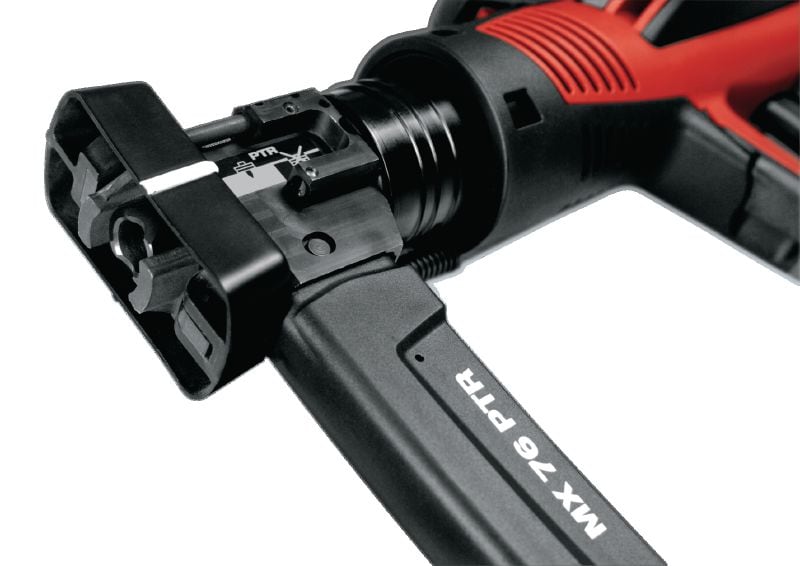

  • Fastener magazine and rugged design for more reliable, efficient and quicker operation
  • Drives fasteners at the average rate of 600 per hour
  • Easy assembly and disassembly for on-the-spot maintenance – no tools required
  • Advanced ergonomic design

Applications

  • Fastening composite metal decks to steel structures with a minimum thickness of 3 mm (1/4") for composite decking

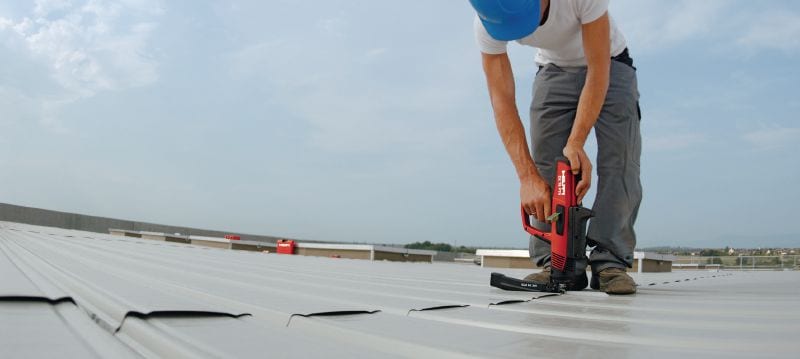

  • Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4") for roofing

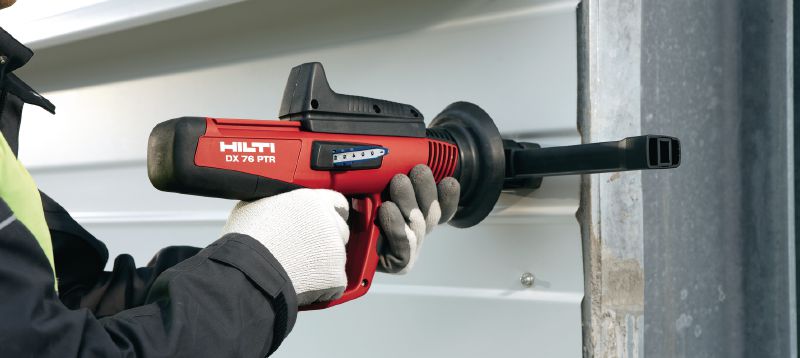

  • Fastening liner trays to steel structures with a minimum thickness of 6 mm (1/4") for siding
  • Fastening grating elements to steel structures using grating accessories

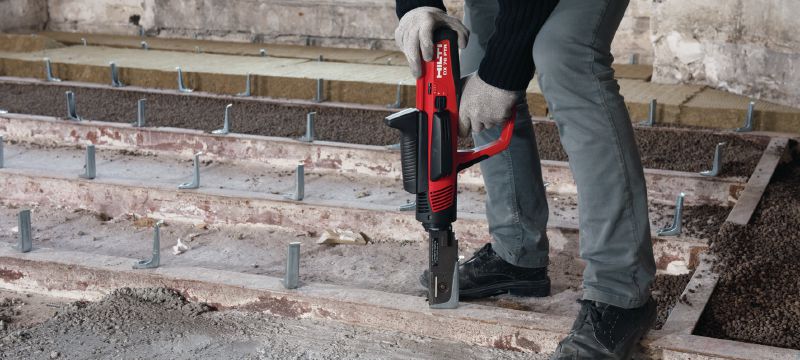

  • Fastening shear connectors on steel structures with HVB accessories

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
  • 3-month no-cost period after each paid repair
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 1-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
