X-ENP MX Metal deck nails

Sheet metal nail X-ENP-19 L15MX #283507

Configurator
Technical Data
Documents
Features & Applications
Related Products

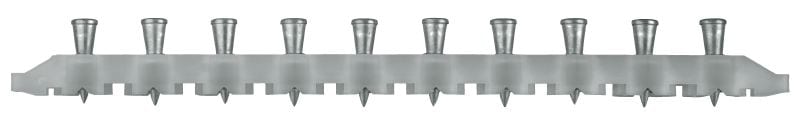

X-ENP MX strip of 10 nails for fastening of profile metal sheets on steel with DX 76 MX adapted
DX 76 PTR
DX 76 PTR

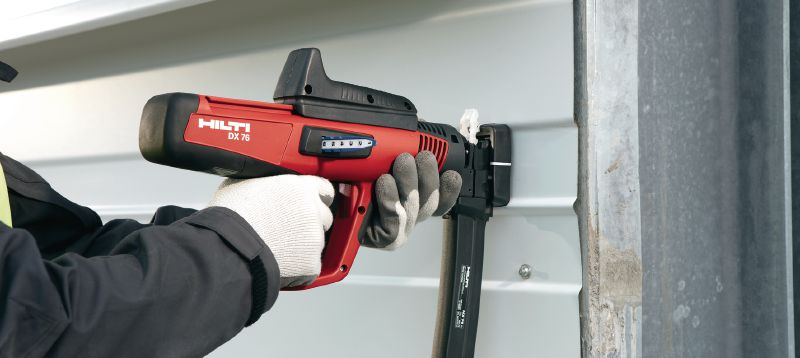

Collated nail for fastening metal decks to steel structures using the DX 76 and DX 9 powder-actuated nailers

  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
  • Corrosion protection: Galvanised zinc coated <20 µm
ultimate

Customers also searched for sheet metal nails, industrial fastening, direct fastening or Decking & Siding.

Choose options

Fastener shank length
  • 19 mm
Pack size
  • 1000 pc
 Product options
Quantity
Packs
Total Pieces
1000
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
AED 1,800.00
AED 1.80 / 1 Piece

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4.5 mm
Washer size
15 mm
Point type
Ballistic point
Approvals
ABS, ETA, FM, IAPMO, ICC-ES, ITB, LR, MLIT, SDI, UL
For use with (tools)
DX 76
Product class
Ultimate

Documents

Technical information
Approval document
Operating Instruction
pdf X-ENP Data Sheet, English [ 676.9 KB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

  • A much faster and safer fastening system compared to welding
  • Fully knurled tip ensures ultimate holding capacity
  • High application limits – can be used on steel with a thickness of at least 6 mm (1/4&quot;)
  • Proven system and has several worldwide approvals for siding and decking
  • No predrilling required, even on thick steel

Applications

  • Fastening metal decks to steel structures with a minimum thickness of 6 mm (1/4&quot;) for composite decking
  • Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4&quot;) nailer for roofing
  • Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4&quot;) for cladding
