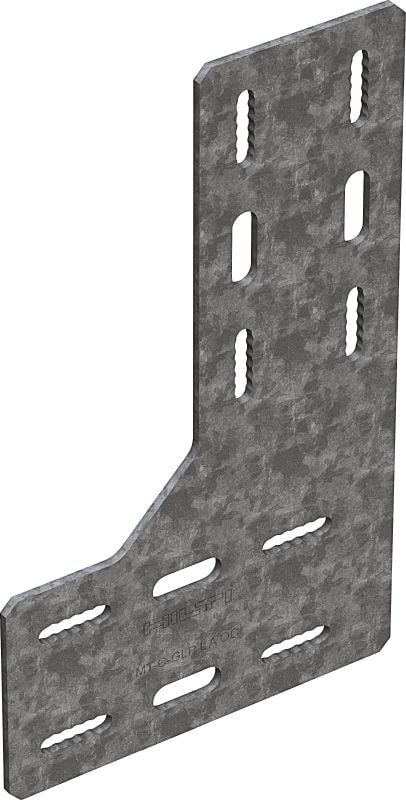

MT-C-GLP L An OC L-shaped flat connector plate

L-shaped flat profile connector for assembling and bracing modular supports in moderately corrosive environments

  • Material composition: Q355 or better steel
  • Surface finish: Outdoor Coated - HDG
  • Material thickness: 4 mm

Technical Data

07_IS_MT-C-GLP L A OC_0001 (3618370)
Material composition
Q355 or better steel
Surface finish
Outdoor Coated - HDG
Material thickness
4 mm
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

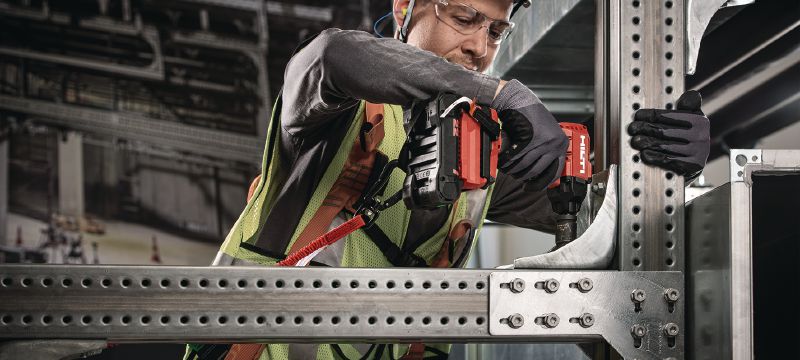

  • Faster to instal – one-step assembly using Hilti MT Thread Forming Bolts (MT-TFB) and compatible with the Hilti Adaptive torque system for hassle-free installations (compatible tool and SI-AT module required)
  • Versatile and secure connections – use oblong holes to adjust height in 5mm (1/4") increments and cloud holes with thread forming bolts (MT-TFB) for secure connections between MT heavy boxed profiles
  • Part of the Hilti MT System – an economical, all-in-one solution for virtually all modular MEP support structures
  • Corrosion resistance – hot-dip galvanised to help protect against moisture and chemical corrosion
  • Extensive software support – PROFIS Modular Support Engineering, Revit® families and plug-ins for Smart 3D® are all available to streamline design and ordering

Applications

  • Assembling and bracing modular support structures consisting of MT-80, MT-90 or MT-100 box profiles
  • Multidisciplinary MEP support structures combining a wide range of media such as air ducts, cable trays, piping, etc.
  • Process piping for energy and industry applications

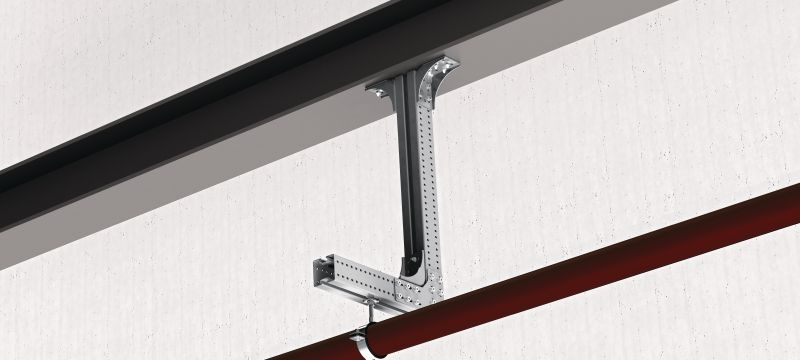

  • Ceiling-mounted MEP support structures with heavy loads such as ceiling grids and utility piping and drainage
  • Integrated modules and skids to support industrial pipes and other heavy-duty building services

For approval or certificate information, please see individual items.
