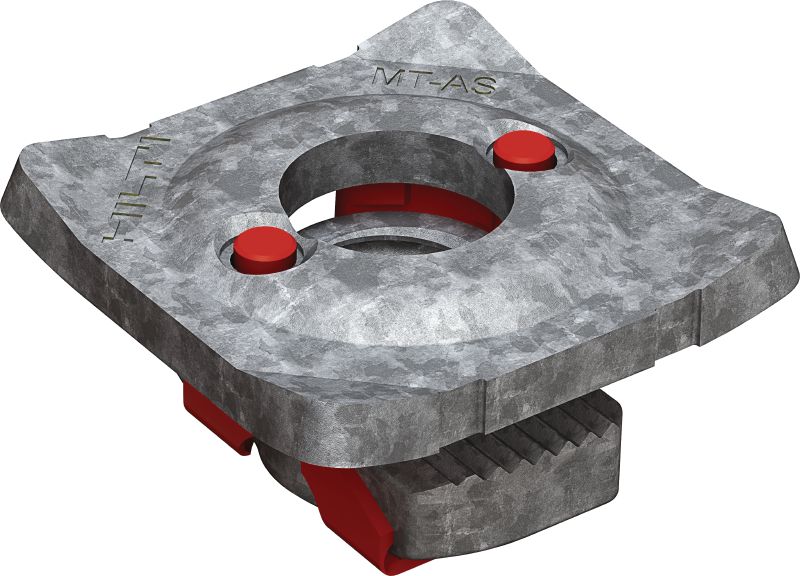

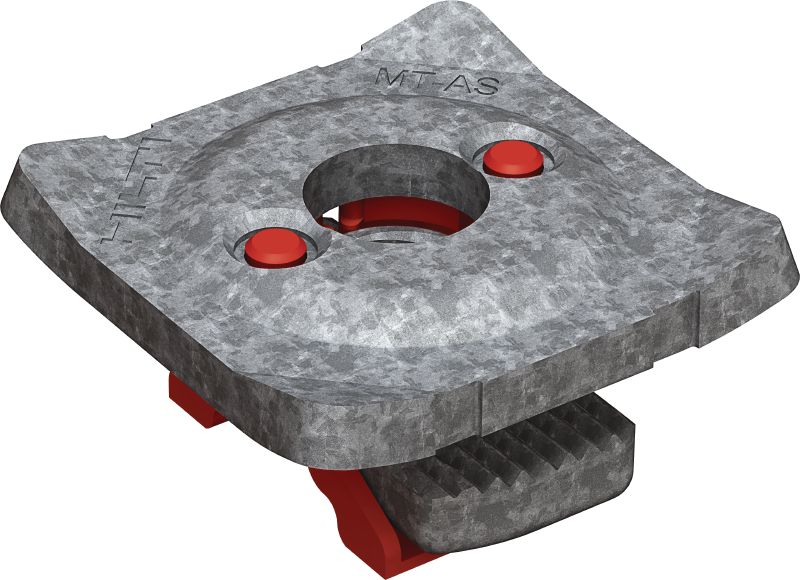

MT-AS B OC pipe ring saddle

L151178 (3548904)

L151177 (3548897)

L133735_cropped (3606883)

02_IS_MT-AS B M16 OC_0001 (3618345)

L151178 (3548904)

L151177 (3548897)

L133735_cropped (3606883)

02_IS_MT-AS B M16 OC_0001 (3618345)

Pipe ring saddle for connecting threaded components to MT C-Channels, in moderately corrosive environments

Material composition: Nut: C4C - EN 10263-2, DD11 MOD - HN 547, Plastic: PBT
Surface finish: Outdoor Coated - HDG
Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Technical Data

02_IS_MT-AS B M16 OC_0001 (3618345)

Material composition

Nut: C4C - EN 10263-2, DD11 MOD - HN 547, Plastic: PBT

Surface finish

Outdoor Coated - HDG

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

Fewer work steps – faster installations in under three work steps and serrated design to help pre-secure connecting elements for better handling
Simple to adjust – can be inserted and adjusted at any point along the profile, with 2.5 mm (1/8") incremental adjustments
Reliable installations – approved for shear loads for secure connections
Part of the Hilti MT System – an economical, all-in-one solution for virtually all modular MEP support structures
Corrosion resistance – hot-dip galvanised to help protect against moisture and chemical corrosion

Applications

Attaching MEP media (hardware) to MT C-Channel profiles when shear load resistance is required

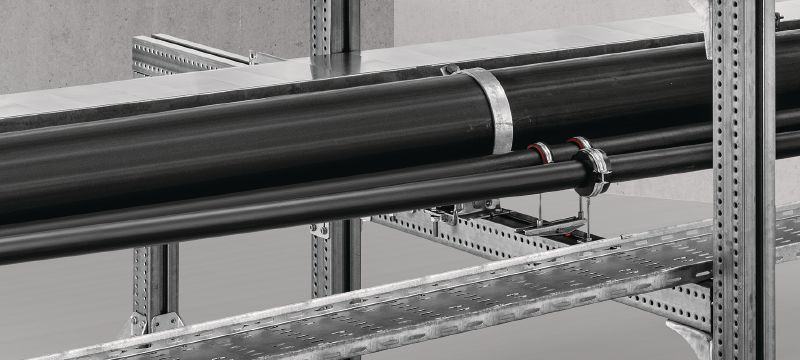

Multidisciplinary MEP support structures combining a wide range of media such as air ducts, cable trays, piping, etc.
Process piping for energy and industry applications
Ceiling-mounted MEP support structures with heavy loads such as ceiling grids and utility piping and drainage
Integrated modules and skids to support industrial pipes and other heavy-duty building services

For approval or certificate information, please see individual items.
