MT-HL OC Wing nuts

L151170 (3548845)

L133716_Cropped (3606935)

L151188_cropped (3598819)

04_IS_MT-HL M10 OC_0001 (3618363)

L151170 (3548845)

L133716_Cropped (3606935)

L151188_cropped (3598819)

04_IS_MT-HL M10 OC_0001 (3618363)

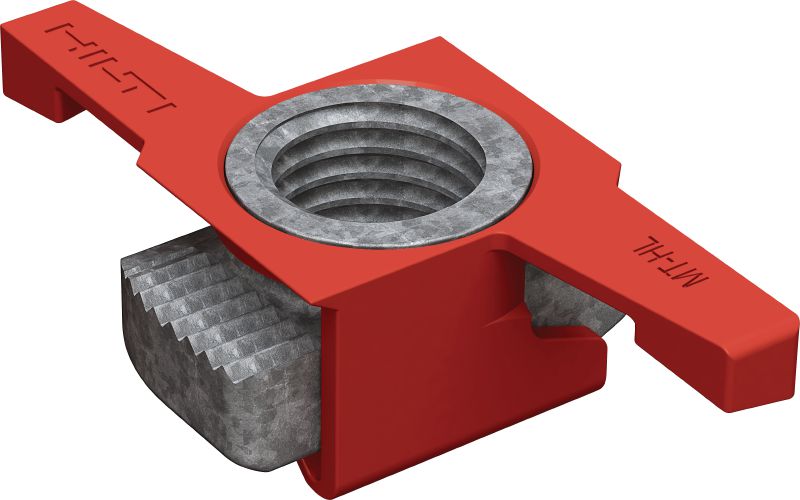

Wing nut for connecting threaded elements directly to MT box profiles in moderately corrosive environments

Material composition: Nut: C4C - EN 10263-2, PA66
Surface finish: Outdoor Coated - HDG
Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Technical Data

04_IS_MT-HL M10 OC_0001 (3618363)

Material composition

Nut: C4C - EN 10263-2, PA66

Surface finish

Outdoor Coated - HDG

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

Fewer work steps – faster installations in under three work steps and serrated design to help pre-secure connecting elements for better handling

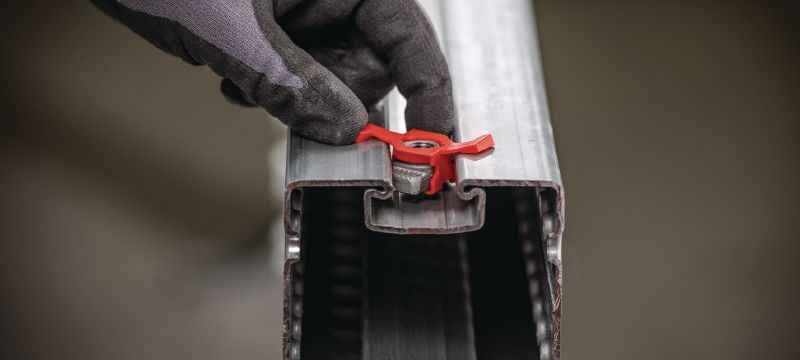

Simple to adjust – can be inserted and adjusted at any point along the profile, with 2.5 mm (1/8") incremental adjustments
Flush connections – flexible wing holds nut in place and sits flush with the profile, for easy and versatile media attachment
Reliable installations – approved for shear loads for secure connections
Part of the Hilti MT System – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

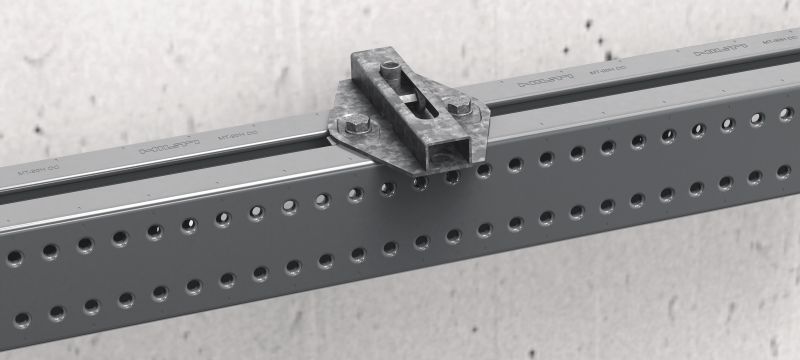

Connecting all compatible hardware to MT box profiles
Assembling MEP support structures by fixing compatible MT connectors
Multidisciplinary MEP support structures combining a wide range of media such as air ducts, cable trays, piping, etc.
Process piping for energy and industry applications
Ceiling-mounted MEP support structures with heavy loads such as ceiling grids and utility piping and drainage

For approval or certificate information, please see individual items.
