MT-C-GS HA OC angle bracket

Angle connector MT-C-GS HA OC #2430775

Configurator
Technical Data
Documents
Features & Applications
Related Products
L133752_cropped (3631378)
06_IS_MT-C-GS HA OC_0001 (3618341)

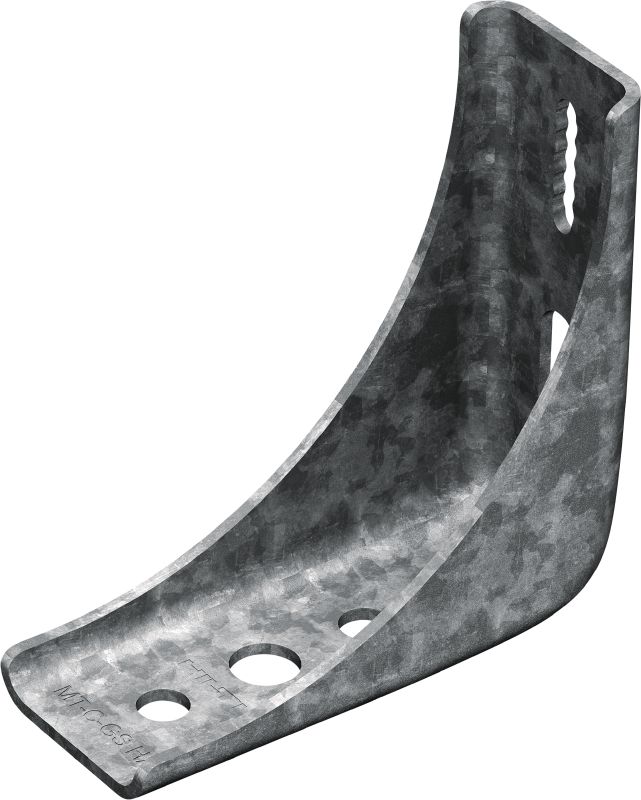

Small, semi-adjustable and braced angle bracket, for box profiles and C-Channel structures with 3D loading in moderately corrosive environments

  • Material composition: Q355 or better steel
  • Surface finish: Outdoor Coated - HDG
  • Material thickness: 3 mm

Choose options

Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
AED 206.91
AED 20.69 / 1 Piece

Technical Data

Details
Technical illustrations
Material composition
Q355 or better steel
Surface finish
Outdoor Coated - HDG
Material thickness
3 mm
Weight
0.41 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Certificate
Approval document
Brochure
Operating Instruction
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Faster to instal – quick installation with MT wing nuts (MT-HL OC) or MT thread forming bolts (MT-TFB OC) and compatible with the Hilti Adaptive torque system, to help avoid over- or under-torquing (compatible tool and SI-AT module required)
  • Versatile and secure connections – use oblong holes to adjust height in 5mm (1/4") increments and cloud holes with thread forming bolts (MT-TFB) for secure connections between MT box profiles
  • Seamless adjustability – use the round holes of the angle bracket for mounting to MT-90H profiles, allowing you to attach, adjust and re-adjust at any point along the profile's seamless groove
  • Flexible – angle brackets can also be used as a baseplate, achored to concrete or directly fastened to steel (combine one, two or four brackets to match your load requirements)
  • Part of the Hilti MT System – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Right-angle connections between MT-80, MT-90 and MT-100 box profiles when resistance to 3D stresses is required
  • Fastening MT C-Channel profiles to concrete floors, walls, ceilings or to structural steel
  • Multidisciplinary MEP support structures combining a wide range of media such as air ducts, cable trays, piping, etc.
  • Process piping for energy and industry applications
  • Ceiling-mounted MEP support structures with heavy loads such as ceiling grids and utility piping and drainage
