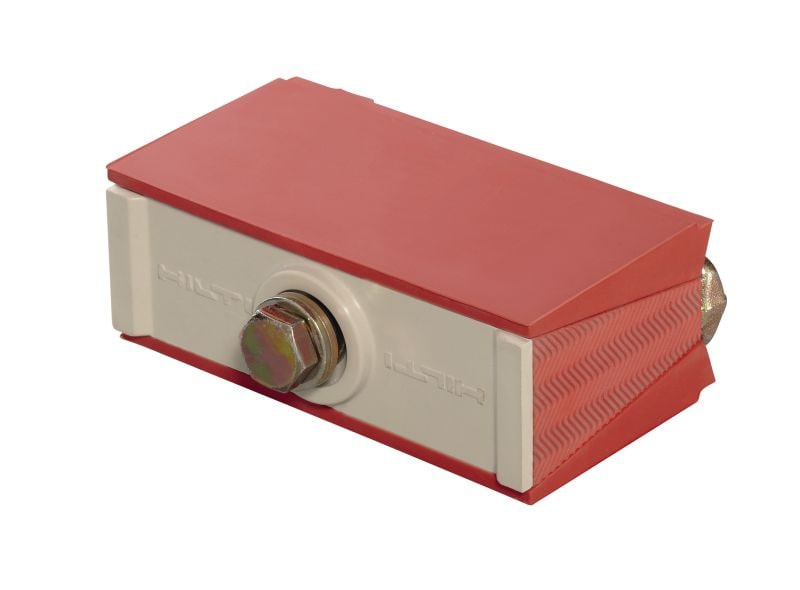

CFS-T wedge compression kits

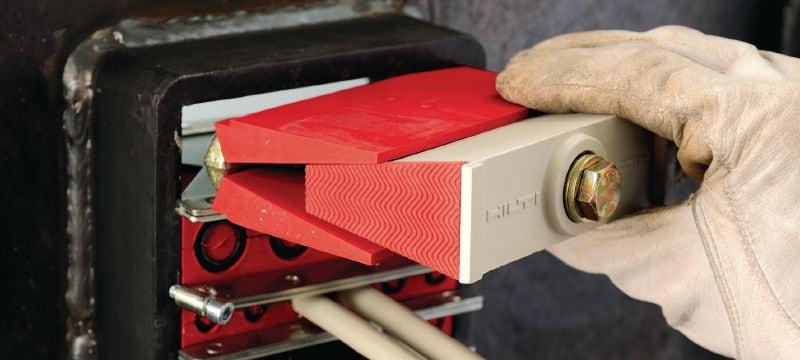

Wedge compression kit for quickly and easily forming a tight, effective seal within cable transit frames
- Approvals: UL
- Storage and transportation temperature range: 5 - 25 °C
- Application temperature range: -20 - 50 °C
Technical Data
Approvals
UL
Storage and transportation temperature range
5 - 25 °C
Application temperature range
-20 - 50 °C
Documents
Features & Applications
Features

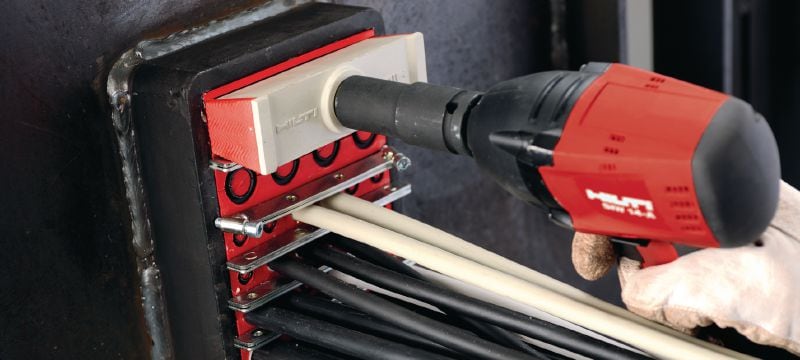

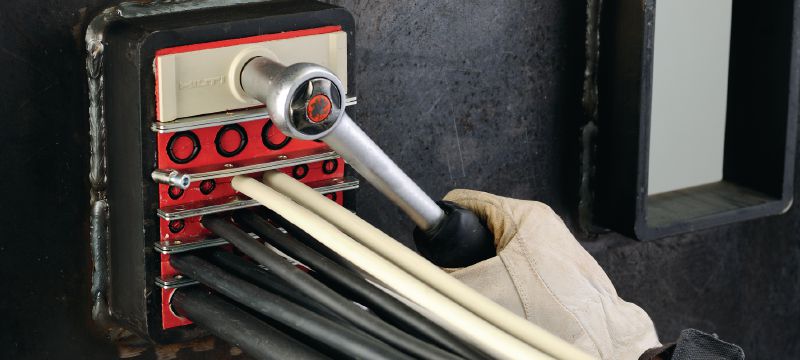

- Only one central bolt to be tightened
- Available with bolt and counter-plate in galvanised steel or stainless steel grade 1.4571 (AISI 316Ti)
Applications
- Penetrations in shipbuilding and offshore applications
- Penetrations in wind power structures
- Telecom, data centre, downstream (oil and gas), petro-chem, control rooms, health care, emergency power, transmission towers
For approval or certificate information, please see individual items.
