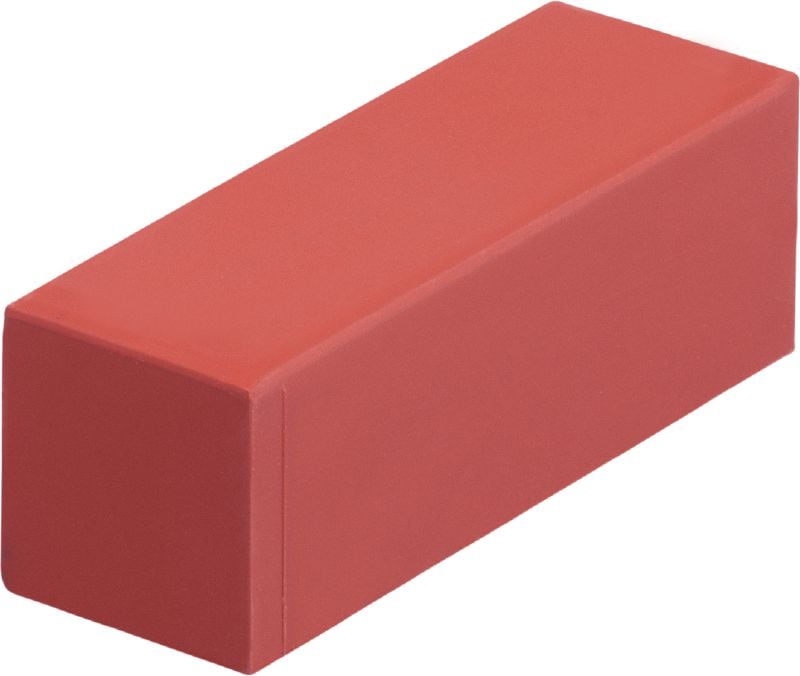

CFS-T FB filler module
Filler modules for sealing unused space within transit frames when high water- and gas-tightness and fire-resistance are required
- Approvals: UL
- Storage and transportation temperature range: 5 - 25 °C
- Application temperature range: 50 - -20 °C
Choose options
Module height
- 10 mm
Base materials
- Concrete, Steel
Pack size
- 18 pc
Quantity
Packs
Total Pieces
1
Ex Vat and Packaging/Forwarding charges
From AED 2,057.05
Technical Data
Approvals
UL
Storage and transportation temperature range
5 - 25 °C
Application temperature range
50 - -20 °C
Documents
Features & Applications
Features
- Placeholder for future cable installations

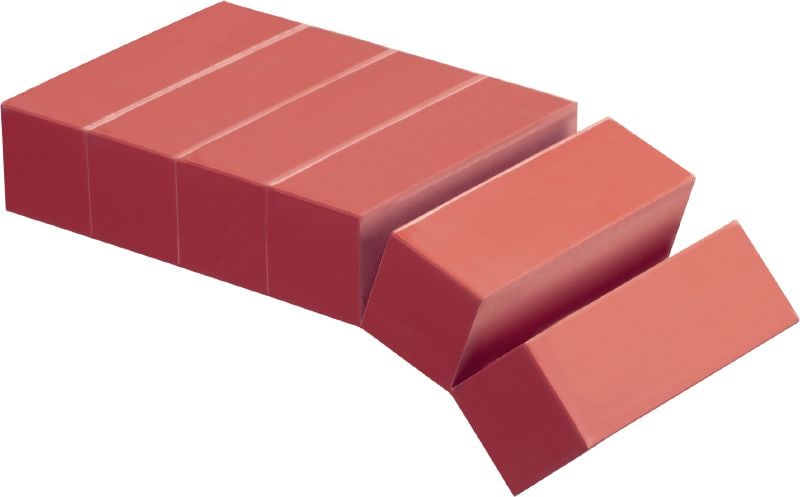

- Filler modules are supplied as one perforated block and can be easily separated for individual use
Applications
- Penetrations in shipbuilding and offshore applications
- Penetrations in wind power structures
- Telecom, data centre, downstream (oil and gas), petrochemical, control rooms, health care, emergency power, transmission towers
For approval or certificate information, please see individual items.
