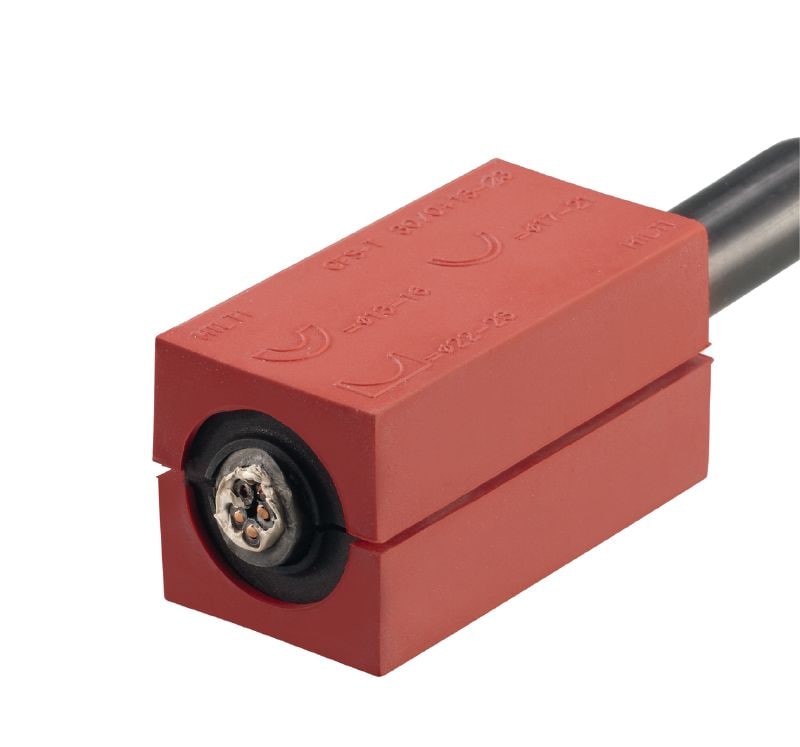

CFS-T cable module
Modules to seal cables/pipes within a transit frame when high water- and gas-tightness and fire-resistance are required
- Approvals: UL
- Storage and transportation temperature range: 5 - 25 °C
- Application temperature range: 50 - -20 °C
Technical Data
Approvals
UL
Storage and transportation temperature range
5 - 25 °C
Application temperature range
50 - -20 °C
Documents
Features & Applications
Features
- Simplified inventory management – only 7 different modules are needed to cover all cable diameters from 3 to 99 mm

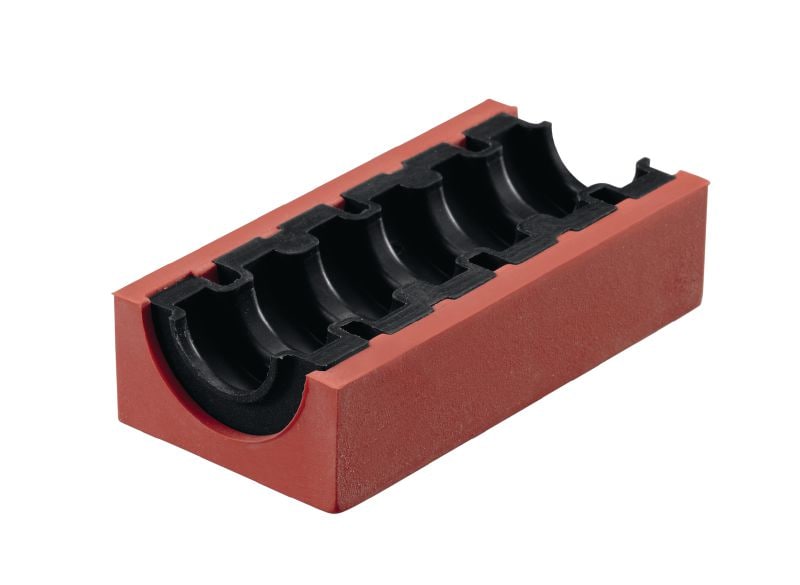

- Versatile adapter modules for quicker, easier accommodation of each cable diameter
- Time-saving installation thanks to module interlinking, especially where cables run vertically through deck/floor penetrations
- Colour-coded adapter system to make inspection easier and more reliable

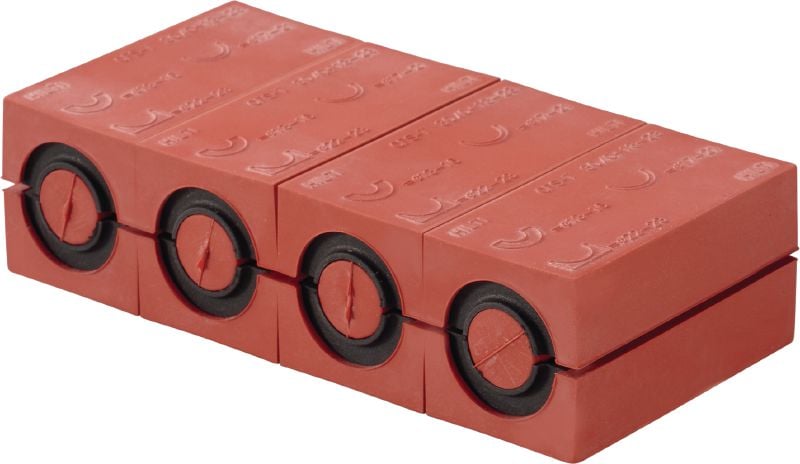

- Cable modules (up to size 40 mm) are supplied in a joined-together state and can be easily separated for individual use.
Applications
- Penetrations in shipbuilding and offshore applications
- Penetrations in wind power structures
- Telecom, data centre, downstream (oil and gas), petrochemical, control rooms, healthcare, emergency power and transmission towers
For approval or certificate information, please see individual items.
