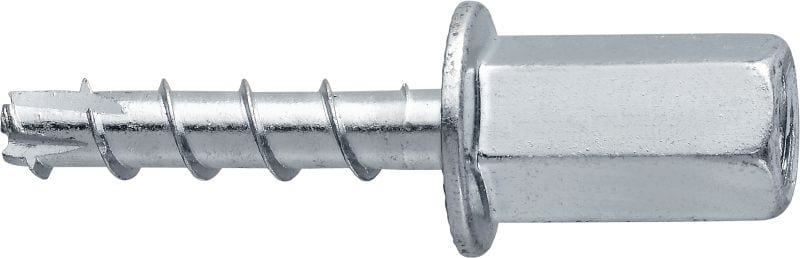

HUS3-I 6 Concrete screw anchor

Ultimate-performance screw anchor for quicker permanent fastening in concrete (carbon steel, internally multi-threaded head)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Inner thread
  • Approvals / test reports: ETA, Fire, VDS

Customers also searched for screw anchorsanchoring railingsanchorsreusable anchors or anchoring.

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Inner thread
Approvals / test reports
ETA, Fire, VDS
Base materials
Concrete (cracked), Masonry (solid)
Type of fastening
Pre-fastening
Reusable (and removable)
Not possible
Cleaning procedures
Manual cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Installation direction
All
Material composition
Steel, zinc-plated (min. 5 µm)

Documents

Features & Applications

Features

  • Higher productivity – less drilling and fewer operations than with conventional anchors
  • M8 and M10 internally threaded heads for direct attachment of threaded rods
  • Simplifies work - optimized for seismic C1/C2 applications and suitable for single point fastenings
  • More reliable and easy to set – HSE product profile available
  • Innovative cutting edge geometry for superior setting characteristics

Applications

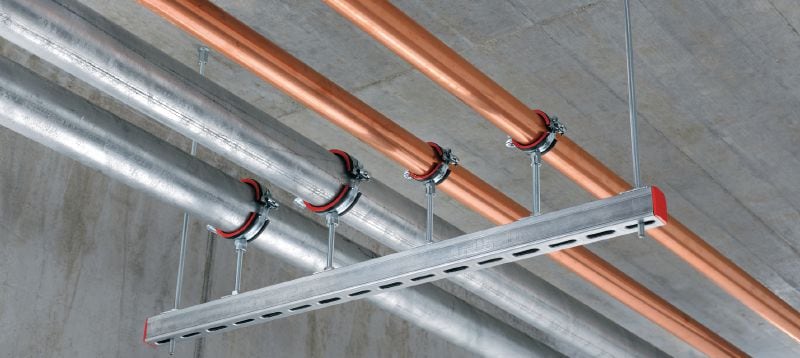

  • Various pipe or ventilation system installation applications

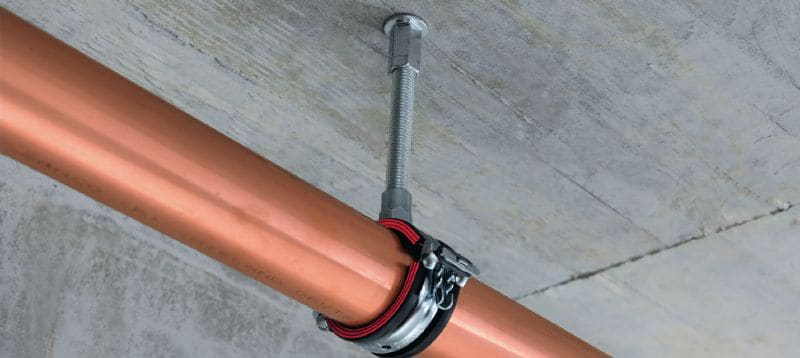

  • Threaded rod hangers for single or multiple pipes
  • Suitable for repetitive installation tasks

For approval or certificate information, please see individual items.
