Structural engineering anchor design software with codes and approvals, Component Based Finite Element Method calculations and a variety of fastening methods

  • Codes and approvals: Supports many country-specific design methods, and can generate detailed design reports to easily verify compliance.
  • Training and support: No matter if you are a newcomer or an expert, we offer technical training and demonstrations (face-to-face and online) to guarantee you can exploit the full potential of the software.
  • Compatible with: Internet browsers like Chrome, Edge, Firefox and others (cloud-based software)

Technical Data

Codes and approvals
Supports many country-specific design methods, and can generate detailed design reports to easily verify compliance.
Training and support
No matter if you are a newcomer or an expert, we offer technical training and demonstrations (face-to-face and online) to guarantee you can exploit the full potential of the software.
Compatible with
Internet browsers like Chrome, Edge, Firefox and others (cloud-based software) 1
System requirements
Internet connection necessary to perform calculations
Security and authorizations
User-based login information
  1. Apple iPhone and iPad, Android and Galaxy Camera are trademarks of the respective companies

Documents

Features & Applications

Features

  • Complete solution for designing structural connections
  • Stay up-to-date with the latest international codes and approvals automatically
  • Free version available for everyday structural connections
  • Import from structural analysis software and export to BIM and CAD
  • Improve productivity with advanced anchor and baseplate design features

Applications

  • Easily design, calculate and analyse multiple connection types, including anchoring to concrete, masonry, post-installed reinforcing bar, concrete overlay and handrail designs
  • Save hours of research time as the software automatically updates to the latest versions of international codes and approvals, including: ACI, CSA, Eurocode, Australian Standards and many others
  • PROFIS Engineering Standard gives you free access to all the application modules and allows you to generate detailed, step-by-step calculation and design reports (including baseplate rigidity cheque) for post-installed or cast-in-place anchors
  • With PROFIS Engineering Premium, import loads from Excel or directly from other structural analysis software programmes (e.g. RISAConnection, RAM Structural System, STAAD.Pro, SAP2000, ETABS, Robot, Revit and Dlubal RFEM and RSTAB) and export your final designs in 2D and 3D to integrate them into your standard BIM and CAD programmes
  • With PROFIS Engineering Premium, use CBFEM (Component-based Finite Element Method) to design your full baseplate connection, including calculations for anchors, stiffeners, welds, profiles and concrete

For approval or certificate information, please see individual items.

Product Videos

PROFIS Engineering Suite

All-in-one software for structural connection and fastening design

PROFIS Engineering Suite makes designing and analyzing structural connections faster and easier than ever.

New to PROFIS? Try the premium version for free for 30 days. After the trial, you can access the free version. Or choose premium for the full range of advanced design features and third party integrations.

HOW CAN PROFIS ENGINEERING IMPROVE YOUR DESIGN PROCESSES?

All-in-one solution

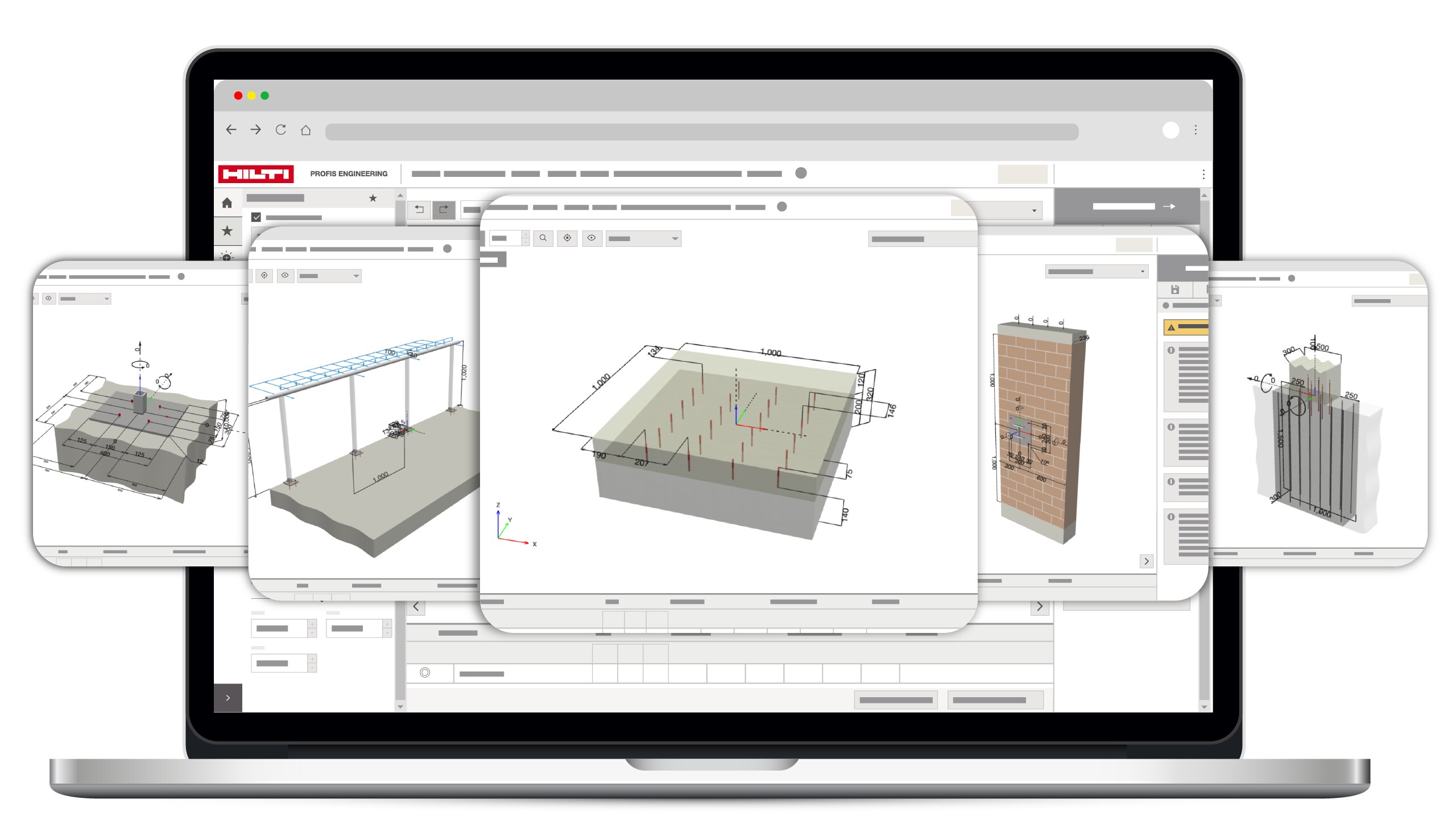

Design and calculate fixings including steel to concrete, concrete to concrete, steel to masonry, handrail, post-installed and cast-in façade fastenings, anchor channels, and more, while seamlessly integrating your workflow with multiple structural and BIM/CAD software programs.

Peace of mind

Stay up to date with codes and approvals automatically. As a leading manufacturer of anchors, we leverage our expertise to help ensure your designs comply with the latest regulations.

Time and material savings

Extract the maximum capacity from your anchors with Smart Design. When anchoring to concrete, you get rapid analysis of key inputs to help make baseplate design faster, simpler, and more cost efficient.

Learning and support

Technical training including e-learnings, enabling you to create fast, compliant designs. Plus you get easy in-software access to Engineering Center, Hilti's hub for engineers. Ask questions, watch webinars, download technical documents, and more.

Explore solutions for these applications

Anchoring to Concrete

Design complex and day-to-day structural baseplate connections

Use preset templates to design concrete fixings including post-installed and cast-in-place anchors, baseplates, welds and stiffeners quickly and accurately. With just a click you can analyze baseplates using CBFEM and perform rigidity checks to determine whether to adapt the design or the loads. Optimize fixture points and perform stress and strain checks – PROFIS considers applied loads such as seismic and fatigue and can find economical solutions for avoiding breakout using supplementary reinforcement. Smart baseplate design further simplifies your design process.

Generate a customized report complete with code references, calculations, product information and images.

Smart design for anchoring to concrete

Swap trial and error for automated, optimized anchor calculations

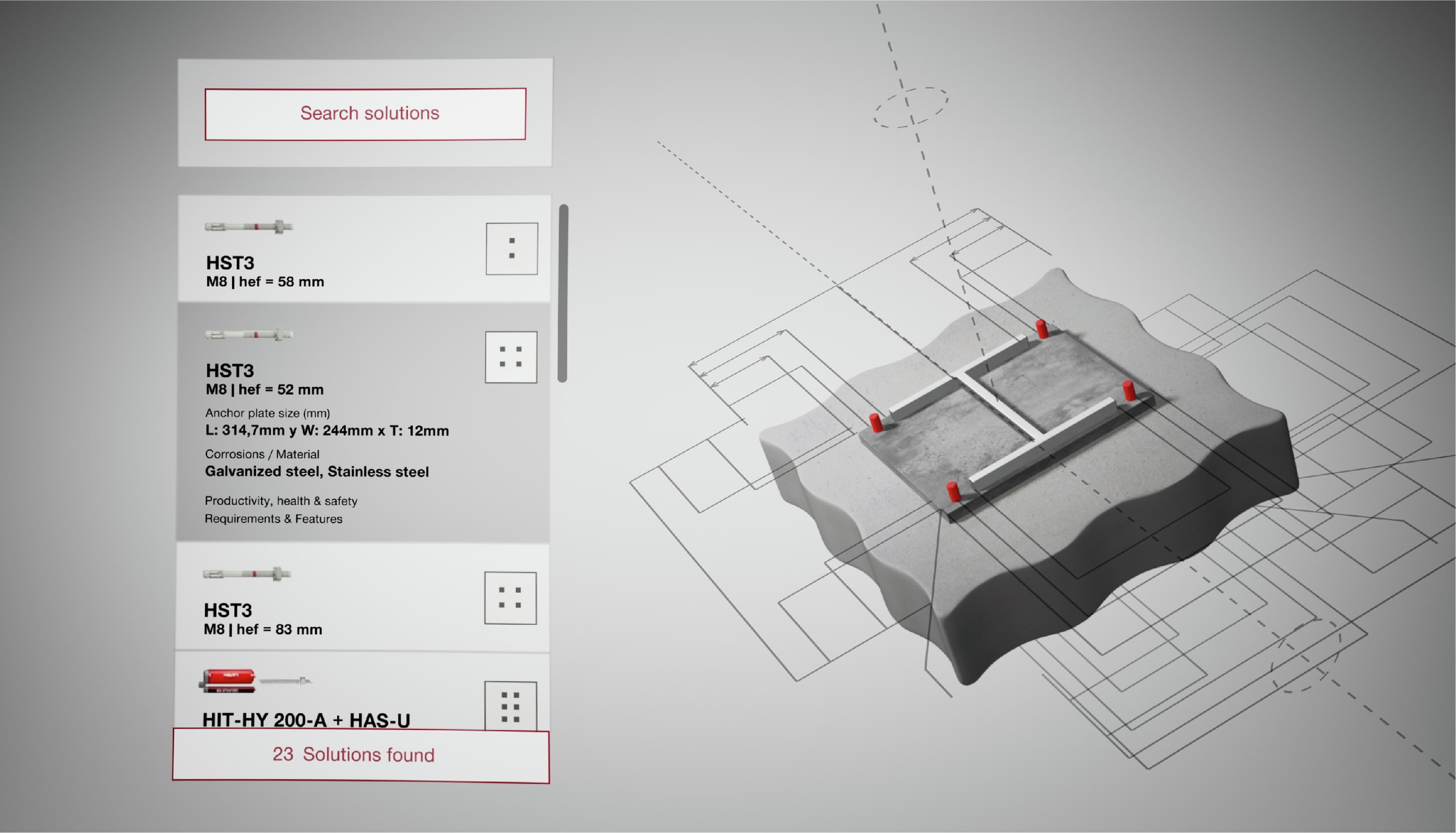

  • Streamline selection of optimal anchor design for steel-to-concrete connections: PROFIS Smart Design feature rapidly analyzes factors such as loads, profile geometry, base material strength and geometry, and last anchor type to help give you the best, most efficient solution by reducing baseplate area or embedment depth
  • Advanced inputs option for your utilization goal (for example, >90%) or project conditions. See all compliant designs in descending baseplate size with one click and streamline final selection with sorting and post- filtering options.

Concrete to Concrete: PIR

Everything you need to design post-installed rebar applications

Add or extend concrete elements whether you're working with existing rebar or missing starter bars. Solve concrete structural joints and splices, and then verify the shear resistance at the interface between the old and new concrete.

Need to adapt the layout or geometry of your PIR design? PROFIS lets you easily customize the diameter, embedment depth and spacing parameters for existing concrete as well as post-installed.

Concrete to concrete: Overlay

Design for concrete overlay and post-installed shear dowels

With PROFIS you can dimension post-installed shear connectors and verify the interface between the concrete cast at different times. Establish whether your design has edges or is symmetric, and then define different areas of acting shear. You'll know your designs are sound thanks to intuitive 3D graphics that show how stresses vary throughout the connection.

Ready for installation? PROFIS has already saved you time by optimizing the layout.

Anchoring to masonry

Design masonry fixings more productively and accurately

PROFIS Engineering Suite can help you design accurate baseplate connections using masonry-approved anchors. Save time with intuitive built-in templates that combine your on-site data with factors such as allowable tension and shear loads while considering load reductions and geometry requirements.

Select from multiple sizes and types of brick or concrete masonry units, adjust their layout and define whether grout is present. You can even create your own templates to reduce design time on similar projects.

Façade and anchor channel design

Simpler, faster design of certified products in line with the latest codes

Design cast-in and post-installed fastenings for façades with certified products according to the latest regulations (including ACI, Eurocode). Switch between the two fastening technologies simply in a few clicks. Find the controlling design more quickly with automatic calculation of tolerances, slotted holes and multiple load combinations​.

Designing anchor channels for other applications such as elevators, data centers or tunnels? Achieve faster calculation of anchor channel systems for multiple design regulations including ICC-ES AC232, ACI318-11, ACI318-14, ACI318-19, CSA A23.3-14, CSA A23.3-19, EN1992-4, AS5216:2021, CEN TR17080.

Need help with a challenging design issue? Get experct advice from our engineers.

profis_screens_with_background_Website

Checkbot plug-in for improved workflows

Simplify processes, improve data mapping and boost collaboration

PROFIS Engineering is integrated with the IDEA Statica Checkbot structural design hub. This gives you simpler, faster and more transparent design and calcuation workflows in three steps:

  1. Export thousands of connections at at time from your finite element analysis (FEA) or BIM software to Checkbot.
  2. Use Checkbot for functions such as status checks of imported connections, 3D visualization of imported members and loads, and management of load combinations.
  3. Export your data to PROFIS Engineering to design your steel-to-concrete connections.

GENERAL PROFIS ENGINEERING FAQS:






Integrations and file sharing in PROFIS Engineering: FAQs




How to set up PROFIS and Checkbot integration





Technical design in PROFIS Engineering: FAQS





Access on-demand PROFIS training materials, webinars and testimonials. Learn how to navigate modules, create and modify templates, optimize designs and much more.

Have a question about anchor reinforcement? Curious about concrete breakout? Looking for cast-in-place anchor solutions? Search videos and exchange ideas with the Hilti community.

You've done the design – now learn more about the anchors. From cast-in anchors to injectable adhesive anchors to undercut anchors, you'll find all you need at our webshop.
