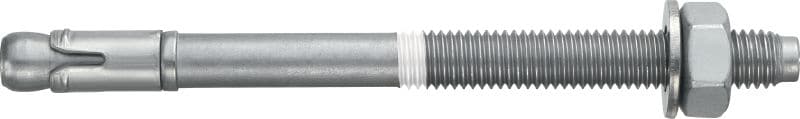

HST2-R Wedge anchor
High-performance wedge anchor for everyday static loads in cracked concrete (A4 stainless steel)
- Material, corrosion: Stainless steel, A4
- Head configuration: Externally threaded
- Approvals / test reports: ETA, Fire, FM (Factory Mutual)
Technical Data
Material, corrosion
Stainless steel, A4
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, FM (Factory Mutual)
Base materials
Concrete (cracked)
Installation tools
SIW 4AT-22 ½” Cordless impact wrench, DD 30-W Core drill, TE 6-A22 Cordless rotary hammer
PROFIS software
Yes
Environmental conditions
Indoor with temporary condensation
Documents
Features & Applications
Features
- The optimised design of the expansion cone and wedge combined with special steel and coatings ensure appropriate performance in cracked and uncracked concrete
- Suitable for installation with SIW 6AT-A22 and SI-AT-A22 module for higher productivity and safety
- Automatic hole cleaning with hollow drill bits in combination with Hilti vacuum cleaners
- Suitable for use in hammer-drilled and diamond-cored holes (DD EC-1 and DD-30W)
Applications

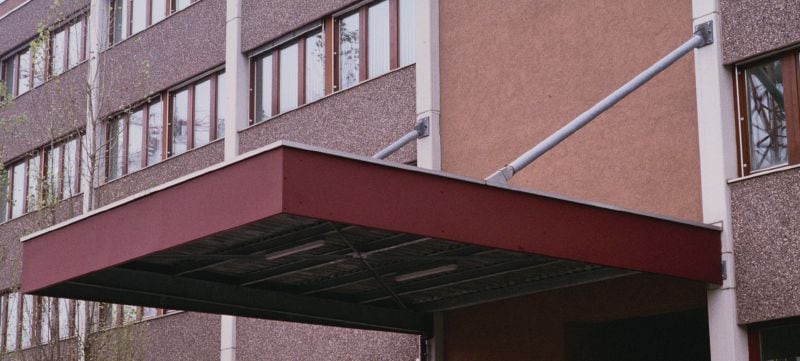

- Wide range of safety-relevant applications
- Particularly suited to safety-relevant applications in corrosive environments

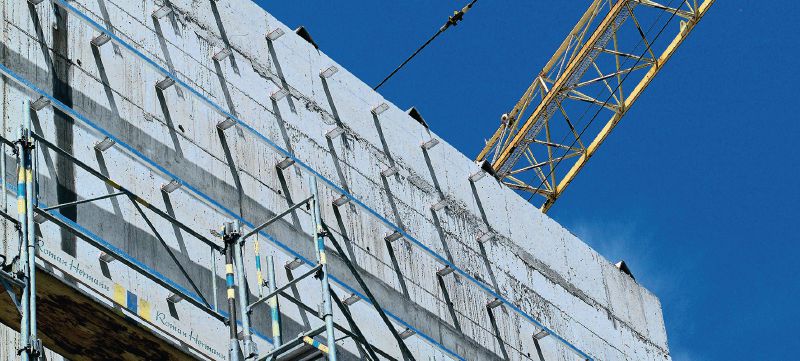

- Facades

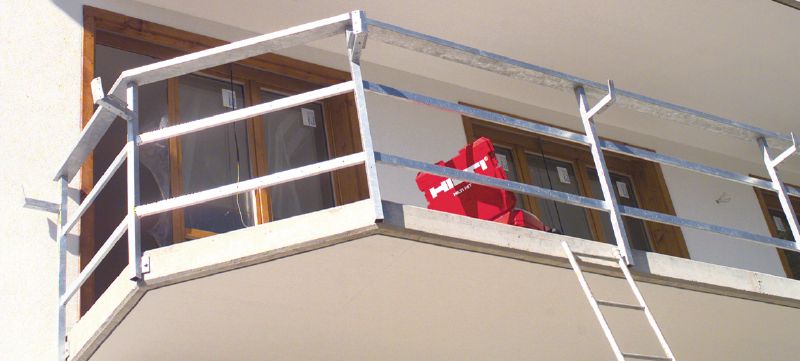

- Hand rails
For approval or certificate information, please see individual items.
