new
DD 30-W Core drill

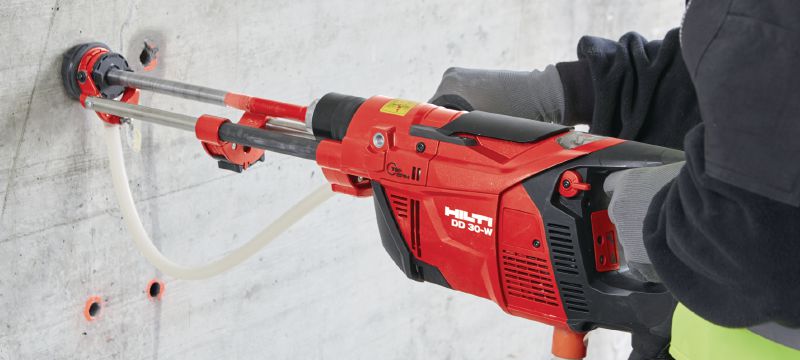

Compact, light diamond coring machine for wet, handheld coring of heavy-duty anchor and rebar holes from 8-35 mm (5/16 - 1-3/8") in diameter
- Diameter range: 8 - 35 mm
- Base material: Concrete, Masonry

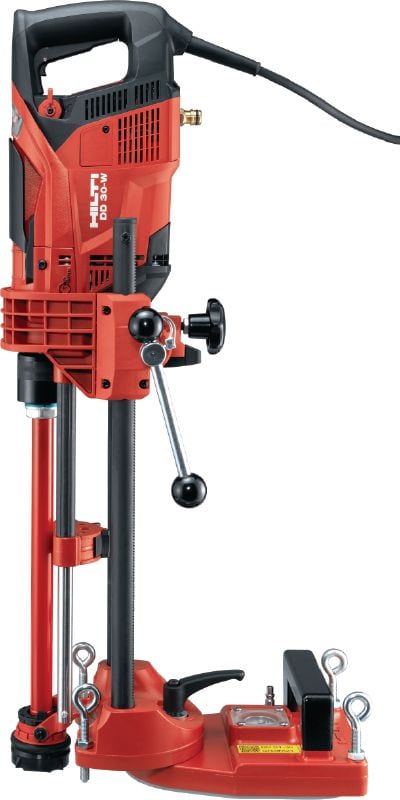

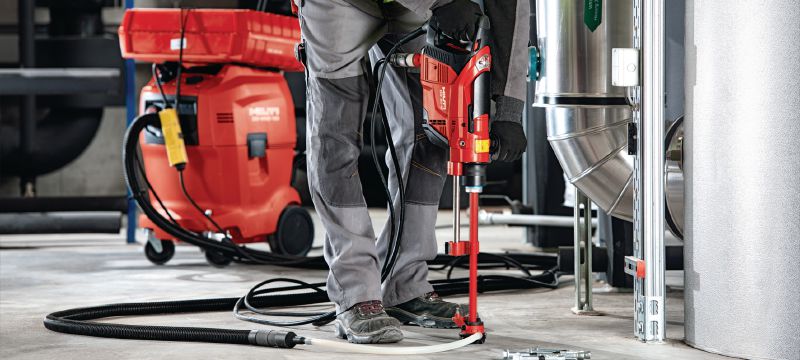

- Operation mode: Hand-held and rig-mounted drilling system
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
You can not see your company prices
Ex Vat and Packaging/Forwarding charges
From AED 24,846.44
Technical Data
Diameter range
8 - 35 mm
Base material
Concrete, Masonry
Operation mode
Hand-held and rig-mounted drilling system
Number of gears
1
No load RPM
gear 1: 9200 rpm
Weight according to EPTA Procedure 01/2003
7.6 kg
Dimensions (LxWxH)
429 x 127 x 238 mm
A-weighted emission sound pressure level
88 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
6 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
C+ 18/300 SPX-T
Corner accessibility
45 mm
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- Very low drilling noise – the ideal solution for drilling in inhabited buildings
- Impact-free drilling reduces the risk of damage to brittle materials and allows drilling close to edges
- Fast drilling through rebar thanks to the unique TopSpin technology
- Soft-start feature for precise hole positioning
- The quick-lock keyless chuck system makes changing core bits quicker and easier than ever
Applications
- Drilling accurate anchor holes and through holes 8 to 35 mm (5/16 - 1-3/8") in diameter
- Low-noise drilling for setting anchors during renovation work in hospitals, commercial and residential buildings

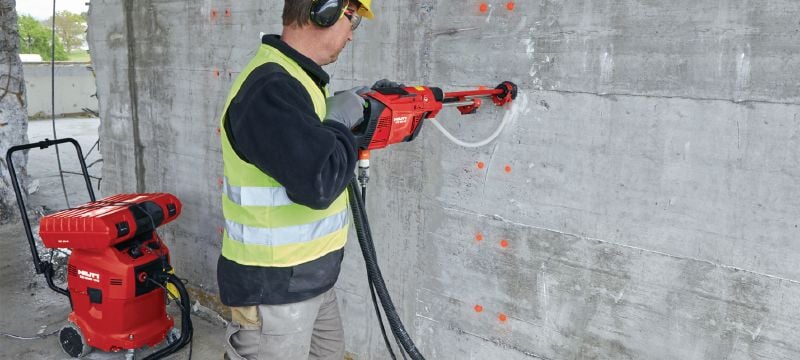

- Wet coring in heavily-reinforced concrete, masonry and natural stone
- Wet coring in brittle materials (marble, tiles, masonry, natural stone) and close to edges
For approval or certificate information, please see individual items.
