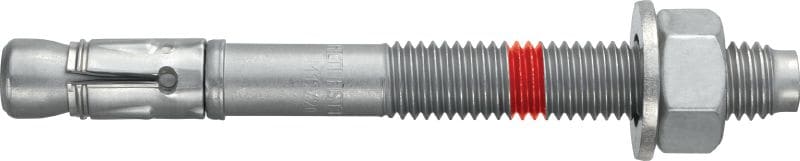

HST3-R Wedge anchor
New productItem #r3987999
Ultimate-performance expansion anchor for cracked concrete under static and seismic conditions (A4 SS)
- Material, corrosion: Stainless steel, A4
- Head configuration: Externally threaded
- Approvals / test reports: ETA, Fire, FM (Factory Mutual), Seismic
Share
Customers also searched for anchoring in uncracked concrete, anchoring, anchoring in cracked concrete or anchors
Features
- High resistance – to meet geometrically challenging requirements, e.g. reduced member thickness or smallest spacing and edge distances
- Increased undercut percentage in combination with optimized coating
- Greater flexibility thanks to two embedment depths included in the ETA
- Minimum edge and spacing distances reduced by up to 25% compared to HST expansion anchors
Applications
- Particularly suited to safety-relevant applications in corrosive environments

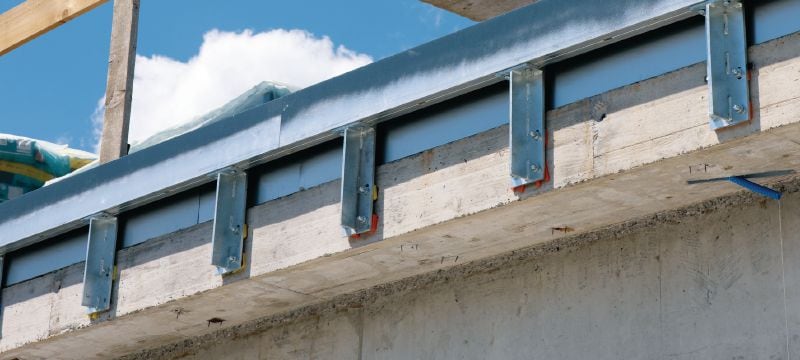

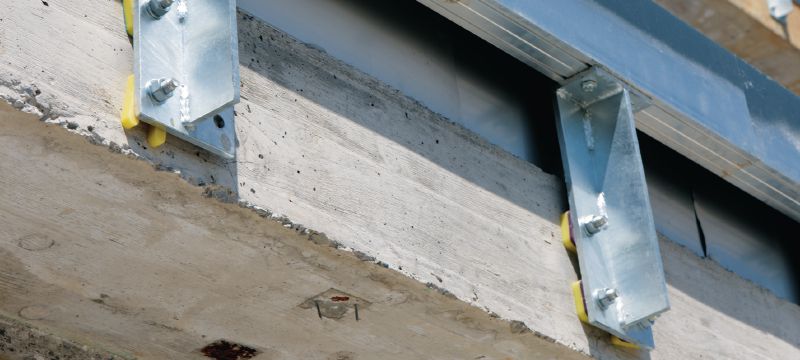

- All safety-relevant fastenings in cracked and uncracked concrete
- All safety-relevant fastenings in seismic loading conditions, category C1 for non-structural elements and category C2 for structural elements

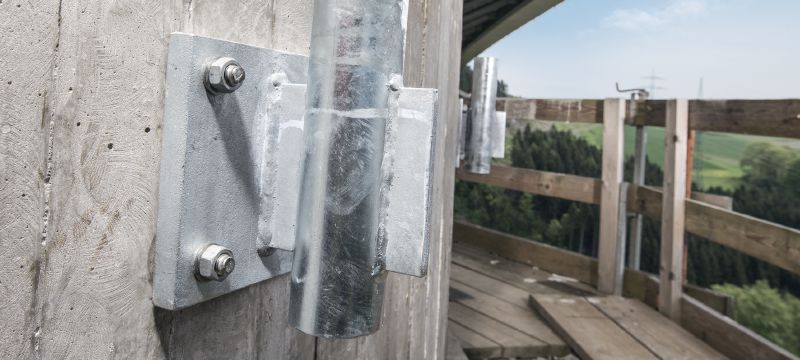

- Handrails
For approval or certificate information, please see individual items.
Technical Data
Documents
-
- Technical data sheet for the HST3 metal expansion anchor, English, [ 1.7 MB ]
- White paper Ungrouted stand-off base plates EU, [ 1.2 MB ]
- White paper Anchor On-site Testing, English, [ 1.2 MB ]
- Solutions for fastening: Improved design for anchors under shear loading, English, [ 1.6 MB ]
- White Paper Grouted stand-off base plates EU, English, [ 894.9 kB ]
- White Paper Tips & Tricks On-site Anchor Testing, English, [ 1.5 MB ]
Application videos
-
HST3 - Edge and Spacing.
-
HST3 - Flexibility.
