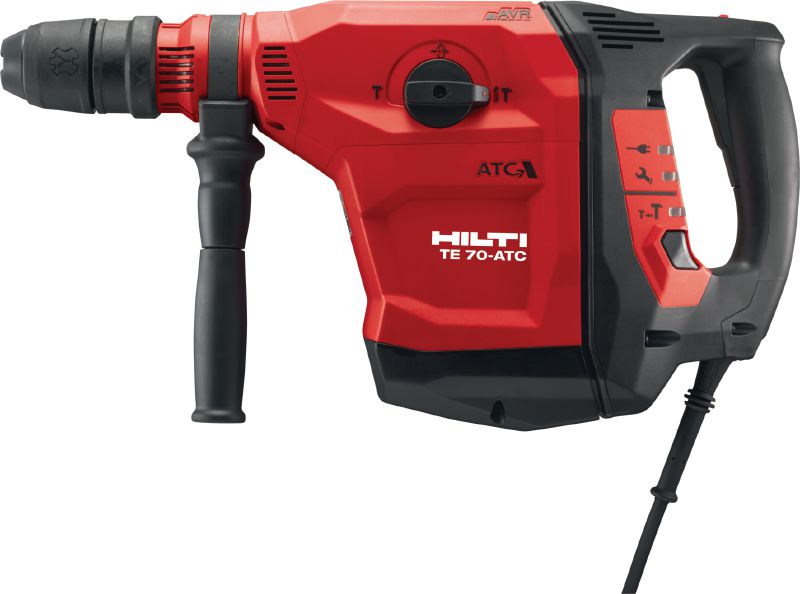

TE 70-ATC/AVR Rotary hammer

Combihammer TE 70-ATC/AVR 110 V #2172140

Very powerful SDS Max (TE-Y) rotary hammer for heavy-duty drilling and chiselling in concrete

Weight according to EPTA Procedure 01/2003: 10 kg
Single impact energy: 14.5 J
Hammer drilling diameter range: 12 - 150 mm

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Piece

You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 10,329.07

AED 10,329.07 / 1 Piece

Technical Data

Weight according to EPTA Procedure 01/2003

10 kg

Single impact energy

14.5 J

Hammer drilling diameter range

12 - 150 mm

Optimum hammer drilling range

20 - 55 mm

Hammer drilling RPM

245 rpm

Full hammering frequency

2830 impacts/minute

Functionality

Active Torque Control (ATC), Chiselling, Power reduction, Active Vibration Reduction (AVR)

Triaxial vibration value for hammer drilling into concrete (ah,HD)

8.6 m/s² ¹

Dust removal system available

TE DRS-Y, TE DRS-D

Triaxial vibration for chiselling in concrete

7.8 m/s² ²

Rated input power

2100 W

A-weighted emission sound power level

113 dB (A) ³

A-weighted emission sound pressure level

103 dB (A) ⁴

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the drill bit jams – helping to reduce a common safety hazard
Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
Virtually maintenance-free brushless SR motor and double-chamber lubrication systems for longer service intervals and tool lifetime

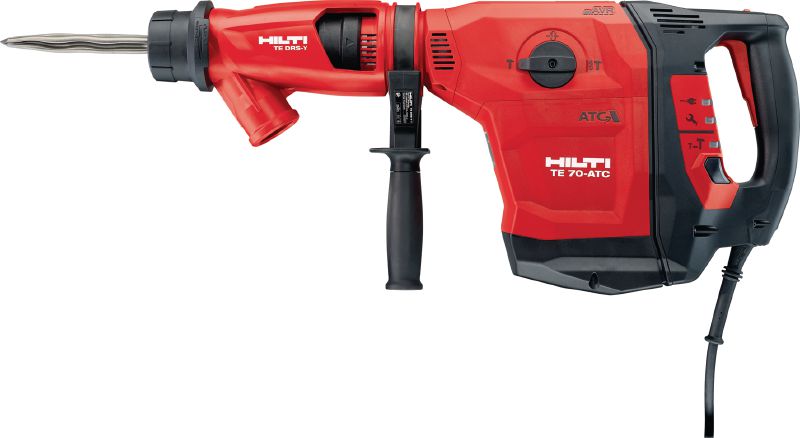

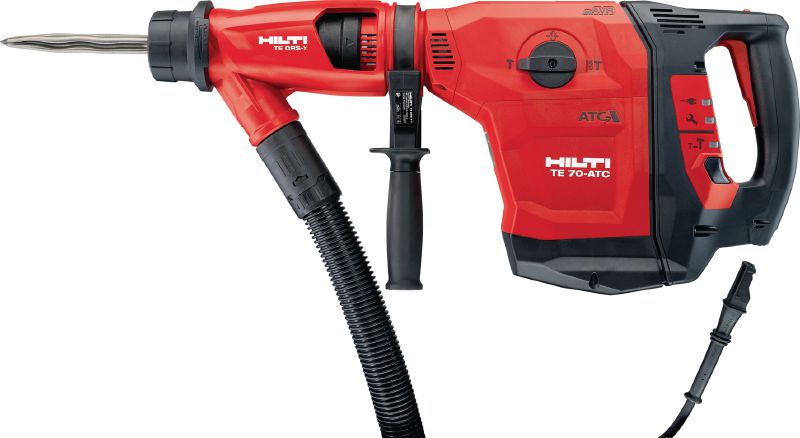

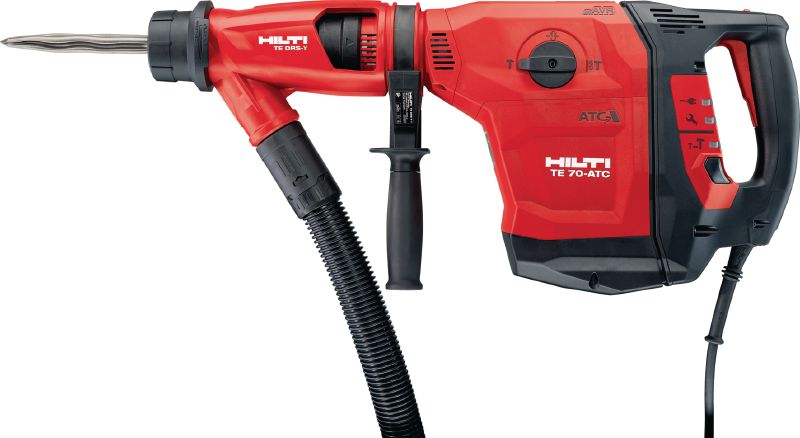

Optional DRS-Y dust removal system collects up to 95% of dust

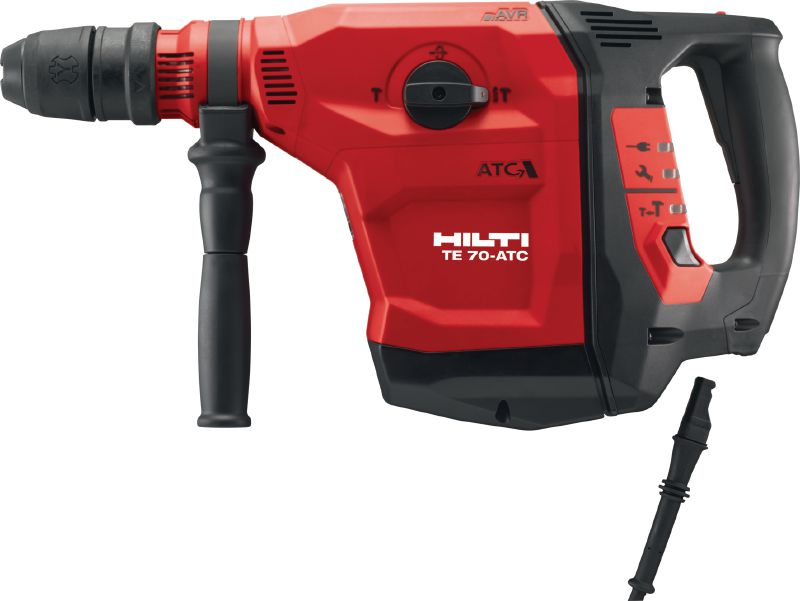

Detachable supply cord for quicker and easier replacement of damaged/broken cords on the jobsite

Applications

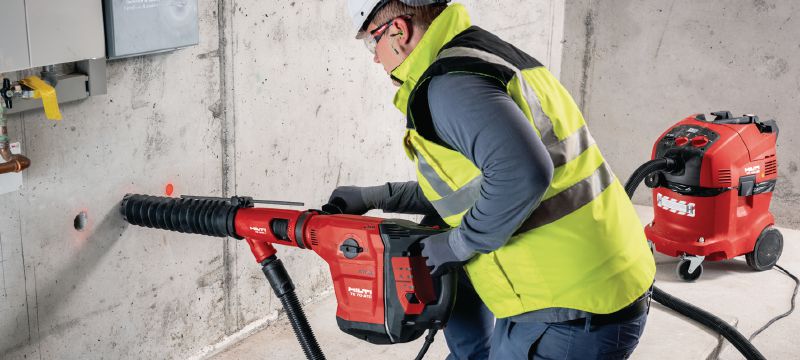

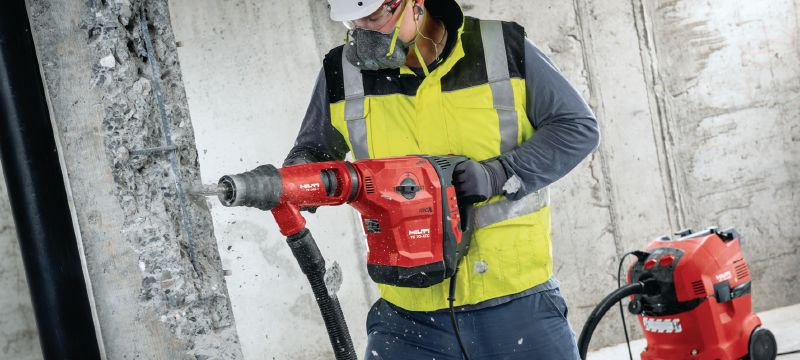

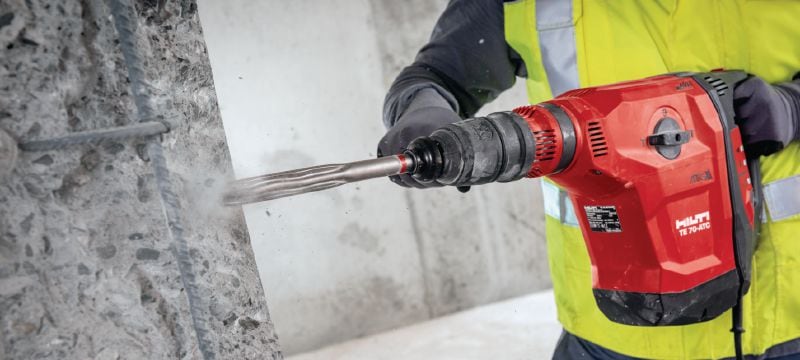

Hammer drilling in concrete, masonry and natural stone with drill bits 12 - 150 mm in diameter
Drilling holes for heavy-duty anchors from 20-40 mm in diameter

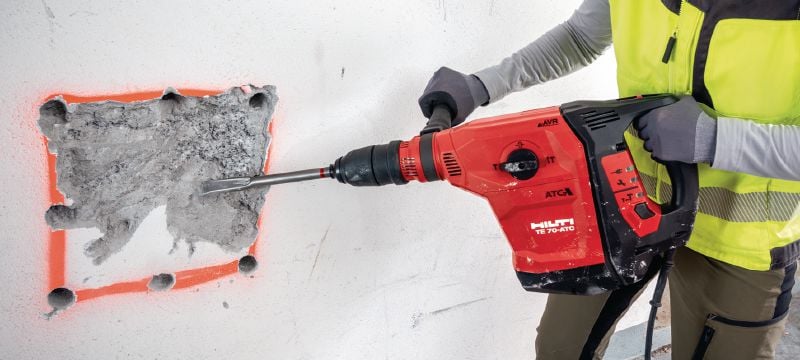

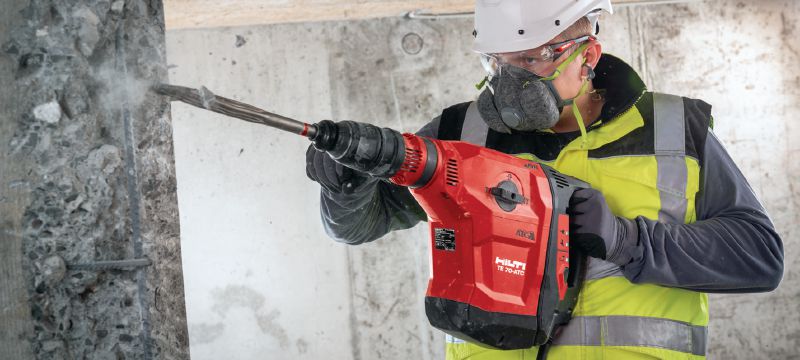

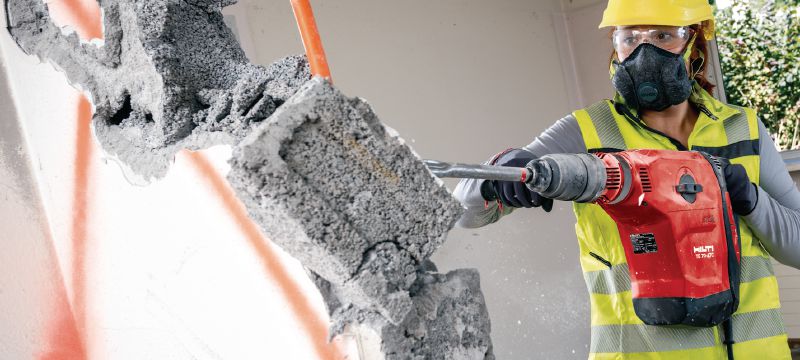

Breaching and demolition with pointed and flat chisels
Hammer drilling in concrete, masonry and natural stone with drill bits 1/2" - 6" in diameter
Drilling holes for heavy-duty anchors from 3/4" - 1-3/4" in diameter
