TE 30-AVR Rotary hammer

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
TE 30-AVR (Generation 2) (88807)
L098009_cropped (179520)
L098035_cropped (179523)
L098081_cropped (179528)
L098151_cropped (179534)

Powerful SDS Plus (TE-C) rotary hammer for heavy-duty concrete drilling and corrective chiselling, with Active Vibration Reduction (AVR)

  • Weight according to EPTA Procedure 01/2003: 4.2 kg
  • Optimum hammer drilling range: 10 - 20 mm
  • Single impact energy: 3.6 J

Customers also searched for drilling, combihammer or demolition.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
From AED 4,470.36

Technical Data

Weight according to EPTA Procedure 01/2003
4.2 kg
Optimum hammer drilling range
10 - 20 mm
Single impact energy
3.6 J
Working mode
Hammer drilling, Drilling, Chisel setting, Chiselling
Hammer drilling diameter range
5 - 28 mm
Hammer drilling RPM
1100 rpm
Full hammering frequency
4500 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiselling, Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
9.7 m/s² 1
Triaxial vibration for chiselling in concrete
8.8 m/s² 2
A-weighted emission sound pressure level
95 dB (A) 3
Dimensions (LxWxH)
371 x 113 x 225 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (AR) [ 927.2 KB ]
pdf Material safety datasheet Hilti Grease (EN) [ 735.3 KB ]

Features & Applications

Features

  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Quick-change chucks – changing bits is fast and tool-free
  • Extra-long lifetime thanks to a highly robust chuck, motor components and casing
  • Active Vibration Reduction (AVR) makes working with the tool less tiring and increases productivity
  • Perfect balance, low weight and compact design for superior working comfort

Applications

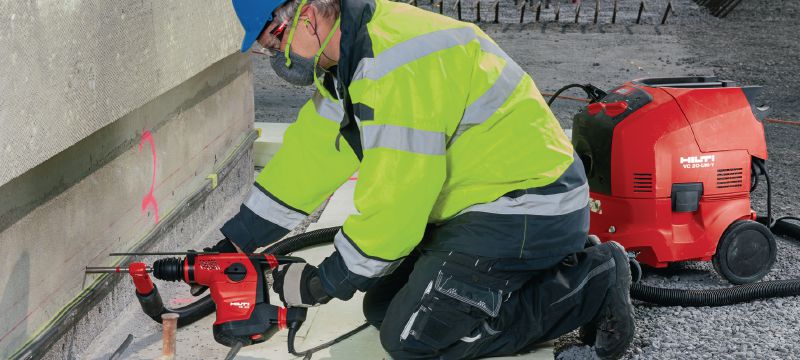

  • Drilling anchor, rebar and through holes in concrete and masonry – possible diameter range 4-28 mm, recommended diameter range 10-20 mm
  • Chiselling in brick and block, corrective chiselling and surface finishing on concrete
  • Drilling in wood and metal using the optional quick-release chuck and drill bits with smooth shank up to 13 mm diameter
  • Driving anchor screws and concrete screw anchors

For approval or certificate information, please see individual items.

Services

Fleet Management

  • Individual labels and online visibility provide tool fleet transparency
  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
More information about Fleet Management
