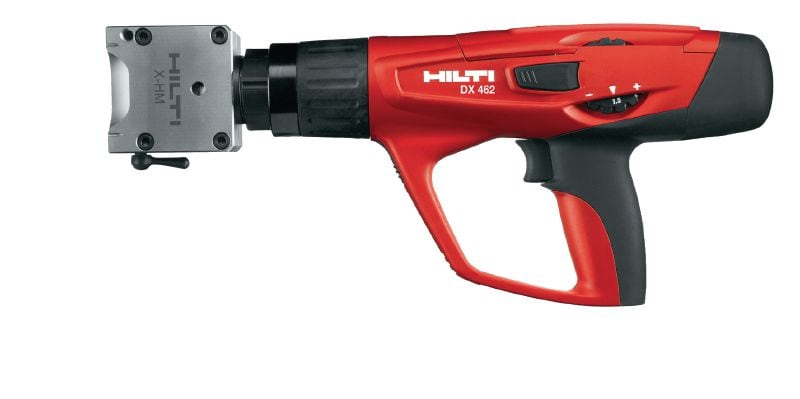

DX 462 HM Metal stamping tool

Fully automatic, high-productivity, powder-actuated tool for marking on cold and hot metal surfaces

  • Dimensions (LxWxH): 545 x 56 x 164 mm
  • Weight: 4.35 kg
  • Fastener intake: Specialty

Technical Data

Dimensions (LxWxH)
545 x 56 x 164 mm
Weight
4.35 kg
Fastener intake
Specialty
Fastener length range
0 - 0 mm
Cartridge type
.27 calibre short, 6.8/11 M10
Automatic piston return
Yes
Bluetooth
No
Hilti Connect
No
Power (max.)
362 J
Power regulation
Yes
Piston type
X-462-PM

Documents

Features & Applications

Features

  • Total mobility and complete independence from electrical power supplies
  • Marking head can accommodate up to 10 characters (depending on character type) in any combination of letters and numbers

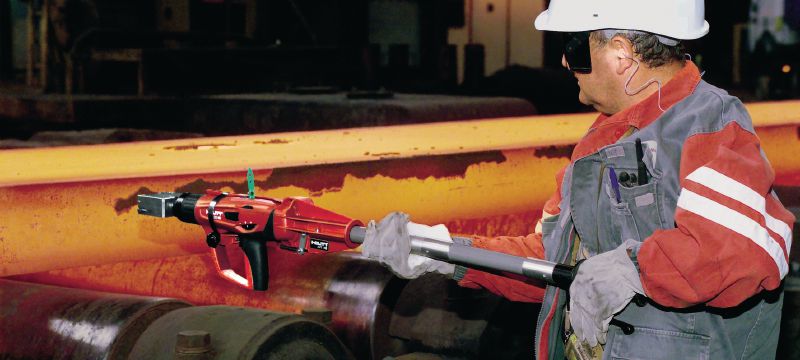

  • X-PT pole tool accessory allows the operator to mark red-hot material from a safer distance
  • Increased reliability with simple cleaning and servicing
  • A simple but secure locking mechanism ensures that the letters or numbers can be changed quickly and easily

Applications

  • Marking on hot metal surfaces with a temperature up to 800°C

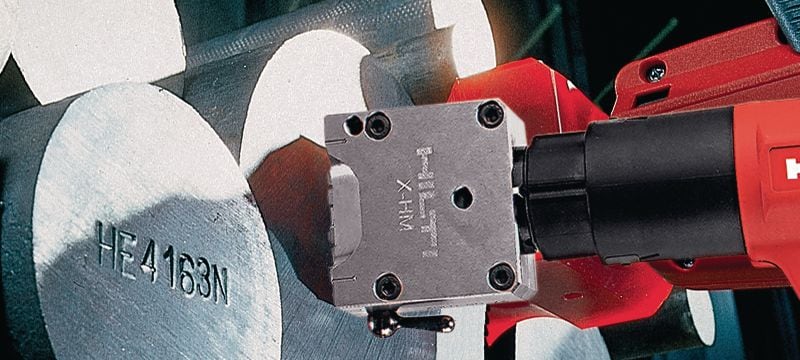

  • Marking on metal components for identification, traceability and quality control in steelworks, manufacturing plants, testing institutes, etc.
  • Marking on slabs, blooms, billets and ingots as well as light-, medium- or heavy-duty steel sections
  • Marking on metals with sharp, low-stress and mini-stress character types in different sizes

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
  • 3-month no-cost period after each paid repair
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 1-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
