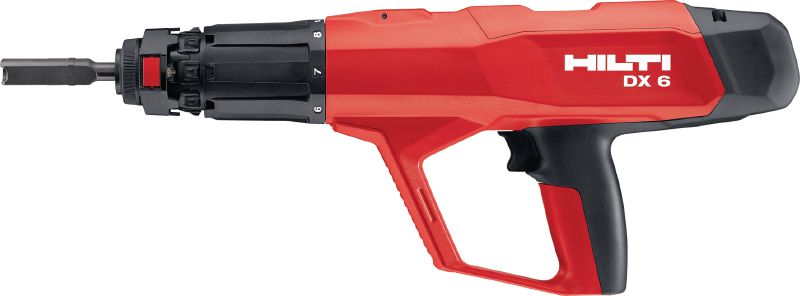

DX 6-GR Powder-actuated grating nailer

L123316 (207555)

Fully automatic powder-actuated nailer for fastening grating and diamond plate

  • Dimensions (LxWxH): 491 x 69 x 190 mm
  • Weight: 3.42 kg
  • Fastener intake: Threaded stud

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
Price loading error occured

Please contact us

Technical Data

Dimensions (LxWxH)
491 x 69 x 190 mm
Weight
3.42 kg
Fastener intake
Threaded stud
Fastener length range
25 - 40 mm
Automatic piston return
Yes
Bluetooth
No
Hilti Connect
No
Power (max.)
335 J
Power regulation
Yes
Piston type
X-6-5-PGR

Documents

pdf Direct Fastening Technology Manual, English [ 6 MB ]
pdf DX 6 - Accessories and consumables compatibility, English [ 1.6 MB ]

Features & Applications

Features

  • Faster – up to 120 grating fastenings per hour by one user
  • Higher productivity – automatic piston return and cartridge advancement equip you to work up to 5 times faster than alternative fastening methods
  • One-step energy level setting – expanded on-tool power adjustment means you can use a single cartridge colour for many fastenings
  • Easy to operate – precise control helps to deliver consistent, more accurate fastening
  • Easier to maintain – bayonet mount to simplify on-site cleaning and servicing

Applications

  • Fastening gratings to steel structures
  • Fastening diamond plates to steel structures

For approval or certificate information, please see individual items.
