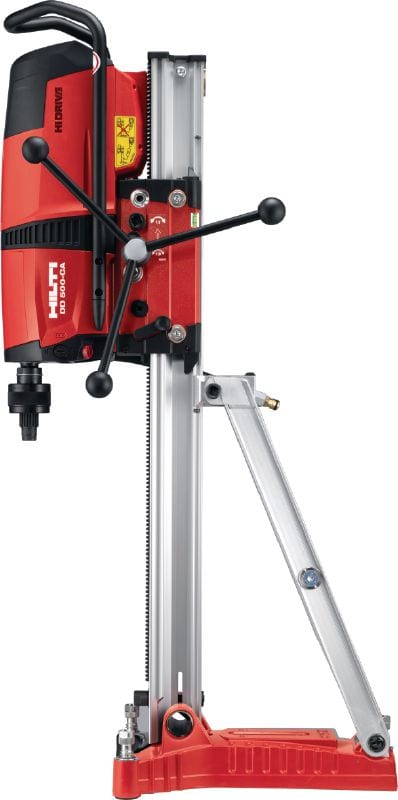

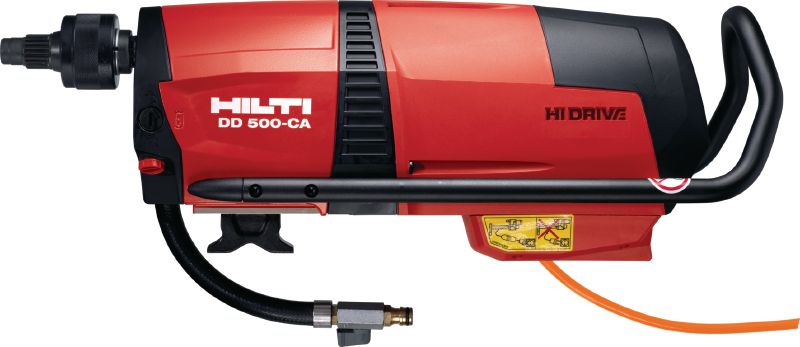

DD 500-CA Core drill

Three-phase heavy-duty diamond coring machine with high-frequency motor and optional auto-feed unit for rig-based concrete coring from 82-600 mm (3-7/32 - 23-5/8”) in diameter

  • Diameter range: 82 - 600 mm
  • Base material: Concrete, Reinforced concrete
  • Operation mode: Rig-based drilling system

Customers also searched for diamond coringcoring holescoring toolscoring reinforced concrete or coring.

Technical Data

Diameter range
82 - 600 mm
Base material
Concrete, Reinforced concrete
Operation mode
Rig-based drilling system
Number of gears
10
No load RPM
gear 4: 571 rpm; gear 5: 510 rpm; gear 6: 429 rpm; gear 7: 367 rpm; gear 8: 327 rpm; gear 9: 265 rpm
Weight according to EPTA Procedure 01/2003
16.6 kg
Weight of complete system
37 kg
Dimensions (LxWxH)
608 x 192 x 216 mm
A-weighted emission sound pressure level
100 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
4.5 m/s²
  1. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • Powerful high-frequency motor with electronic speed control for optimum power delivery over the entire diameter range
  • Compatible with the DD AF-CA automatic feed unit that makes drilling a highly efficient and fully automated process
  • Iron Boost: for a quick performance boost with increased torque when drilling through rebar
  • IP 55 water spray protection ensures drilling performance in adverse conditions
  • Operation within the optimum power band, for peak performance and longer core bit life, is easy with the aid of the LED power indicators

Applications

  • Drilling through-holes and penetrations
  • Manhole openings
  • Deep hole drilling
  • Stitch coring for installing cable trays
  • Large openings for water drainage pipes etc.

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 1-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
