MQV-2D-R Channel connector

IS_HNA_217_o.eps

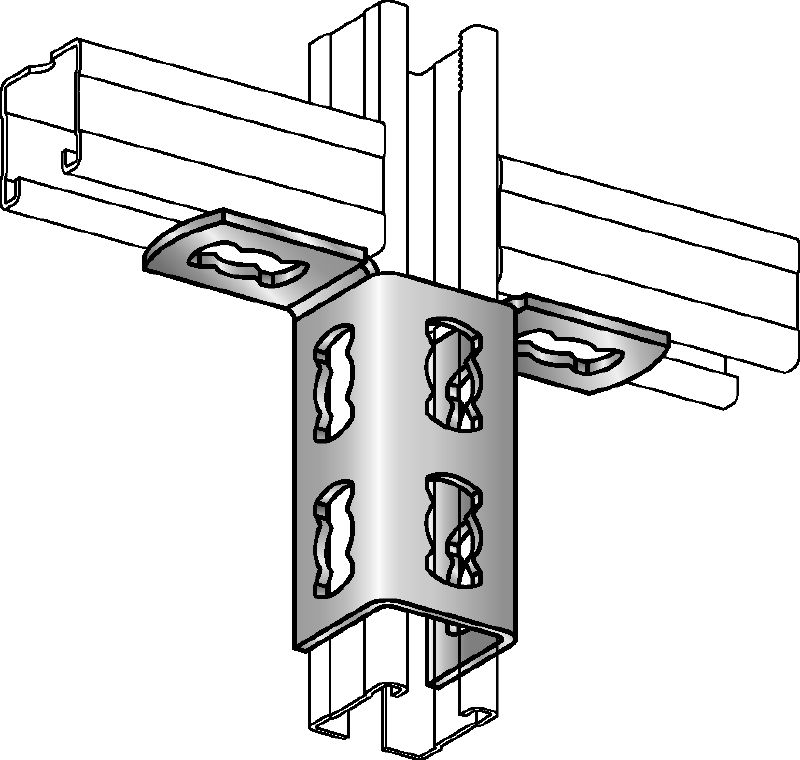

Stainless steel (A4) channel connector for two-dimensional structures

  • Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
  • Surface finish: Outdoor Plus - Stainless Steel
  • Material thickness: 4 mm

Customers also searched for connecting channels, installing metal channels, stainless steel connectors, SS connectors or metal connectors.

Choose options

Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
AED 10,804.29
AED 1,080.43
/
1 Piece

Technical Data

Material composition
Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Material thickness
4 mm
Environmental conditions
Outdoor high pollution (C4 – high / C5)

Documents

pdf Operating Instruction MQV-2/2D, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 524.5 KB ]

Features & Applications

Features

  • Two-dimensional connector – engineered for high load capacity
  • Adjustable – easily fitted and repositioned along strut channels
  • Universal – complete many different applications using few parts
  • Compatible with push button channel connectors – for much faster, adaptable assembly

Applications

  • Connecting two MQ channels on the same plane
  • Compatible with multiple MQ strut channels

For approval or certificate information, please see individual items.
