MQW 45°/135°-R

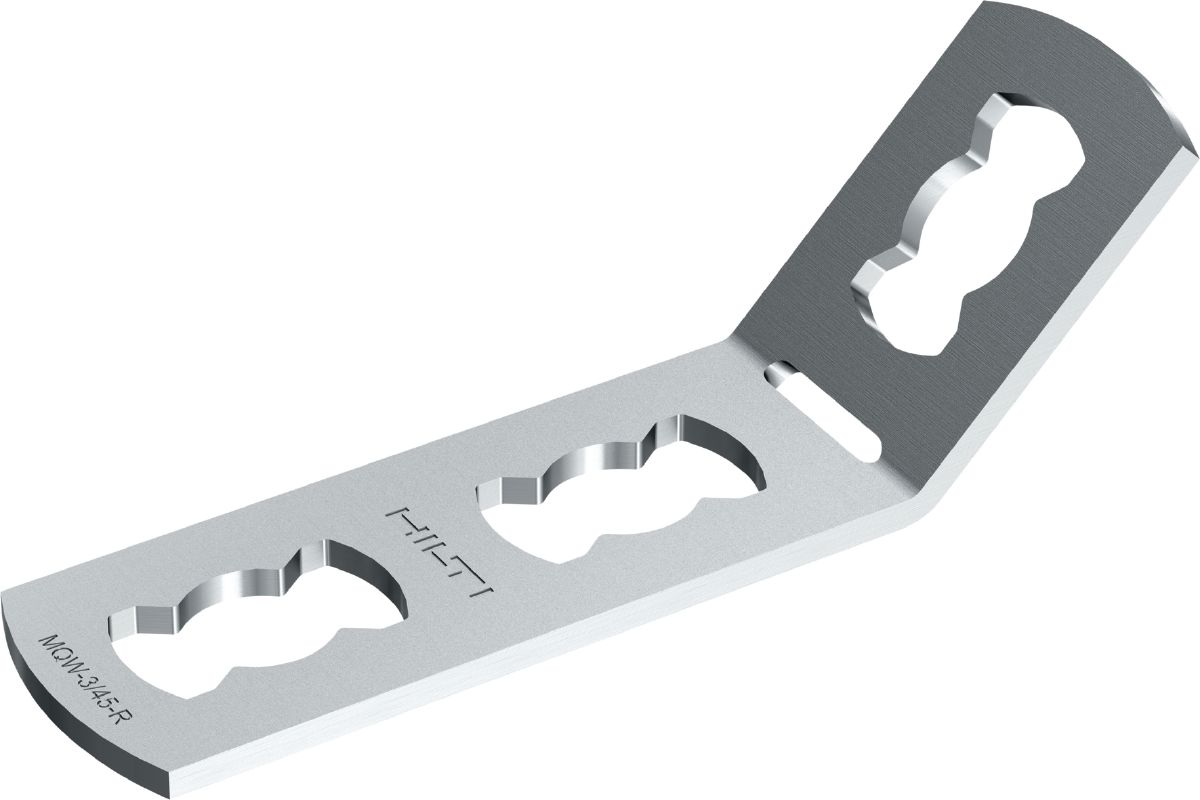

3-hole Angle MQW-3/45-R #304053

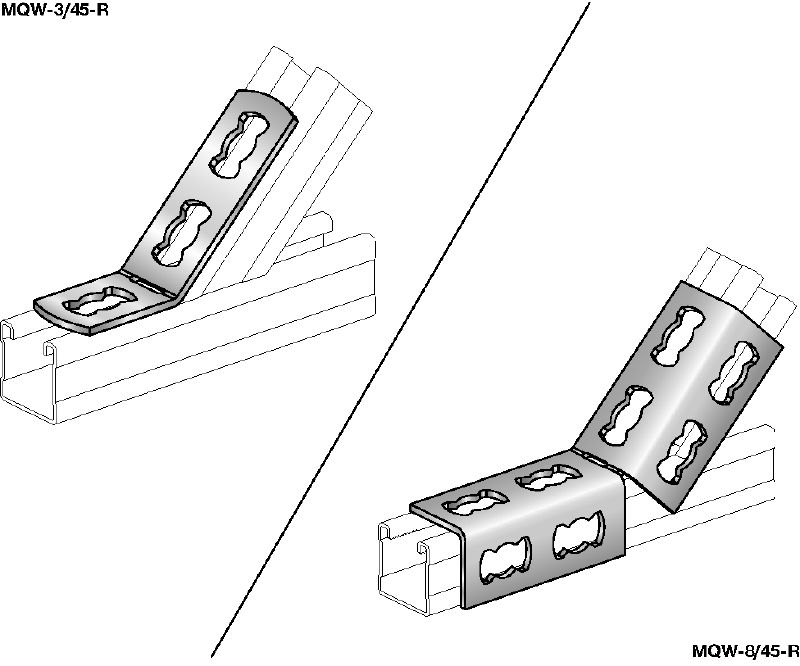

Stainless steel (A4) 45- or 135-degree angle for connecting multiple MQ strut channels

  • Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
  • Surface finish: Outdoor Plus - Stainless Steel
  • Number of holes: 3

Customers also searched for connecting channelsconnectors3 hole connectormetal connectors or installation channel.

Choose options

Angle
  • 45 °
Number of holes
  • 3
Pack size
  • 20 pc
Product options
Quantity
Packs
Total Piece
20
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 6,512.27

AED 325.61 / 1 Piece

Technical Data

14747.eps
Material composition
Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Number of holes
3
Material thickness
4 mm
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Angle
45 °
Weight
155 g

Documents

Features & Applications

Features

  • Compatible with push button channel connectors – for much faster, adaptable assembly
  • Adjustable – easily fit and repositioned along strut channels
  • Compatible with MQN-R push button channel connectors – for much faster, adaptable assembly
  • Universal: few parts for all applications
  • Only few parts required for any application

Applications

  • Assembling channel frames and support structures
  • Compatible with multiple MQ strut channels
