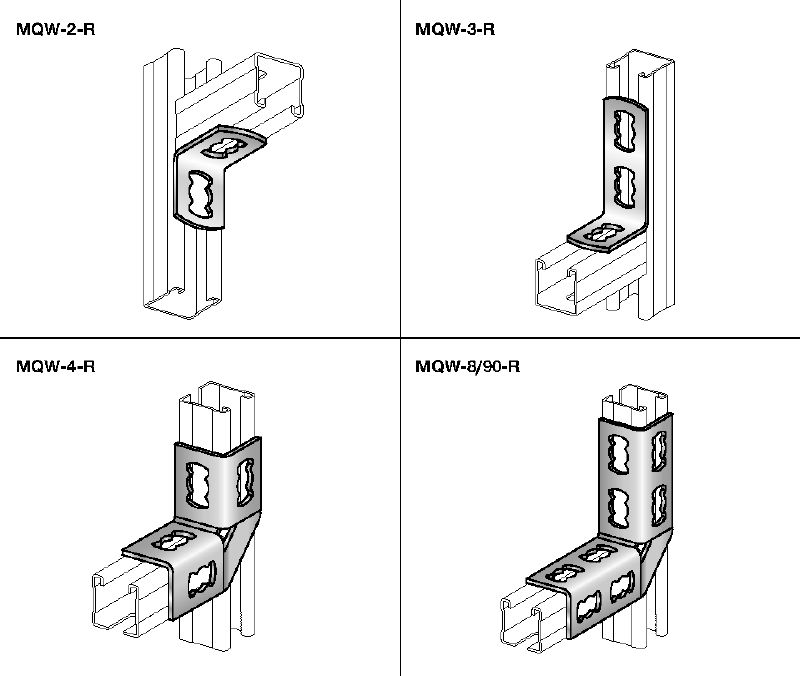

MQW 90°-R Angle connector
Stainless steel (A4) 90-degree angle for connecting multiple MQ strut channels
- Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
- Surface finish: Outdoor Plus - Stainless Steel
- Material thickness: 4 mm
Customers also searched for connecting channels, connectors, 4 hole connector, metal connectors or installation channel.
Technical Data
Material composition
Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Material thickness
4 mm
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Angle
90 °
Documents
Features & Applications
Features
- Compatible with push button channel connectors – for much faster, adaptable assembly
- Adjustable – easily fit and repositioned along strut channels
- Compatible with MQN-R push button channel connectors – for much faster, adaptable assembly
- Universal: few parts for all applications
- Only few parts required for any application
Applications
- Assembling channel frames and support structures
- Compatible with multiple MQ strut channels
For approval or certificate information, please see individual items.
