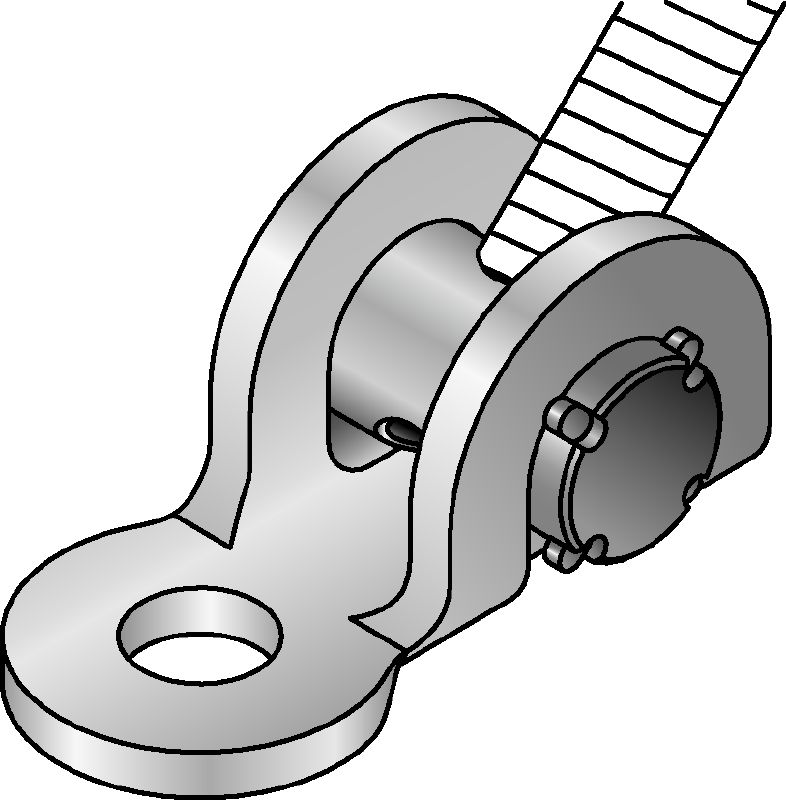

Galvanised pre-assembled threaded rod brace connector with increased load capacity for mounting to base material

  • Material composition: Connector: S275JR - DIN EN 10025, Pin: 11SMnPb37+C
  • Surface finish: Indoor Coated - Electro galvanised
  • Material thickness: 4 mm

Technical Data

IS_MQS_007.eps
Material composition
Connector: S275JR - DIN EN 10025, Pin: 11SMnPb37+C
Surface finish
Indoor Coated - Electro galvanised
Material thickness
4 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Thread - M
M10

Documents

Features & Applications

Features

  • Easier and quicker to mount to M10 threaded rod
  • Maximum installation flexibility due to adjustable angle
  • Higher load capacity – engineered for optimal transfer of seismic loads
  • Easy to handle
  • High load capacity for optimal transfer of seismic loads

Applications

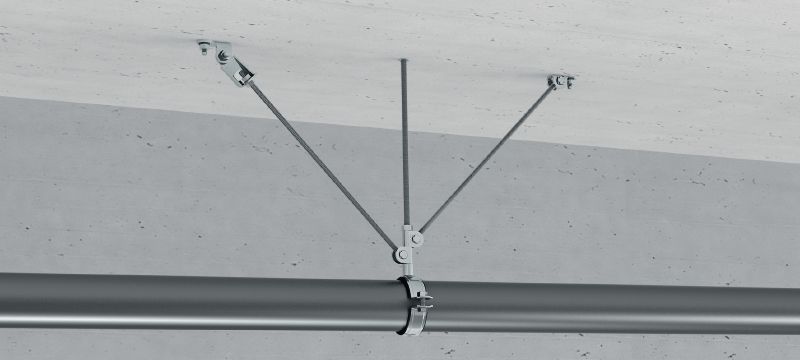

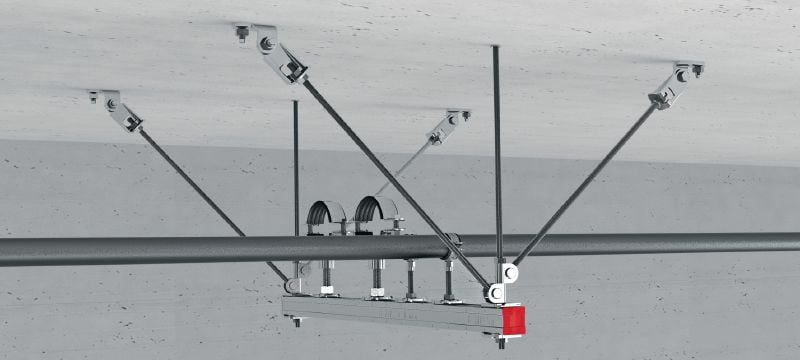

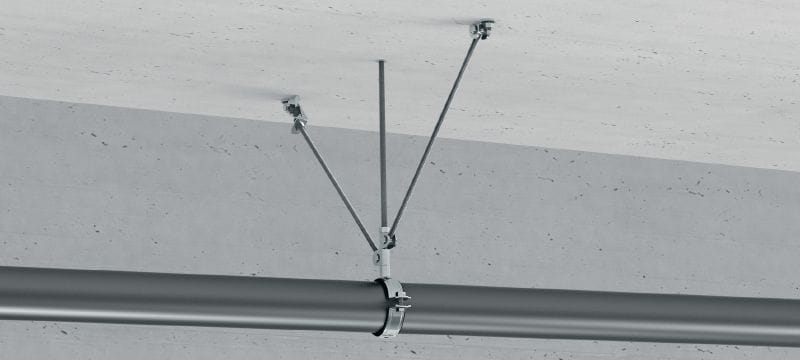

  • Installing pipes, cable trays and air duct supports in seismic-relevant areas
  • Assembling seismic bracing using threaded rods in a wide range of seismic applications

For approval or certificate information, please see individual items.
