HST3 Wedge anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
HST3 M12x115 40/20
HSA stud anchor
HSL-3-G
23428.tif
HST3 (75971)
HST3 (76513)

Ultimate-performance expansion anchor for cracked concrete and seismic (CS)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fire, Seismic

Customers also searched for anchoring in cracked concrete, anchoring in uncracked concrete, anchors or anchoring.

Choose options

Anchor size
  • M8
  • M10
  • M20
  • M24
Anchor length
  • 95 mm
  • 115 mm
  • 160 mm
  • 200 mm
  • 260 mm
Pack size
  • 5 pc
  • 25 pc
  • 50 pc
  • 80 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
From AED 482.30

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (cracked)
Installation tools
TE 30-22 cordless rotary hammer, TE 6-A22 Cordless rotary hammer
PROFIS software
Yes

Documents

Technical information
Approval document
Brochure
Sustainability Documentation
Operating Instruction
pdf Technical data sheet for the HST3 metal expansion anchor, English [ 1.7 MB ]
pdf White paper Ungrouted stand-off base plates EU [ 1.2 MB ]
pdf White Paper Grouted stand-off base plates EU, English [ 894.9 KB ]
pdf White paper Anchor On-site Testing, English [ 1.2 MB ]
pdf White Paper Tips & Tricks On-site Anchor Testing, English [ 1.5 MB ]

Features & Applications

Features

  • Highest resistance to meet geometrically challenging requirements, e.g. reduced member thickness, smallest spacing and edge distances
  • Increased undercut percentage in combination with optimized coating
  • Greater flexibility thanks to two embedment depths included in the ETA
  • Minimum edge and spacing distances reduced by up to 25% compared to HST

Applications

  • All safety-relevant fastenings in cracked and uncracked concrete
  • All safety-relevant fastenings in seismic loading conditions, category C1 for non-structural elements and category C2 for structural elements

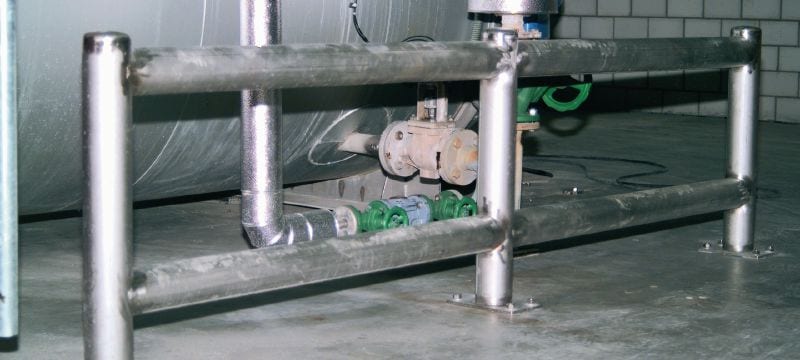

  • Hand rails
  • Racks

For approval or certificate information, please see individual items.
