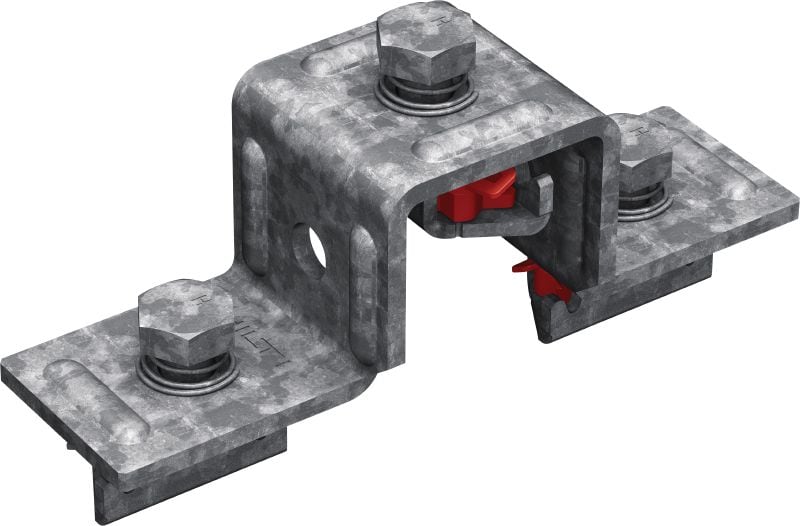

MT-CC-40/50 FL OC Pre-assembled U-Fitting

Clamp with pre-assembled Fast-Lock nut and bolt for channel-to-channel cross-connections with MT strut channel, for outdoor use with low pollution

  • Material composition: Q235B
  • Material and coating: Carbon steel - outdoor coated
  • Material thickness: 4 mm

Technical Data

04_IS_MT_CC_40_50 FL0001 (3658340)
Material composition
Q235B
Material and coating
Carbon steel - outdoor coated
Material thickness
4 mm
Surface finish
Outdoor Coated - HDG
Tightening torque
40 Nm

Documents

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Universal and versatile – compatible with multiple strut channel profiles for completing many applications with fewer parts
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Cross-connection of one strut channel to another channel
  • Suitable for use in moderately corrosive environments

For approval or certificate information, please see individual items.
