MT- FL OC Fast-Lock channel nut with bolt

Fast-Lock MT-FL OC #2399682

Configurator
Technical Data
Documents
Features & Applications
Related Products
L150739 (3506020)
LCG004012_v3_cropped (3640819)
LCG004020_v2_cropped (3652086)
05_IS_MT-FL_0001 (3658346)

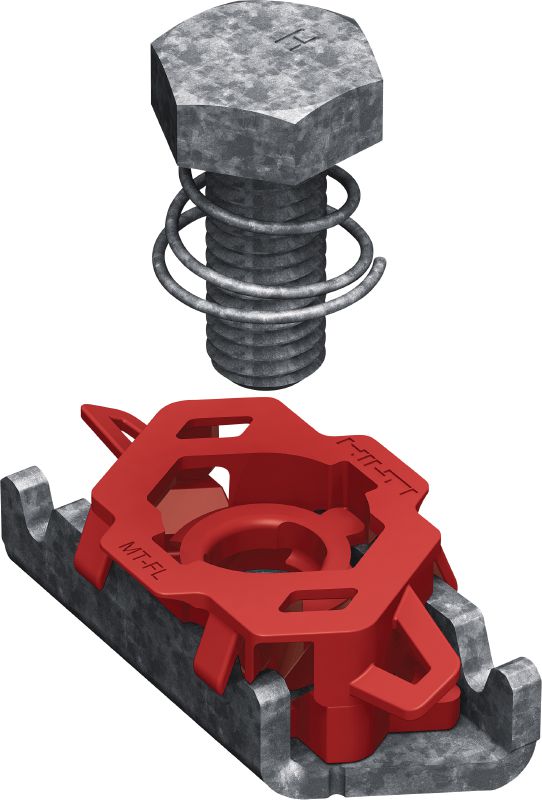

Fast-Lock channel nut with bolt for attaching baseplates and connectors to MT strut channels, for outdoor use with low pollution

  • Material and coating: Carbon steel - outdoor coated
  • Material thickness: 3 mm
  • Surface finish: Outdoor Coated - HDG Plus

Choose options

Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges
AED 2,653.79
AED 13.27 / 1 Piece

Technical Data

Details
Technical illustrations
Material and coating
Carbon steel - outdoor coated
Material thickness
3 mm
Surface finish
Outdoor Coated - HDG Plus
Tightening torque
40 Nm
Weight
0.06 kg

Documents

Approval document
Brochure
Operating Instruction
pdf ETA-24-0607 MT Channel Connectors, English [ 1.3 MB ]
pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]

Features & Applications

Features

  • Faster connections and adjustments – one-handed push-and-turn connections and one-click position adjustments allow you to assemble modular support systems much faster than standard spring nuts
  • Simple to adjust – Fast-Lock nuts are re-adjustable and can be easily disassembled so that you can modify strut channel framing during installation
  • Safety features – designed so that you can see, hear and feel correct channel nut positioning, with pre-holding function to hold connector in place as soon as the mechanism is activated
  • Reliable connections – strong mechanical fixation to the channel flanges provides high shear and pull-out resistance
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Connecting all compatible base plates and connectors to MT strut channels
  • Connection element for U-frame/crossbeam structures
  • Assembling MEP support structures using MT strut channels
  • Suitable for use in moderately corrosive environments
