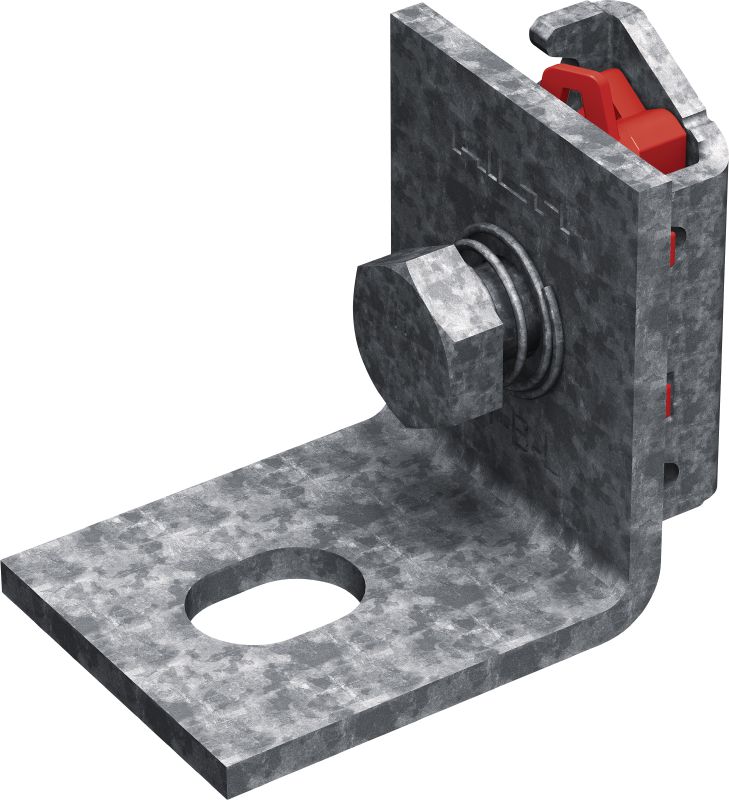

MT-B-L FL OC Pre-assembled light-duty baseplate

Base connector with pre-assembled Fast-Lock nut and bolt, for anchoring light-duty strut channel structures to concrete or steel, for outdoor use with low pollution

  • Material composition: S235JR, Q235B
  • Material and coating: Carbon steel - outdoor coated
  • Material thickness: 4 mm

Technical Data

01_IS_MT-B-L FL_0001 (3658318)
Material composition
S235JR, Q235B
Material and coating
Carbon steel - outdoor coated
Material thickness
4 mm
Surface finish
Outdoor Coated - HDG
Thread connection - M
M12, 1/2 in
Tightening torque
40 Nm

Documents

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Adjustable – slotted anchor hole to simplify baseplate positioning and fastening
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Fastening MT strut channel to concrete floors, walls or ceilings
  • Fastening MT strut channel to structural steel
  • Anchoring metal framing and MEP support structures with extra-light loads to a base material
  • Suitable for use in moderately corrosive environments

For approval or certificate information, please see individual items.
