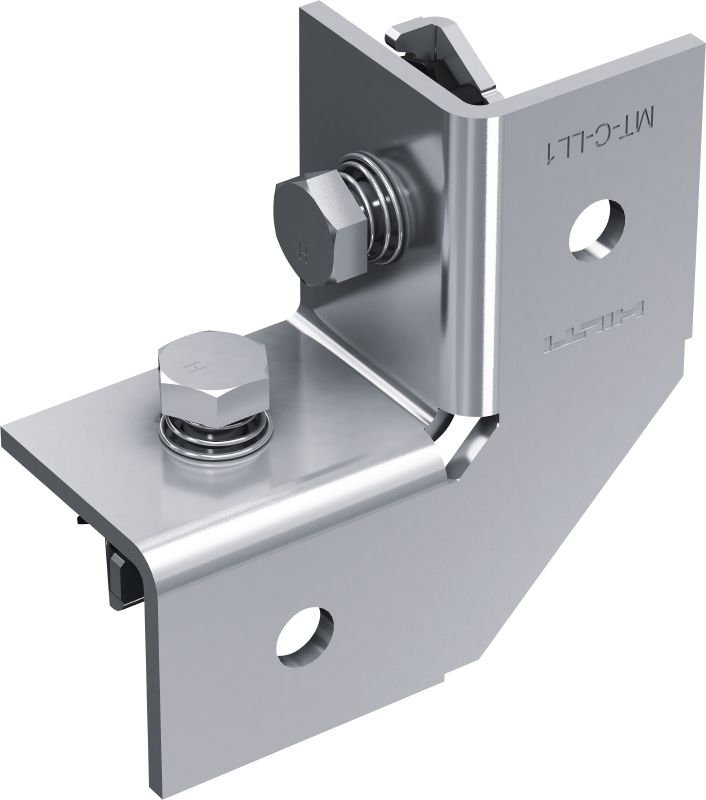

MT-C-LL1 FL Pre-assembled angle connector
Right-angle connector with pre-assembled Fast-Lock nut and bolt for assembling strut channel structures
- Material composition: Q235B
- Material and coating: Carbon steel - indoor coated
- Material thickness: 4 mm
Technical Data
Material composition
Q235B
Material and coating
Carbon steel - indoor coated
Material thickness
4 mm
Surface finish
Indoor Coated - Electro galvanised
Tightening torque
30 Nm
Documents
Features & Applications
Features

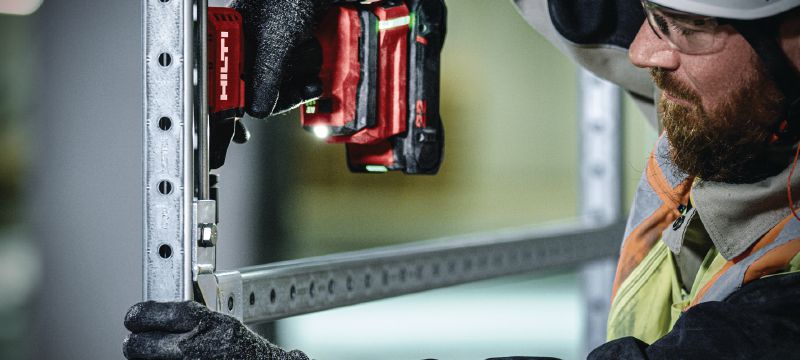

- Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
- Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling and storage
- Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
- Extensive software support – PROFIS Modular Support Engineering, BIMCAD content and Revit® families are all available to streamline design and ordering
Applications
- Fastening L-shaped connections between any MT strut channels
- Assembling 2D metal framing for MEP support structures, such as strut trapeze
- Suitable for use in dry, indoor environments
For approval or certificate information, please see individual items.
