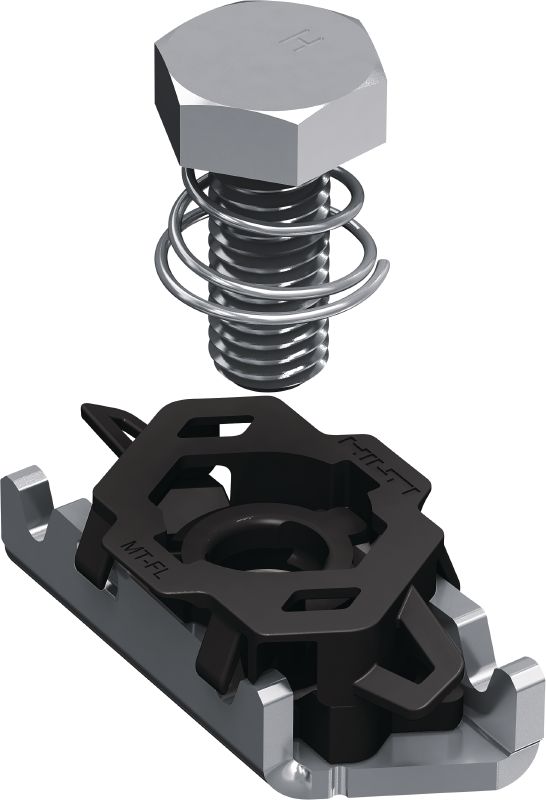

Fast-Lock channel nut with bolt for attaching baseplates and connectors to MT strut channels

  • Material and coating: Carbon steel - indoor coated
  • Material thickness: 3 mm
  • Surface finish: Indoor Coated - Electro galvanised

Technical Data

05_IS_MT-FL_0001 (3658346)
Material and coating
Carbon steel - indoor coated
Material thickness
3 mm
Surface finish
Indoor Coated - Electro galvanised
Tightening torque
30 Nm

Documents

Features & Applications

Features

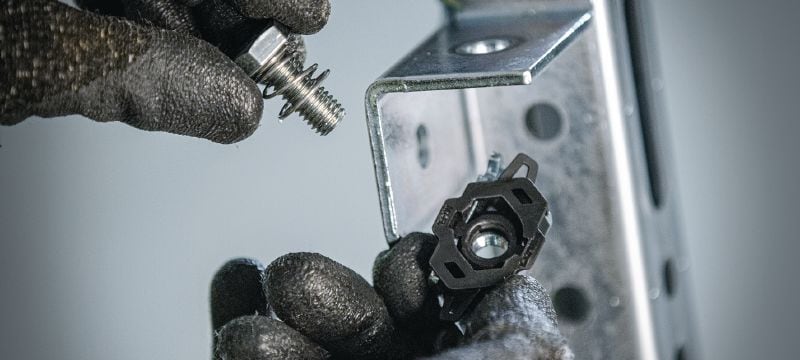

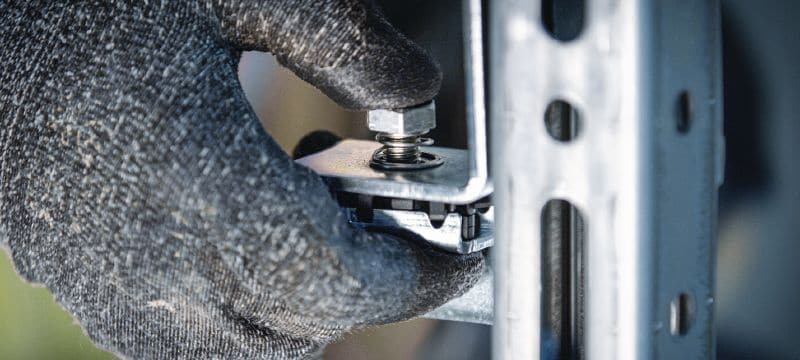

  • Faster connections and adjustments – one-handed push-and-turn connections and one-click position adjustments allow you to assemble modular support systems much faster than standard spring nuts

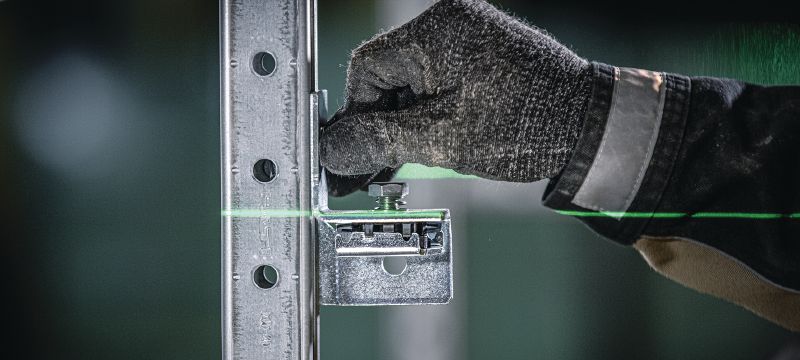

  • Simple to adjust – Fast-Lock nuts are re-adjustable and can be easily disassembled so that you can modify strut channel framing during installation
  • Safety features – designed so that you can see, hear and feel correct channel nut positioning, with pre-holding function to hold connector in place as soon as the mechanism is activated

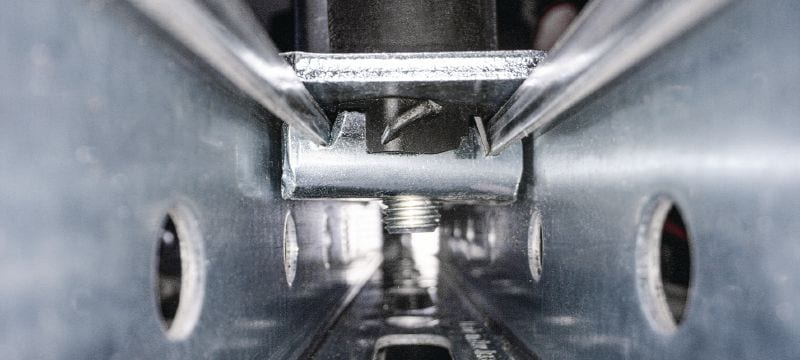

  • Reliable connections – strong mechanical fixation to the channel flanges provides high shear and pull-out resistance
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Connecting all compatible base plates and connectors to MT strut channels
  • Connection element for U-frame/crossbeam structures

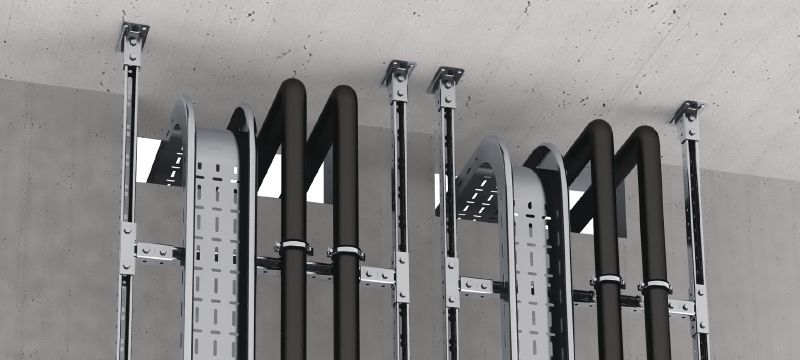

  • Assembling MEP support structures using MT strut channels
  • Suitable for use in dry, indoor environments

For approval or certificate information, please see individual items.
