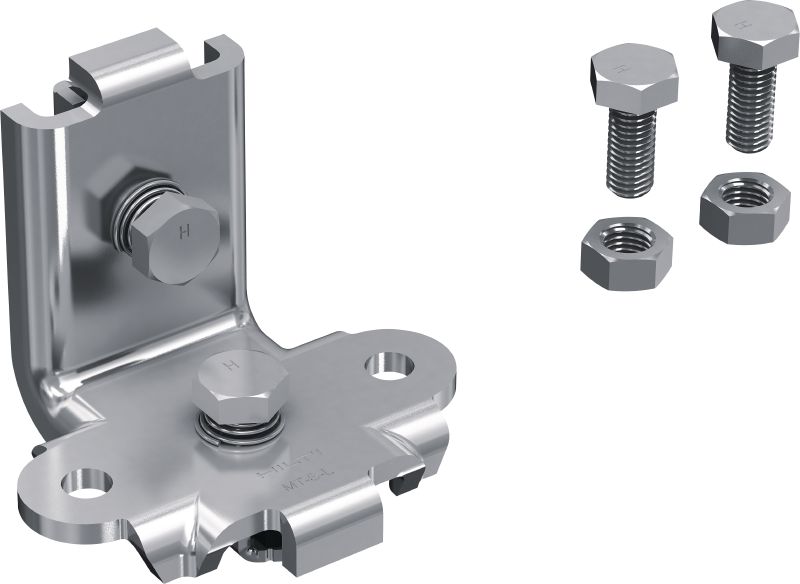

MT-S-L FL Pre-assembled seismic angle bracket
Angle bracket with pre-assembled Fast-Lock nut and bolt for assembling braced MT strut channel structures in seismic zones
- Material composition: Q235B
- Material and coating: Carbon steel - indoor coated
- Material thickness: 5 mm
Technical Data
Material composition
Q235B
Material and coating
Carbon steel - indoor coated
Material thickness
5 mm
Surface finish
Indoor Coated - Electro galvanised
Thread connection - M
M10
Tightening torque
30 Nm
Documents
Features & Applications
Features
- Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
- Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling and storage
- Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
- Winged angle connector – includes connection points to MT-S-H1
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
Applications
- Right-angle connections between MT-40 strut channels with connection to seismic bracing
- Assembling metal framing for MEP support structures in seismic zones
- Suitable for use in dry, indoor environments
For approval or certificate information, please see individual items.
