Flat washer DIN 125 M12 HDG

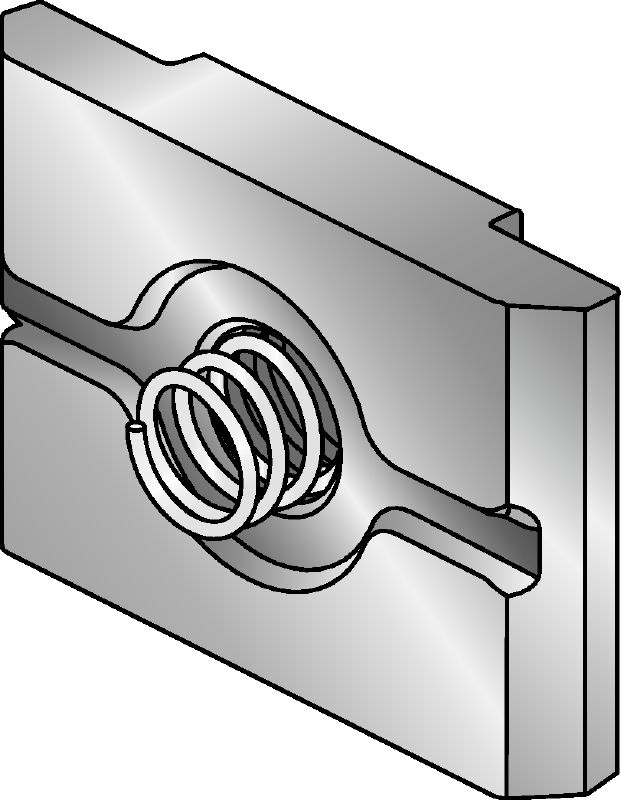

Hot-dip galvanised (HDG) plate for easier fastening and one-handed adjustment of MI and MIQ connectors
- Material composition: Plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-7 - DIN EN 1562; Spring: EN 10270-3
- Surface finish: HDG: 45 µm - DIN EN ISO 1461
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Technical Data
Material composition
Plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-7 - DIN EN 1562; Spring: EN 10270-3
Surface finish
HDG: 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Documents
Features & Applications
Features
- Single-handed installation thanks to integrated anti-rotation device
- Hand plate for single-handed adjustment of the connection
- Hand plate for single-handed adjustment of the connection
Applications
- Fastening connectors that are part of the MI and MIQ modular support systems
- Provides an easy-to-install, reliable solution for the chemical, pharmaceutical and petrochemical industries or in incineration plants and power stations
- Single-handed installation thanks to integrated anti-rotation device
- Hand plate for single-handed adjustment of the connection
For approval or certificate information, please see individual items.
