Guide sleeve MFT-GS 6,5x10 A2

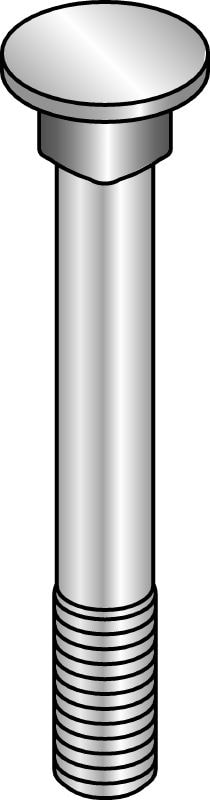

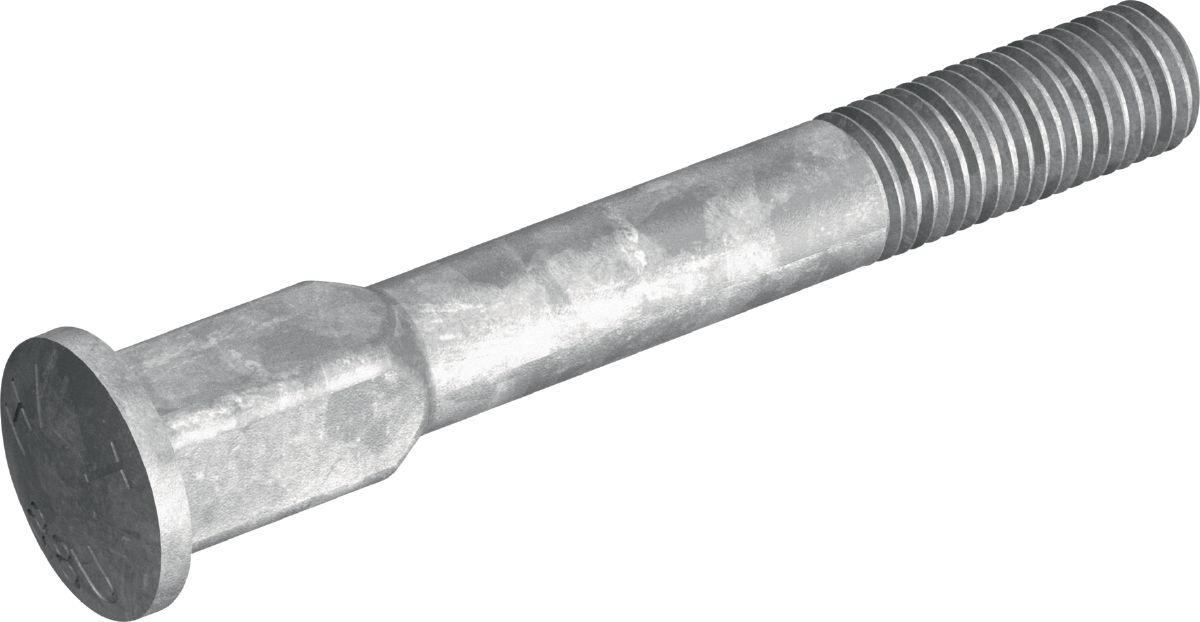

hot-dip galvanised (HDG) screw for easier fastening and one-handed adjustment of MI and MIQ connectors
- Material composition: Steel grade 8.8
- Surface finish: HDG: 45 µm - DIN EN ISO 10684
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Technical Data
Material composition
Steel grade 8.8
Surface finish
HDG: 45 µm - DIN EN ISO 10684
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Documents
Features & Applications
Features
- Parts designed for easy assembly (shaped to prevent rotation)
- Strong, trustworthy connecting element for MI and MIQ connectors
Applications
- Fastening connectors that are part of the MI and MIQ modular support systems
For approval or certificate information, please see individual items.
