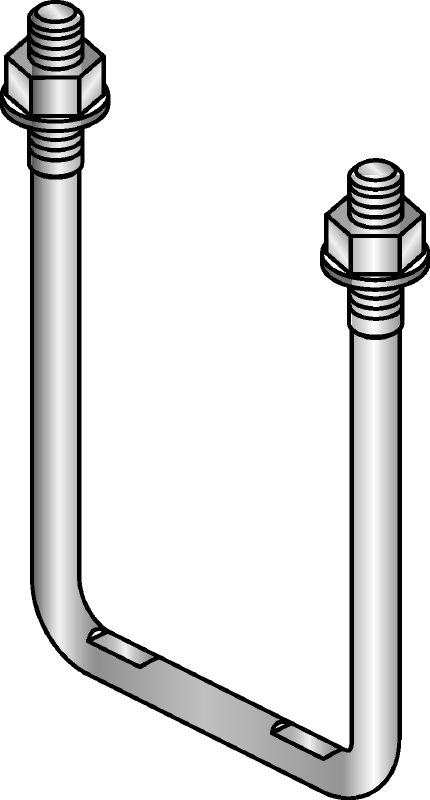

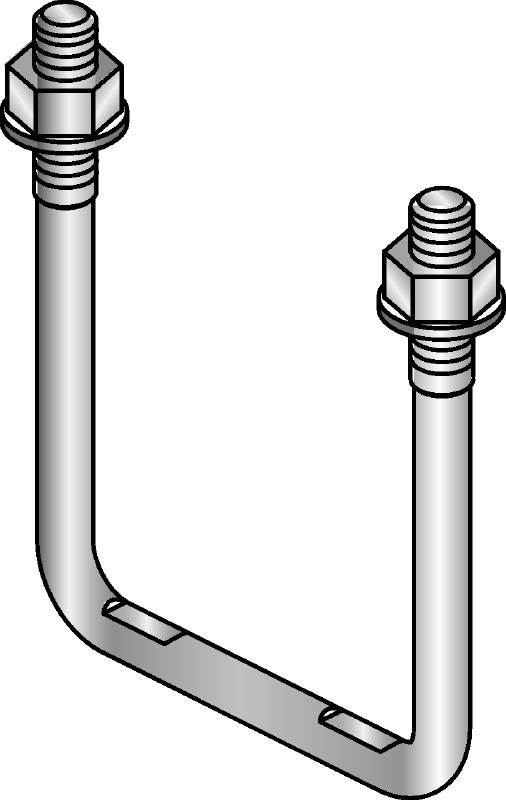

MIA-BO u-bolt

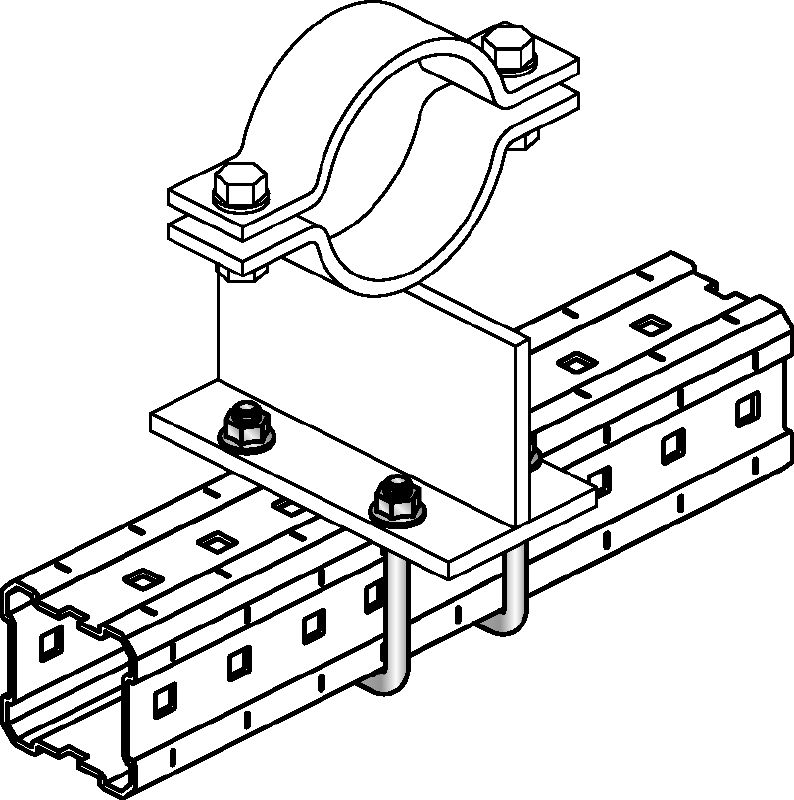

hot-dip galvanised (HDG) u-bolt for fastening pipe shoes to MI girders
- Advantage 01: Quickly and easily install pipe support system for light-duty fixed points
- Material composition: U-bolt: Steel grade 8.8 - ISO 898-1; Nut: Steel grade 8
- Surface finish: HDG: 48 µm - DIN EN ISO 10684
Technical Data
Advantage 01
Quickly and easily install pipe support system for light-duty fixed points
Material composition
U-bolt: Steel grade 8.8 - ISO 898-1; Nut: Steel grade 8
Surface finish
HDG: 48 µm - DIN EN ISO 10684
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Wrench size
19 mm
Documents
Features & Applications
Features
- Quickly and easily install pipe support system for light-duty fixed points
- Part of the MQ system
Applications

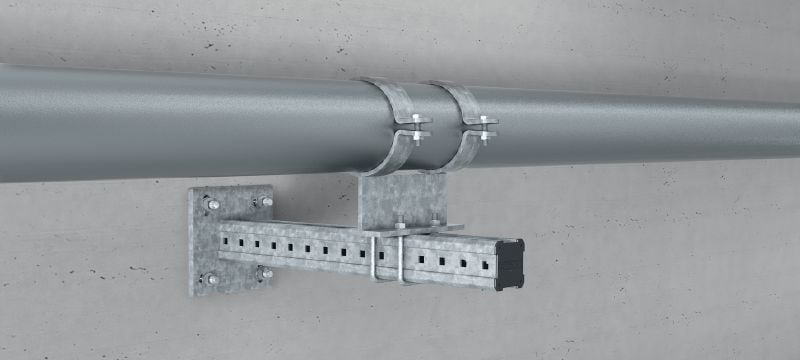

- Fastening pipes, with clamping system for fixed supports
- Installing light-duty fixed points
For approval or certificate information, please see individual items.
