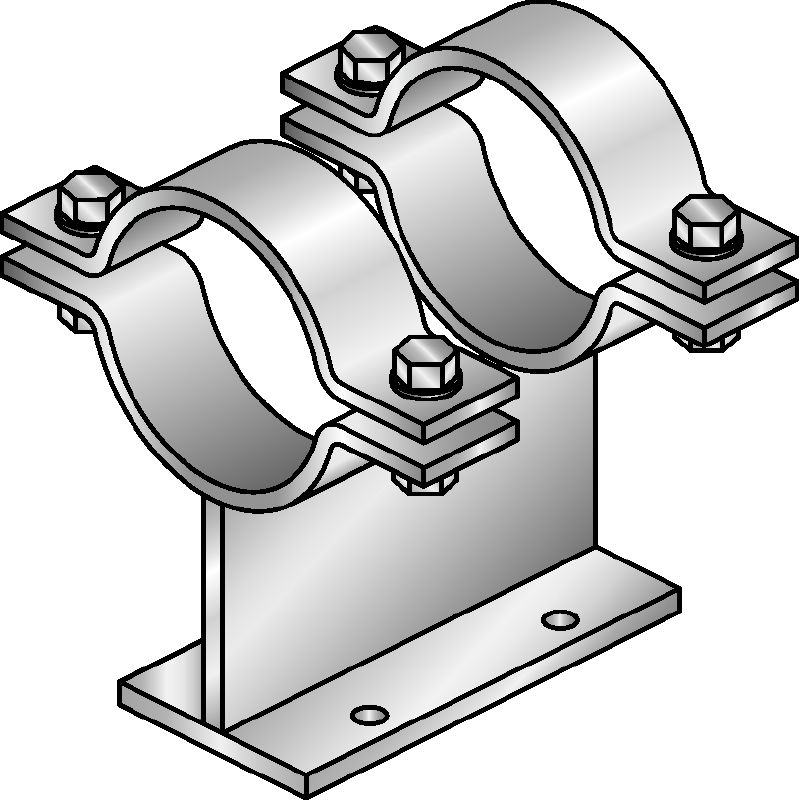

Hot-dip galvanised (HDG) double pipe shoes for fastening DN 25-300 pipes to MI girders in heavy-duty applications

  • Material composition: Connector: S235JRG-2 - DIN EN 10025; bolt: 8.8 grade steel; nut: 8 grade steel
  • Surface finish: HDG: connector 70 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Technical Data

MI-PS2/1
Material composition
Connector: S235JRG-2 - DIN EN 10025; bolt: 8.8 grade steel; nut: 8 grade steel
Surface finish
HDG: connector 70 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Features & Applications

Features

  • With mounting holes for installing light-duty fixed points
  • Additional diameters available on request
  • Easy to fit, low friction
  • Heavy-duty version for high loads

Applications

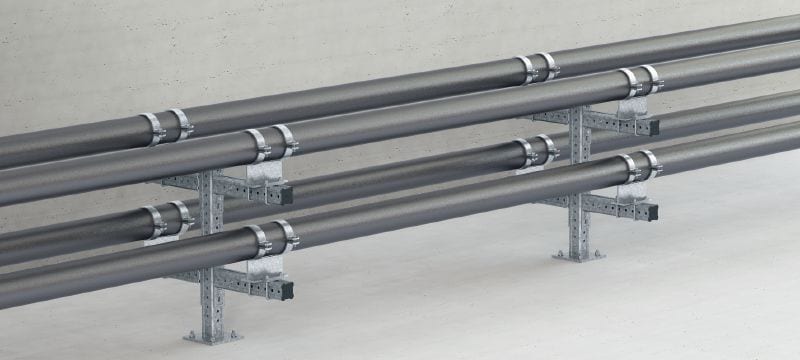

  • Fastening pipes, with strap for fixed point, with connector for guide support
  • Applications in the chemical, pharma and petrochemical industries or in incineration plants and power stations
  • Installing light-duty fixed points
  • Heavy-duty version for pipe diameters from DN 25-DN 300
  • For pipe diameters from DN 25 to DN 300

For approval or certificate information, please see individual items.
