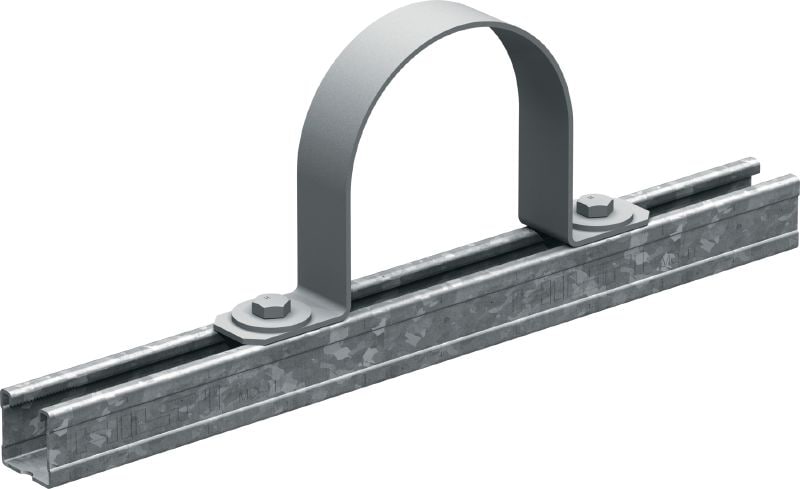

MP-US OC Pipe strap

Pipe strap MP-US 133 OC #2288768

Outdoor coated (OC) pipe strap for universal piping applications

Diameter - D: 136.6 mm
Approvals: UL approved EX15279
Height - H: 131 mm

premium

Choose options

Diameter - D

136.6 mm

Nominal pipe size

125 mm

Pack size

10 pc

Product options

Quantity

Packs

Total Piece

You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 409.47

AED 40.95 / 1 Piece

Technical Data

Diameter - D

136.6 mm

Approvals

UL approved EX15279

Height - H

131 mm

Material composition

DX51D-ZM300 - EN 10346:2015

Surface finish

Outdoor Coated - ZM

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Cross section thickness - s

3 mm

Cross section width - b

40 mm

Width - B

263 mm

Distance between holes - A

208 mm

Product class

Premium

Documents

Features & Applications

Features

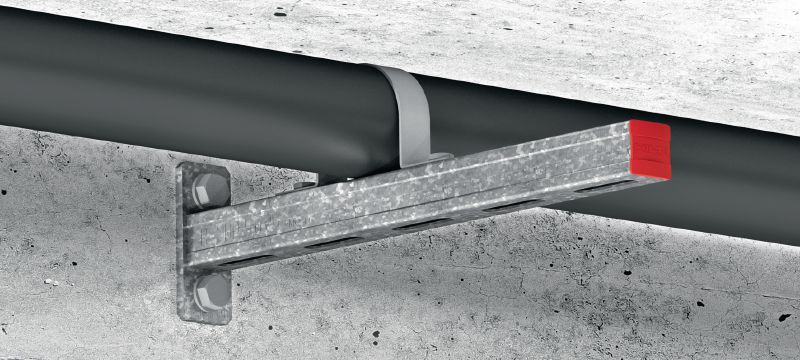

Suitable for suspended or standing installation applications
Designed for use with open channel profiles, closed girders and bracket arms
Approved for sprinkler applications under VdS
Approved for sprinkler applications under UL / NFPA

Applications

Universal pipe fixation up to 12"
single-point fastening for sprinkler applications
Installation of non-insulated pipes in industrial environment
