Galvanised wing nut for connecting modular support system components to MM strut channels

  • Product class: Premium
  • Material composition: Nut: DC04 - DIN EN 10130, Wing: PA
  • Surface finish: Indoor Coated - Electro galvanised
premium

Customers also searched for fastening bolts to channelfastening threaded rod to channelwing nutfastening connectors or installation channel.

Technical Data

MM-WN
Product class
Premium
Material composition
Nut: DC04 - DIN EN 10130, Wing: PA
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Features & Applications

Features

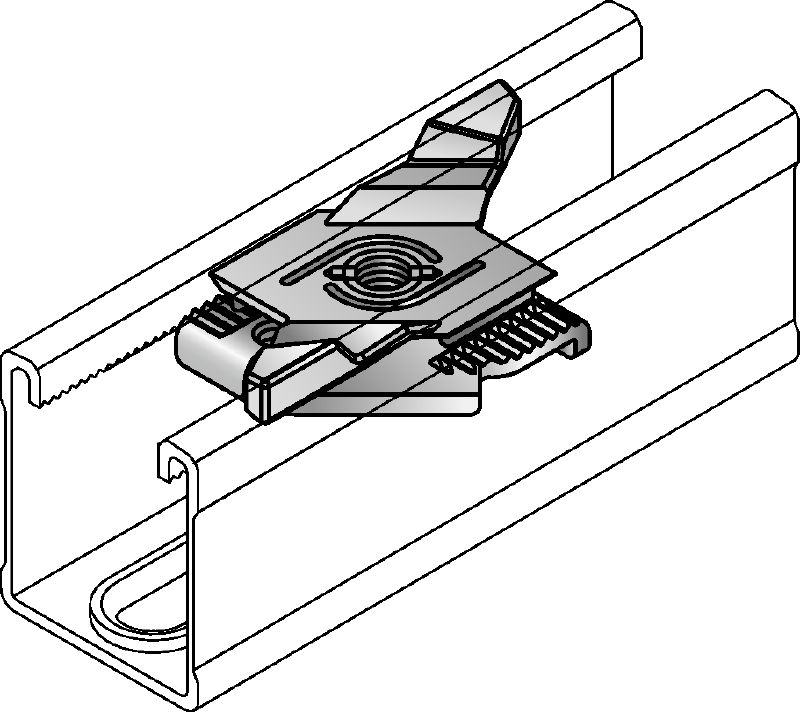

  • Quick connection of modular support system components to the open side of MM strut channel
  • Flexible wings – for quicker installation and positioning within MM strut channel openings
  • Serrated surfaces – for quicker, more accurate adjustment
  • Wing nut is flush mounted
  • Easy to handle

Applications

  • Fastening pipes and air ducts
  • Fastening cable trays and cable baskets

For approval or certificate information, please see individual items.
