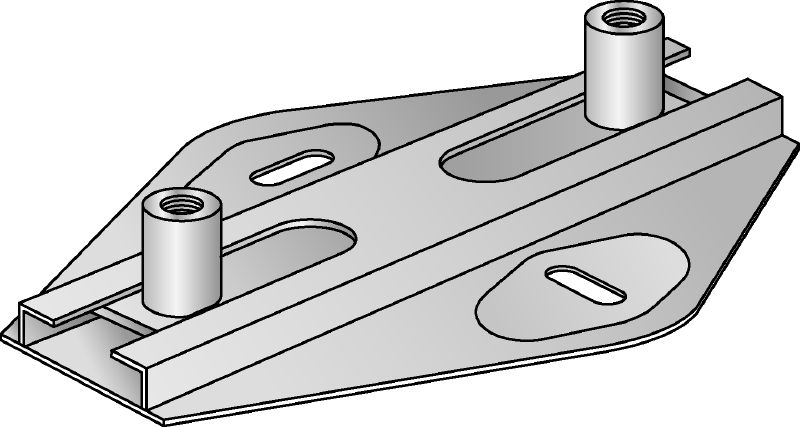

MSG 1,75 Double slide connector

Slide connector MSG 1,75 M8/10D #248209

Galvanised double slide connector for light-duty heating and refrigeration applications

  • Thread connection - M: M8, M10
  • Height - H: 27 mm
  • Maximum load - F: 1.75 kN

Choose options

Thread connection - M
  • M8, M10
Height - H
  • 27 mm
Maximum load - F
  • 1.75 kN
Pack size
  • 10 pc
Product options
Quantity
Packs
Total Piece
10
You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 1,602.20

AED 160.22 / 1 Piece

Technical Data

Thread connection - M
M8, M10
Height - H
27 mm
Maximum load - F
1.75 kN
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Temperature resistance
-40 - 130 °C
Base material type
Concrete, Steel, Wood
Max. displacement
94 mm
Coefficient of sliding friction
0.18
Weight
0.56 kg

Documents

Features & Applications

Features

  • Suitable for suspended or standing installation applications
  • Load classes and capacities matched to Hilti pipe clamps
  • Stiffened base plate fits MQ modular support system
  • Smooth sliding movement on integrated plastic guide
  • Slide cannot pull out

Applications

  • Mounting pipes subject to thermal elongation and contraction
  • single-point fastening of pipes or in combination with modular support systems
  • Recommended for use in dry, interior environments
