MFP-CHD fixed point compact

Fixed point compact MFP-CHD #2238264

LCG002467_v1 (198589)

LCG002468_v1 (198590)

LCG002469_v1 (198591)

LCG002549_v1_cropped (198767)

LCG002550_v1_cropped (198769)

IS_MFP-CHD_0001 (199449)

LCG002467_v1 (198589)

LCG002468_v1 (198590)

LCG002469_v1 (198591)

LCG002549_v1_cropped (198767)

LCG002550_v1_cropped (198769)

IS_MFP-CHD_0001 (199449)

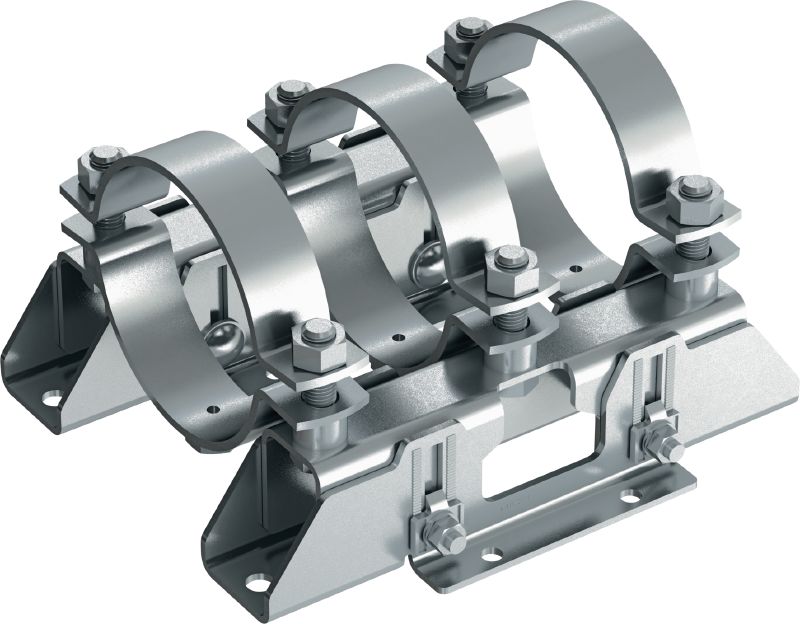

Galvanised compact fixed point for extra-heavy-duty applications up to 44 kN

Material composition: Steel
Surface finish: Indoor Coated - Electro galvanised
Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Piece

1

You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

AED 2,539.30

AED 2,539.30 / 1 Piece

Technical Data

IS_MFP-CHD_0001 (199449)

Material composition

Steel

Surface finish

Indoor Coated - Electro galvanised

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Base material type

Concrete, Steel

Weight

11.65 kg

Documents

Features & Applications

Features

Pipes can be installed closer to base material
Easier height adjustment
Designed for easier retrofit installation
Suitable for installation on tilted pipes
Easier to assemble and instal

Applications

To be used in combination with MFP-PC fixed points pipe clamps
Given load values apply only when using Hilti HST and HUS anchors
To be used in applications with limited space for installing
