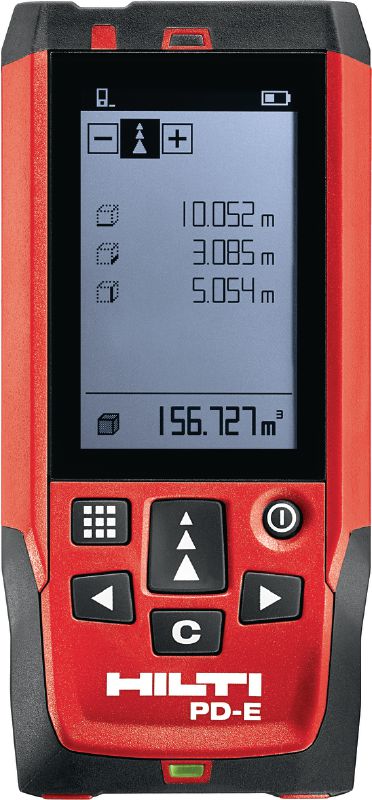

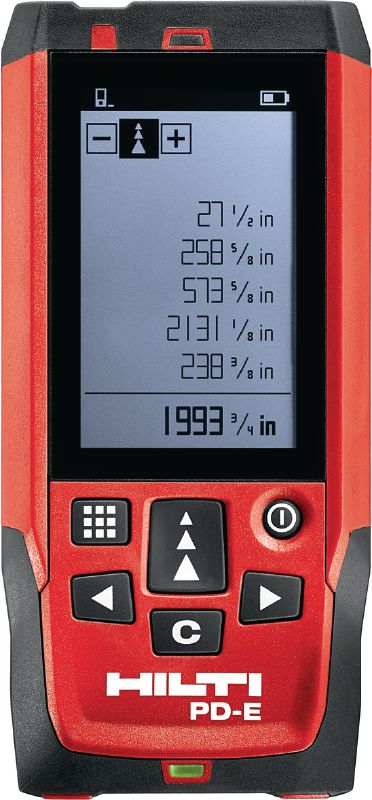

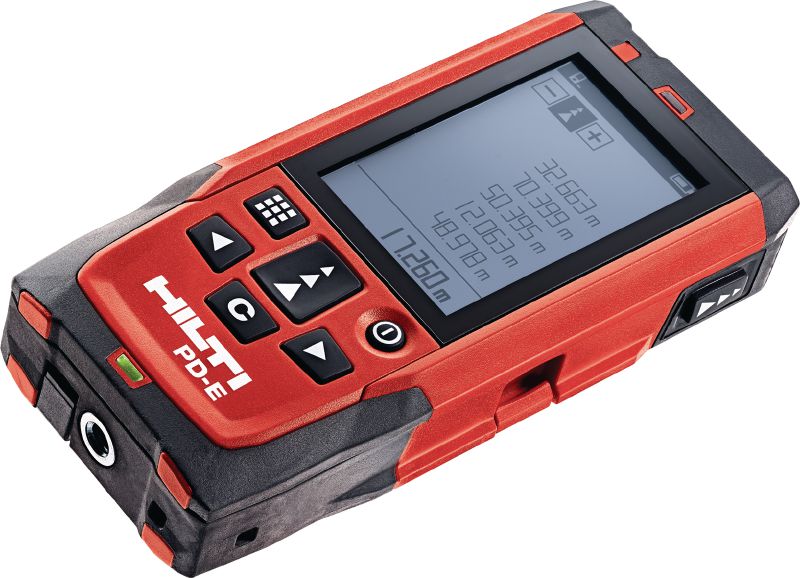

Outdoor laser meter with integrated viewfinder for measurements up to 200 m / 650 ft

  • Measuring range: 0 m - 200 m
  • Measurement accuracy: 1.0 mm
  • Measuring functions: Single and continuous measurement, Outdoor mode, Digital level

Customers also searched for distance measuring toolexterior measuring toolmeasuring lengths of pipesmeasuring surface areas or construction measuring tools.

Technical Data

Measuring range
0 m - 200 m
Measurement accuracy
1.0 mm
Measuring functions
Single and continuous measurement, Outdoor mode, Digital level
Calculation functions
Addition, Subtraction, Area, Volume, Painters area, Setting out, Min/max, Timer, Offset, Memory (30x), Trapezoid (2x), Pythagoras (3x), Indirect measurement (4x)
Data memory
Last 30 measurements, Calculation results with graphics
Battery type
2 x 1.5 V (AAA)
Laser class
<1 mW, 635 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
IP protection class
IP 65 (EN 60529)
Interface
none

Documents

Features & Applications

Features

  • High-quality laser module enables long-range measurements even under the toughest outdoor conditions
  • Purpose-built outdoor display can be read even in very bright sunlight
  • Built-in optical viewfinder for outdoor measurements
  • Rugged and durable to resist hard jobsite environments
  • Built-in 360 degree tilt sensor and smart estimation functions support measurements in challenging situations

Applications

  • Measuring quickly and safely in places where access is difficult
  • Measuring surface areas for quotations in renovation work

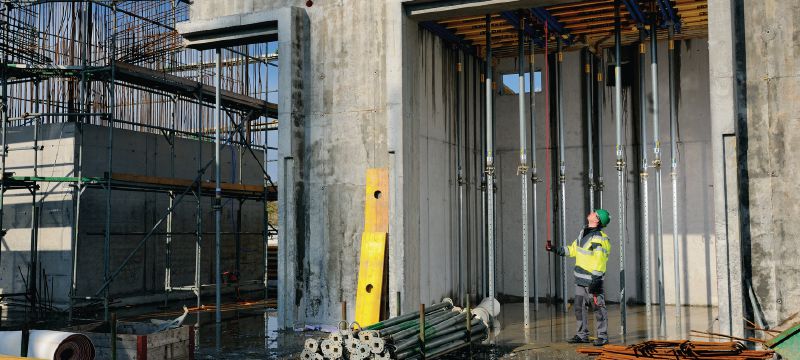

  • Determining the length or height of objects that cannot be directly accessed (remote measurement)

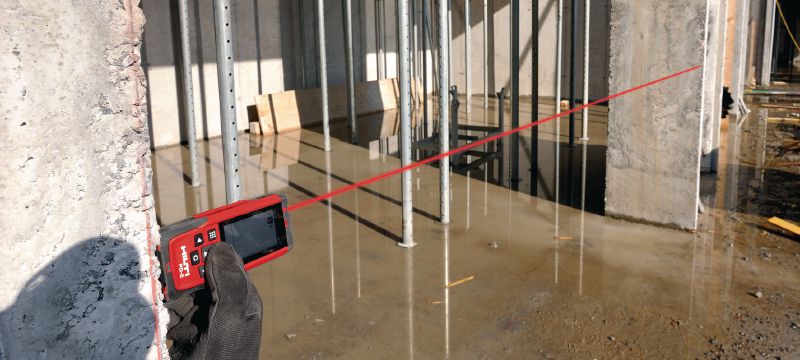

  • Measuring long distances using outdoor mode
  • Easy measurement of roof lengths using the trapezoid function

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
  • 3-month no-cost period after each paid repair
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 1-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
