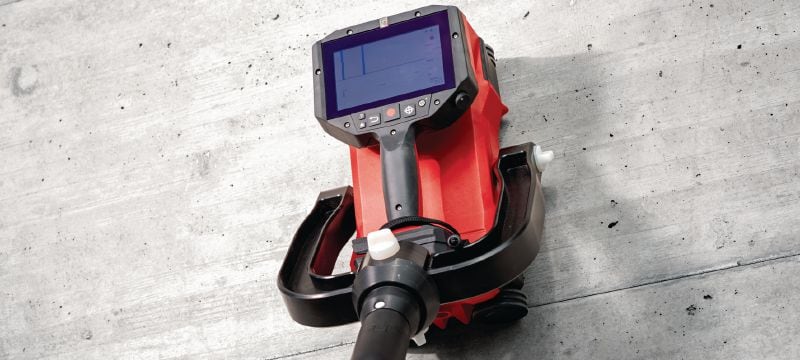

Concrete detector for rebar localisation, depth measurement and size estimation in structural analysis

  • Max. detection depth for object localization: 200 mm
  • Localisation accuracy: 1% +/-3mm mm
  • Minimum distance between two neighbouring objects: 30 mm

Technical Data

Max. detection depth for object localization
200 mm 1
Localisation accuracy
1% +/-3mm mm 2
Minimum distance between two neighbouring objects
30 mm
Data memory (scanner)
200 scans
Working temperature range
-10 - 50 °C
Weight with batteries
2 kg
  1. Performance and accuracy can be significantly affected by site conditions. See operating instructions.
  2. Performance and accuracy can be significantly affected by site conditions. See operating instructions.

Documents

Features & Applications

Features

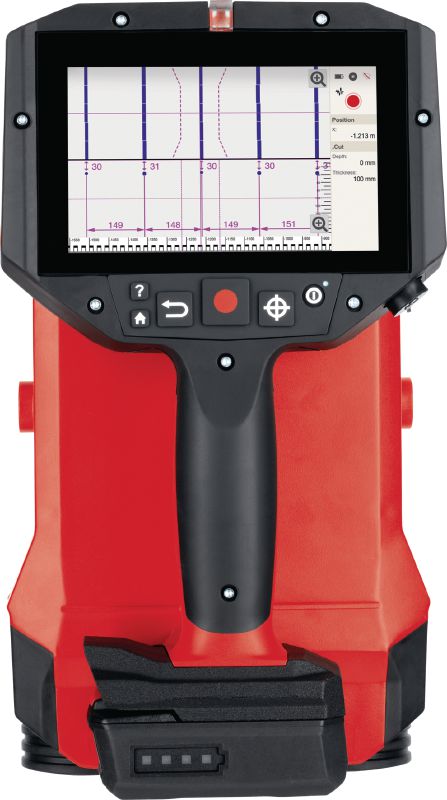

  • Integrated display provides rebar layout visuals in top view and sectional view for on-the-spot structural analysis
  • Smart algorithm helps accurate depth measurements for rebar

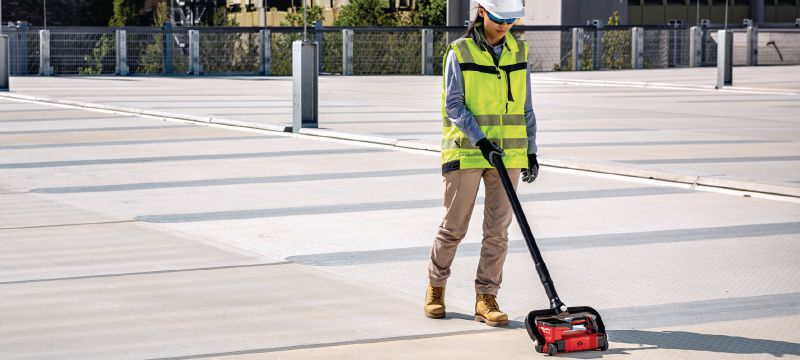

  • Wide sensor area enables quick and easy scan over large areas
  • Record scan data for documentation and structural analysis

Applications

  • Verification and analysis for 1st layer rebar

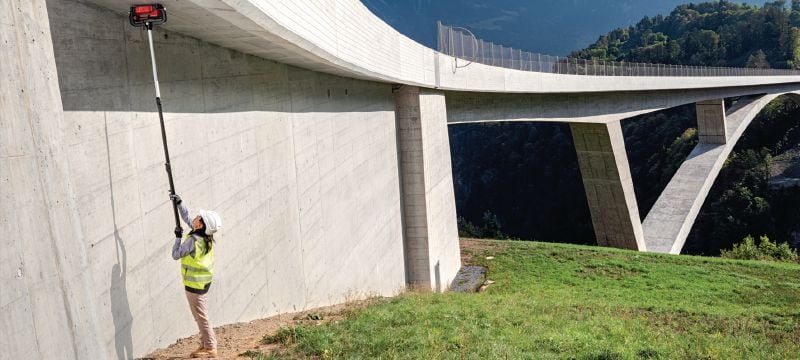

  • Checking concrete cover over large areas for structural repair work

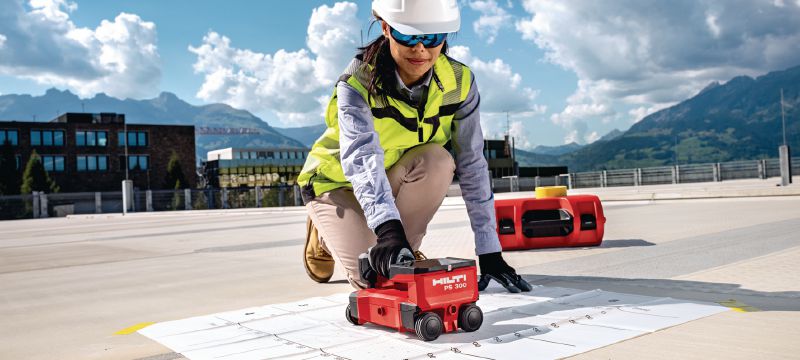

  • Building acceptance inspections and quality control

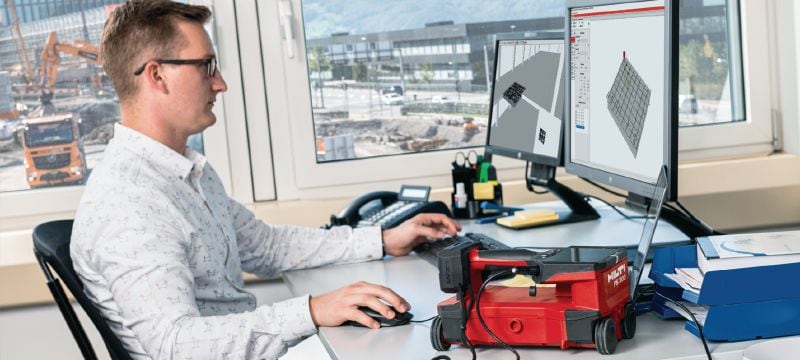

  • Generation of structural assessment reports including statistics and visual presentation in 2D/3D views of areas

For approval or certificate information, please see individual items.
