S-BT GR Screw-in stud

S-BT-MR M8/7 SN 6, S-BT-GR M8/7 SN 6 (84704)

S-BT-GF/ S-BT-GR (85515)

L088171_cropped (141515)

S-BT-GF/ S-BT-GR (85517)

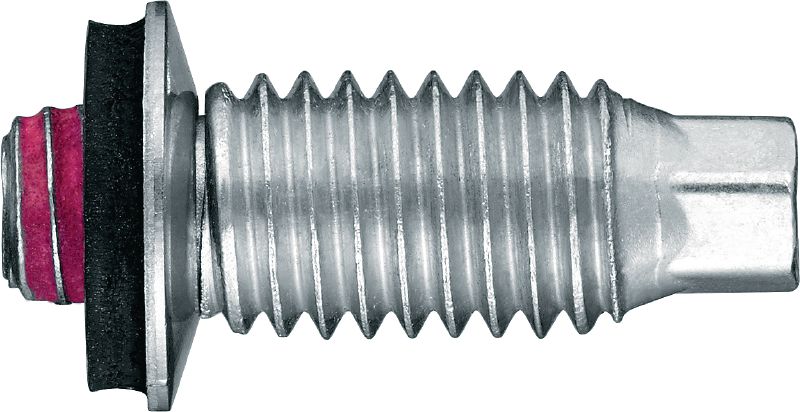

Threaded screw-in stud (stainless steel, metric thread) for grating fastenings on steel and aluminium in highly corrosive environments

Base materials: Steel
Minimum thickness of base material (steel): 6 mm
Corrosion protection: Stainless steel A4(316) or equivalent

ultimate

Customers also searched for Stainless steel studs, Stainless stud, Threaded stud, Stainless threaded stud or Studs for stainless steel.

Choose options

Product options

Quantity

Packs

Total Pieces

1

You can not see your company prices

Please Log in or register to see your company prices.

Ex Vat and Packaging/Forwarding charges

Price loading error occured

Please contact us

Technical Data

Base materials

Steel

Minimum thickness of base material (steel)

6 mm

Corrosion protection

Stainless steel A4(316) or equivalent

Material

Duplex stainless steel (1.4462)

Approvals

ABS, BV, DNV, ETA, ICC-ES, LR, RMR

Product class

Ultimate

Documents

Features & Applications

Features

No rework necessary on coated steel – corrosion protection remains intact
For use in highly corrosive environments (C4 and C5) – suitable for most energy and industry applications
Suitable for use on steel with a thickness of 6 mm (1/4") and greater
Portable, cordless system eliminates the need for long electric extension cords
No propellant required

Applications

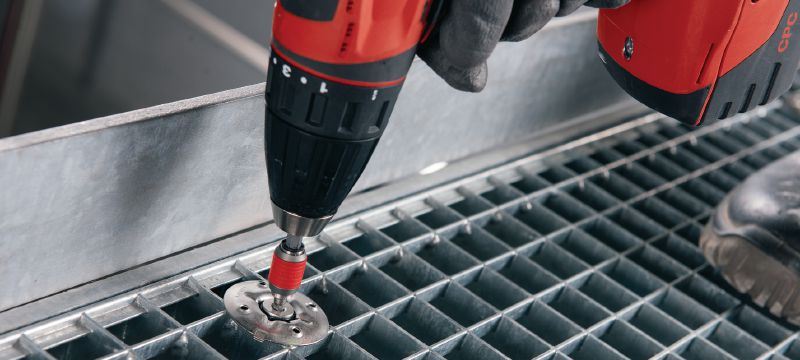

Fastening grating to steel structures using the X-FCM-R grating disc

For approval or certificate information, please see individual items.
