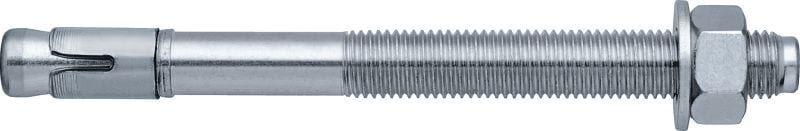

HSB Wedge anchor
Economical wedge anchor with ETA approval for static loads in uncracked concrete (carbon steel)
- Material, corrosion: Carbon steel
- Head configuration: Externally threaded
- Approvals / test reports: ETA
Customers also searched for Everyday economical expansion anchor or Expansion anchor.
Technical Data
Material, corrosion
Carbon steel
Head configuration
Externally threaded
Approvals / test reports
ETA
Base materials
Concrete (non-cracked)
Type of fastening
Pre-fastening, Through-fastening
Installation tools
TE 6-A36 Cordless rotary hammer
PROFIS software
No
Documents
Features & Applications
Features
- Torque-controlled mechanical expansion anchor which allows immediate load application
- Raised impact section prevents thread damage during installation
- Drill bit size matches the anchor size for easy installation
- Suitable for pre- and through-fastening
- European Technical Assessment (ETA) option 7 approval for uncracked concrete
Applications
- Non-structural steel and architectural metalwork e.g. railings, grates, gates, staircases
- Conduits
For approval or certificate information, please see individual items.
